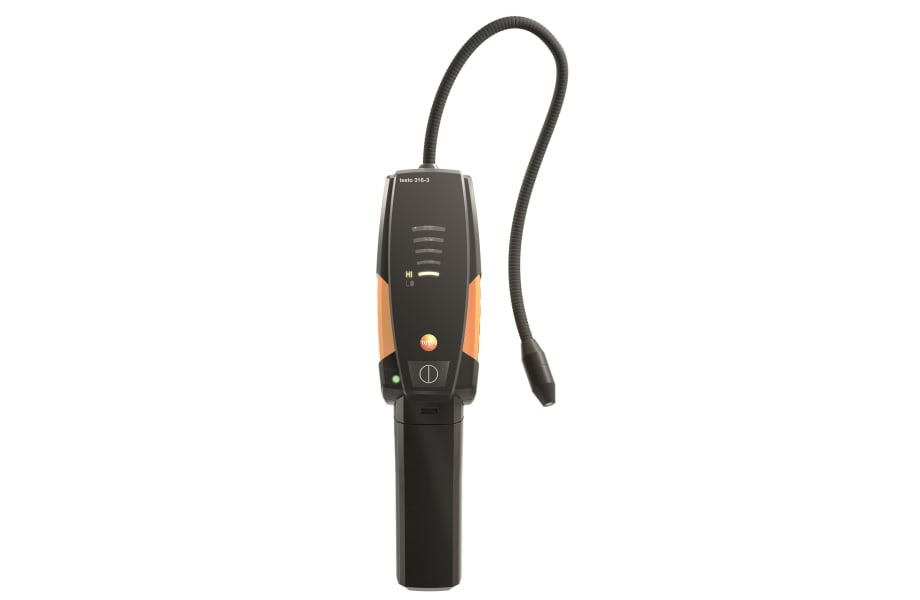

    testo 316-3 - Refrigerant leak detector

    0563 3163
  1. Can detect all the most common cooling agents: CFCs, HFCs, FCs
  2. Highly sensitive – detects even the smallest leaks
  3. Easy-to-use one-button operation
  4. Complies with specifications for F gases regulations, SAE Code J1627 and DIN EN 14624:2012 standard
  5. Leak detection in refrigeration engineering? Sure thing! The testo 316-3 refrigerant leak detector can detect all the most common cooling agents and locate even the smallest leaks. Complies with all important regulations and norms. One piece of kit you as a refrigerant technician won’t want to be without.
    The testo 316-3 refrigerant leak detector is one piece of kit that you as a refrigerant technician just won’t want to be without. The handheld leak detector can detect all the most common cooling agents. And the smallest leaks. Comes with an automatic zero setting that also enables you to locate leaks in contaminated rooms.

    testo 316-3 leak detector – benefits at a glance

    • Can detect all common cooling agents: CFCs, HFCs, FCs
    • Highly sensitive ( < 4 g/a - 1g/a according to DIN EN14624:2012 standard) - can detect even the smallest leaks
    • Ready for use – there’s no need to select cooling agent characteristics first
    • Automatic zero setting – can detect leaks in rooms that are already contaminated
    • Visual and audible alarm which are activated when a leak is detected
    • Quick and easy sensor change
    • Complies with specifications for F gases regulations, SAE norm J1627 and DIN EN 14624:2012 standard

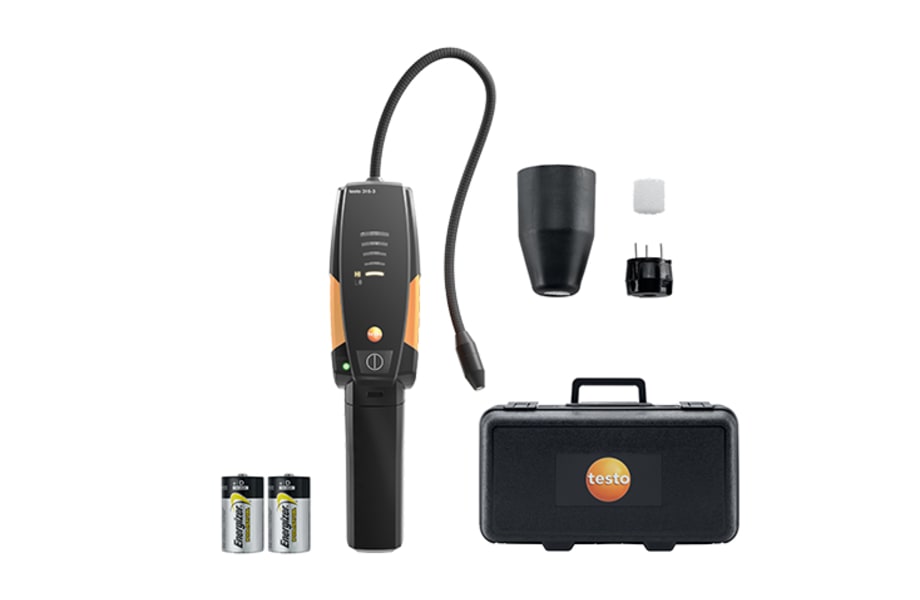

     What’s included

    testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration certificate, batteries, filter.

    testo 316-3 refrigerant leak detector for cooling agents, sensor head, carry case, calibration protocol, batteries, filter.

    General technical data

    Operating humidity
    20 to 80 %RH
    Weight
    500 g (incl. batteries)
    Dimensions
    270 x 60 x 61 mm
    Operating temperature
    -18 to +50 °C
    Product colour
    Black
    Detectable
    R22; R134a; R404A; R410A; R507; R438A; and all CFCs, HFCs, and HCFCs
    Life-time sensor
    Approx. 80 to 100 h (corresponds to approx. 1 year)
    Sensitivity
    4 g/a (0.15 oz/a)
    Standards
    EN 14624:2012; SAE J1627
    EU-/EG-guidelines
    2004/108/EG
    Battery type
    2 x D
    Battery life
    16h permanent operation
    Storage temperature
    0 to +50 °C

    Accessories

  6. Accessories
    Sensor head for the testo 316-3
      :
      0554 2610
    • Sensor change by customer

      The simple design of the testo 316-3 enables the sensor to be changed in just a few seconds and means the sensor is always ready for use.

      testo 316-3

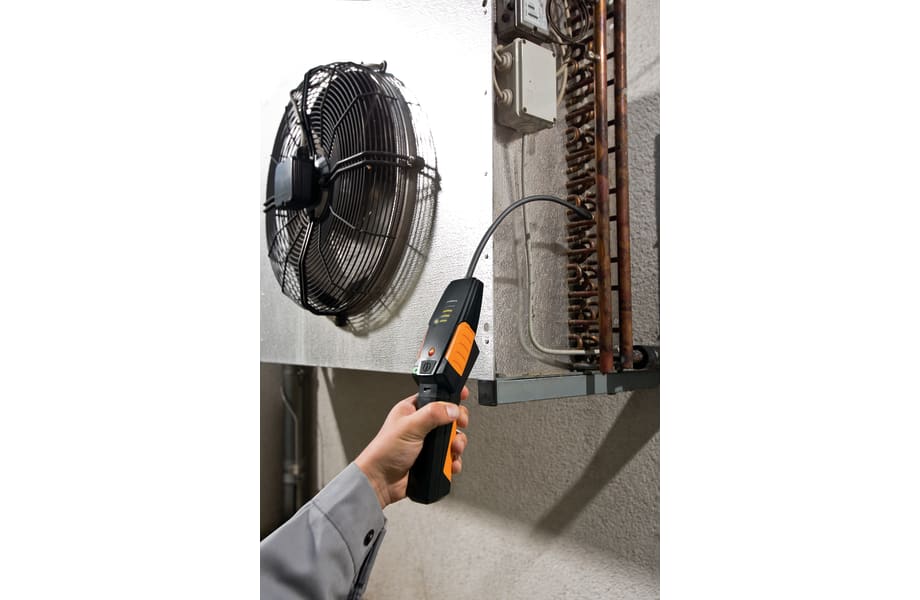

      Tightness testing of refrigeration systems

      The testo 316-3 meets all the requirements of the F gases regulation thanks to the high sensitivity of 4 g/a. This means you can find every leakage – no matter whether it involves an R22, R134a, R410a or another refrigerant.

      testo 316-3
