    testo 510i - differential pressure measuring instrument with smartphone operation

    0560 1510
    AED 572.64
  1. Measurement of gas flow and static pressure
  2. Measurement menu for pressure drop test including alerts
  3. Magnetic holder for easy attachment
    4. Handy and intelligent: the compact testo 510i differential pressure measuring instrument featuring professional measuring technology and smartphone operation for measuring differential pressure. Readings can be viewed conveniently on your smartphone/tablet via the testo Smart App and emailed directly.

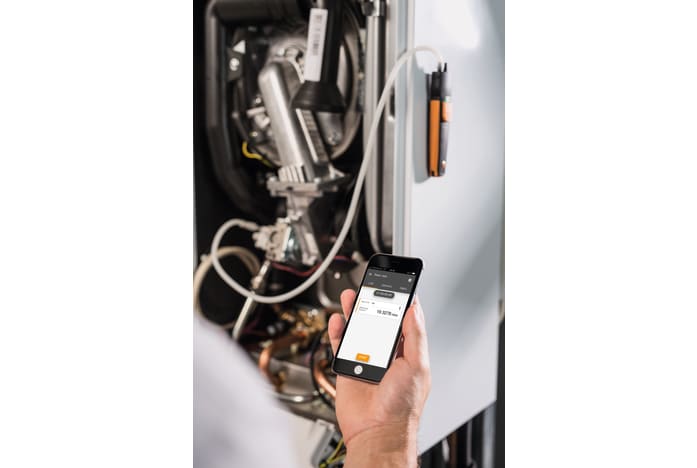

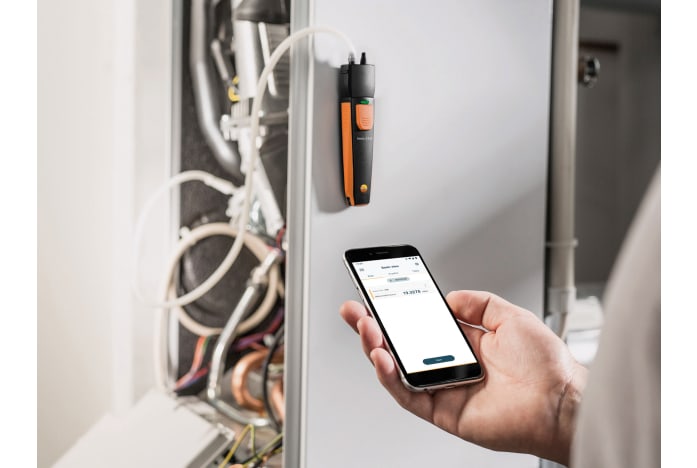

    The testo 510i differential pressure measuring instrument, used in conjunction with a smartphone or tablet, is suitable for quick and easy measurement of gas flow pressure and static pressure, as well as pressure drops on fans and filters.

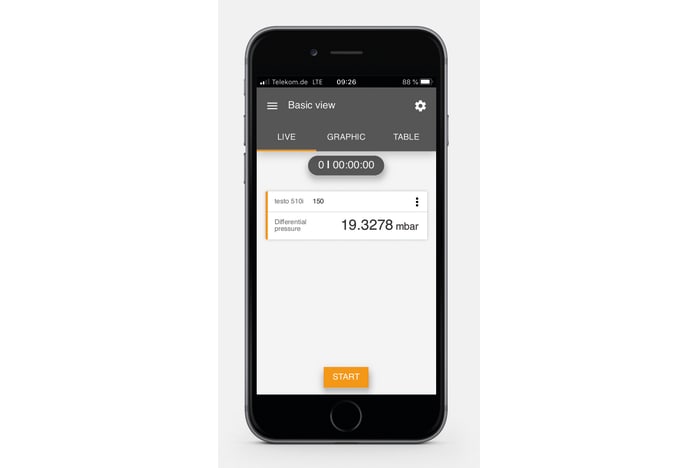

    Turn your smartphone/tablet into a measuring instrument

    Use your smartphone or tablet as a display: installed on a terminal device, the testo Smart App allows you to view testo 510i readings conveniently and carry out reliable timed and multi-point mean calculation. The App also includes a measurement menu for the pressure drop test. All measurement data can be displayed as a chart or in table form. The measurement data log can be emailed directly as a PDF or Excel file.

    System requirements:

    • iOS 11 or later
    • Android 6.0 or later
    • Bluetooth 4.0

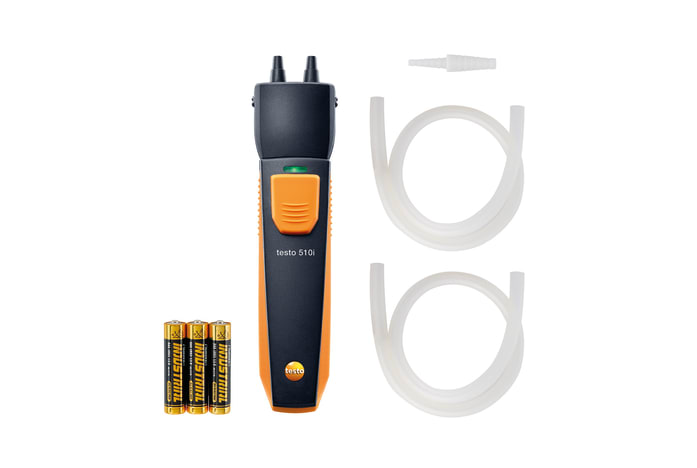

    testo 510i differential pressure measuring instrument with smartphone operation, including hose set (Ø 4 mm and 6 mm) with adapter, batteries and calibration protocol.

    Differential pressure (internal sensor) - Piezoresistive

    Measuring range
    -150 to +150 hPa
    Accuracy
    ±0.05 hPa (0 to +1 hPa)
    ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
    Resolution
    0.01 hPa

    General technical data

    Weight
    92 g
    Dimensions
    148 x 36 x 23 mm
    Operating temperature
    -20 to +50 °C
    Product-/housing material
    ABS / TPE
    System requirements
    requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
    Product colour
    black/orange
    Battery life
    150 h
    Battery type
    3 AAA micro batteries
    Storage temperature
    -20 to +60 °C
