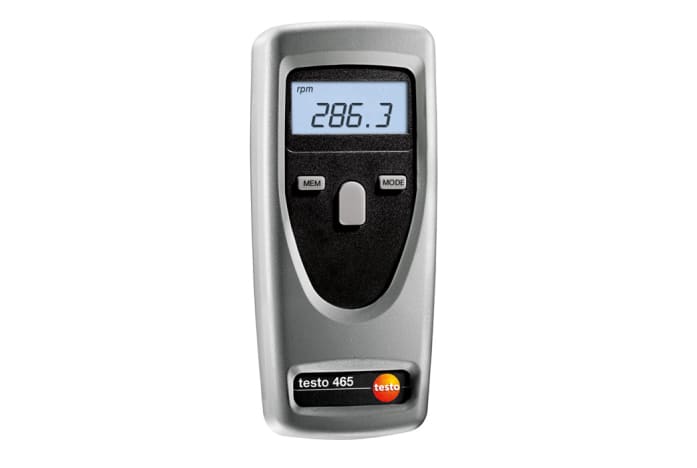

    testo 465 - Tachometer

    Product no. 0563 0465
    Your advantages
  1. Extremely easy one-handed operation
  2. Saves mean/max./min. values, as well as the last measuring value
  3. Robust tachometer – thanks in particular to the protective case (SoftCase) supplied
  4. Includes reflective markers
  5. You can use the testo 465 tachometer for quick and easy rpm measurement on rotating parts such as fans and shafts.


    Description


    With the testo 465 tachometer, you can perform non-contact rpm measurement using just one hand. This makes the tachometer suitable, for example, for measurements on rotating parts such as fans and shafts. To measure the rpm, simply stick a reflective marker on the measurement object, aim the visible red beam at the marker and measure the rpm. The distance between the tachometer and the measurement object can be up to 600 mm.

    A particularly practical feature is the option to save min./max. and mean values, as well as the last measured value. The SoftCase included in the scope of delivery is useful for protecting the tachometer. The scope of delivery also includes reflective markers and a transport case.


    Delivery Scope

    testo 465 tachometer incl. plastic transport case, SoftCase protective case, reflective markers and batteries.

    Technical data

    rpm - Optical

    Measuring range
    1 to 99999 rpm
    Accuracy
    ±0.02 % of mv
    Resolution
    0.1 rpm (100 to 999.9 rpm)
    0.01 rpm (1 to 99.99 rpm)
    1 rpm (1000 to 99999 rpm)

    General technical data

    Display type
    LCD (Liquid Crystal Display)
    Display size
    one-line

    Accessories

    Accessories

  6. Accessories
    Reflectors, self-adhesive (1 pack = 5 off, each 150 mm long)
      Product no.:
      0554 0493
      AED 129.09
    • Certificates

    • Certificates
      ISO calibration certificate/rpm
        Product no.:
        0520 0012
        Price on request
      • Certificates
        ISO calibration certificate/rpm
          Product no.:
          0520 0022
          Price on request
        • Certificates
          ISO calibration certificate/rpm
            Product no.:
            0520 0114
