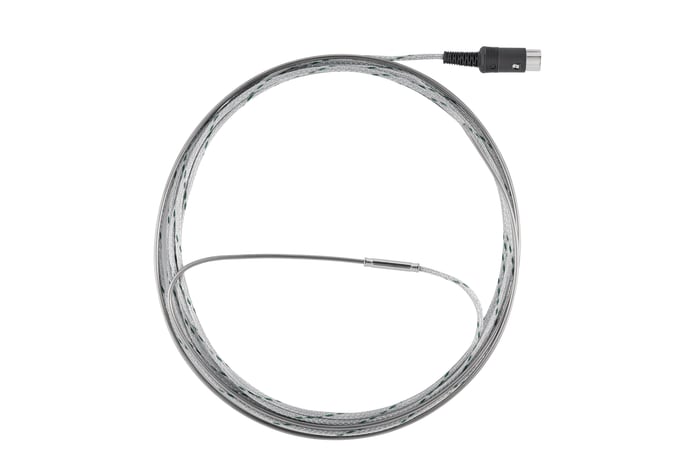

    Thermocouple type K (length 2.2 m)

    0600 7615
    AED 1,426.15
  1. Thermocouple type K
  2. Temperature measurements at sampling sites involving large diameters (> 1 m)
  3. Easy to fit the thermocouple on the industrial probe set 1200 °C and the heated industrial probe set
    4. Thermocouple (type K) for fast and easy temperature measurement.

    The 2.2m thermocouple is available as an accessory for the industrial probe set 1200 °C and the heated industrial probe set.

    It will enable you to extend your industrial probe to a total length of 2m and carry out simultaneous temperature measurement.

    Please note that the measuring range of this thermocouple is specified up to max. 1370 °C. For temperature measurements which exceed 1370 °C, we recommend a Type S thermocouple (measuring range up to 1760 °C).

    Applications

    The 2.2m thermocouple – in combination with the appropriate industrial probe and measuring instrument – is ideal for the following applications:

    • Measuring the furnace atmosphere
    • Emissions measurement for efficiency monitoring / commissioning industrial plants
    • Emissions measurements for the prior checking of limit values
    • Emissions measurements for checking flue gas cleaning systems
    • Emissions measurement to monitor prescribed limit values

    1 x thermocouple type K (length 2.2 m).

  4. Industrial probe set heated

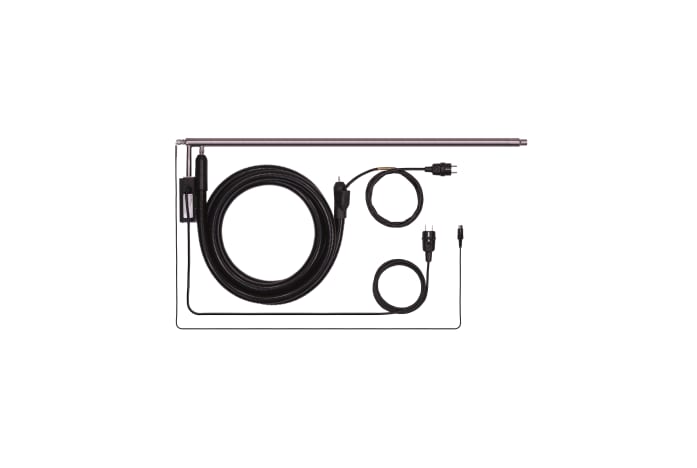

    Heated industrial probe set
      :
      0600 7630
      AED 21,546.55
    • 0600-7610

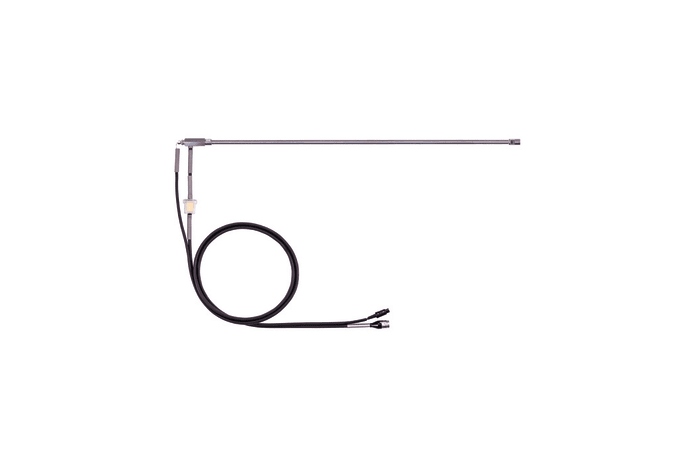

      Industrial probe kit 1200°C
        :
        0600 7610
        AED 5,120.11
      • SO2 low kit heated
        SO2 low kit heated
          :
          0563 2251

          • General technical data

          Weight
          99 g
          Product-/housing material
          Metal housing
          Product colour
          silver
          Diameter probe shaft
          2 mm
          Cable length
          4 m
          Length probe shaft
          2.2 m
          Temperature maximum
          1,200 °C
