    testo 805i - infrared thermometer with smartphone operation

    Product no. 0560 1805
    testo 805i
    testo 805i
    Your advantages

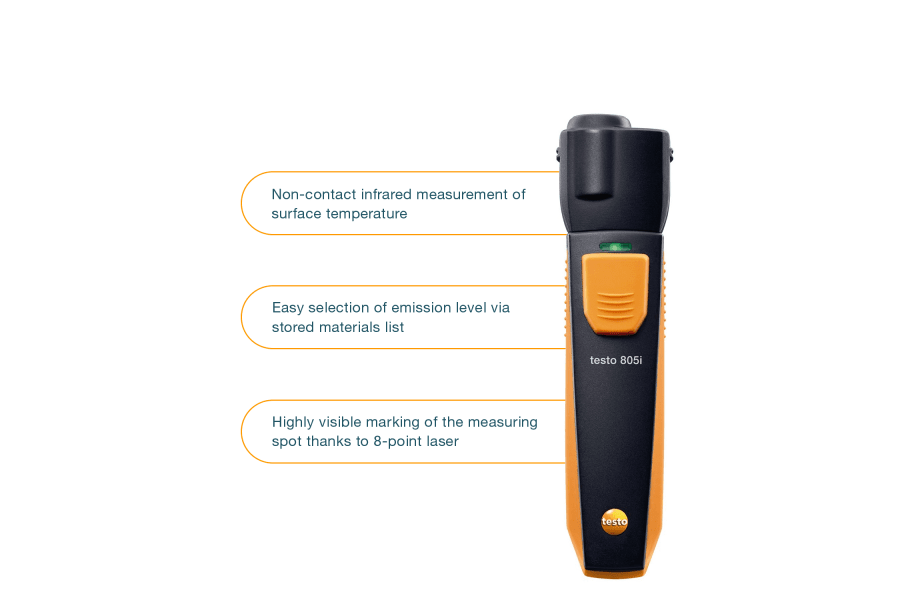

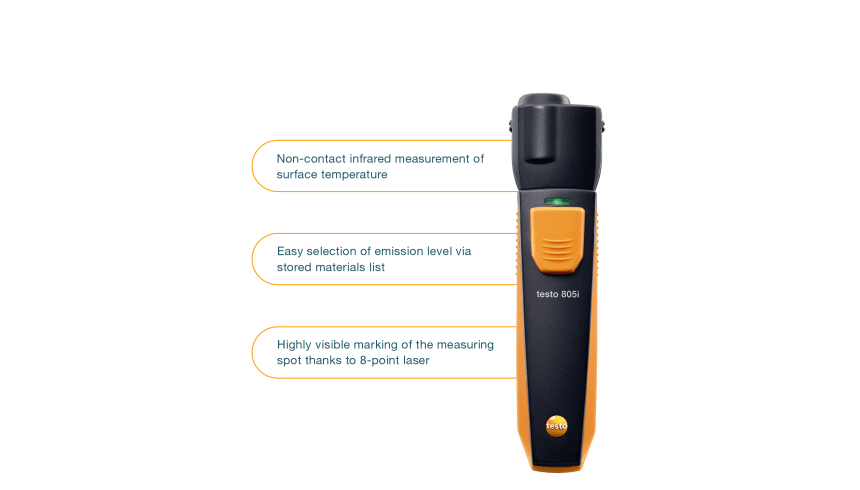

  1. Non-contact infrared measurement of surface temperature
  2. Easy selection of emission level via stored materials list
  3. Highly visible marking of the measuring spot thanks to 8-point laser
  4. Image documentation with readings and measuring spot marking

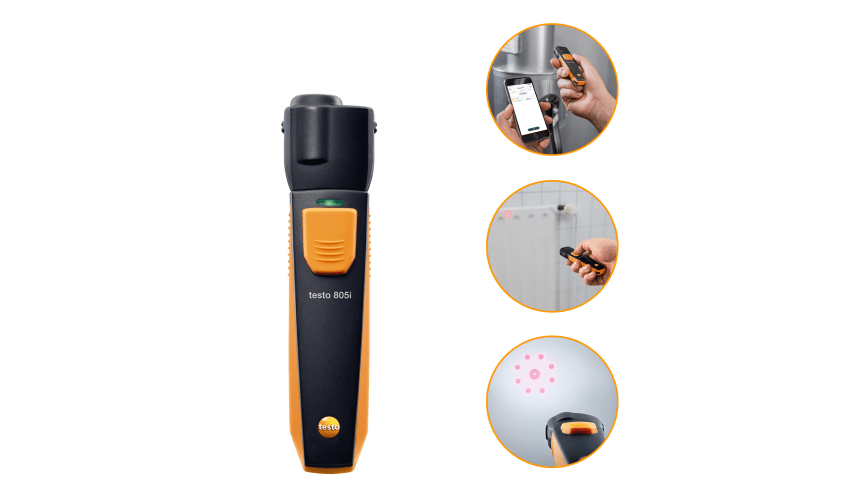

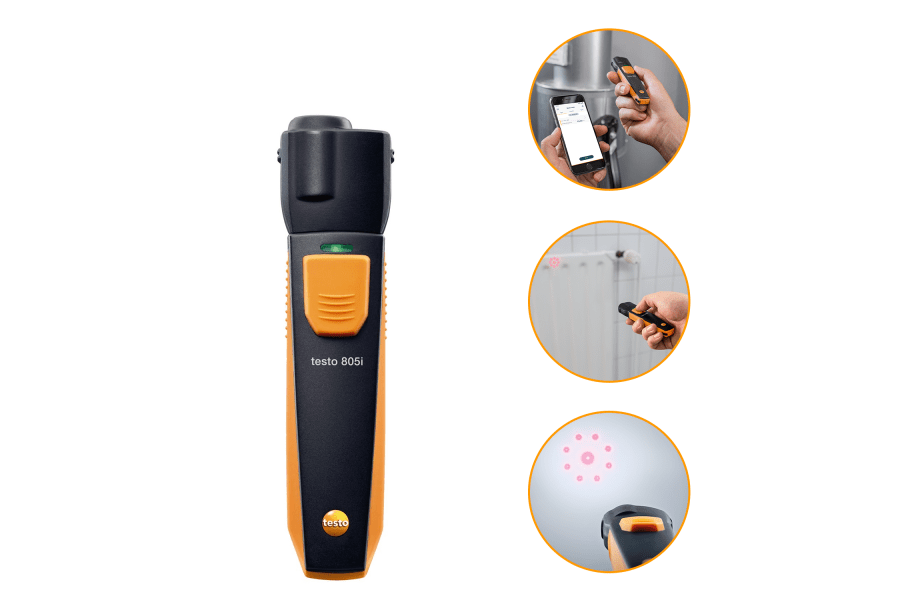

  5. Carry out non-contact and App-controlled measurement of wall temperatures, as well as fuse and component temperatures in air conditioning systems: with the professional testo 805i infrared thermometer with 8-point laser circle for highly visible measuring spot marking.

    Description

    The testo 805i infrared thermometer, in conjunction with a smartphone or tablet, functions as a compact IR thermometer for wall temperatures, as well as fuse and component temperatures in air conditioning systems. The measuring point is marked clearly with a laser circle made up of eight dots – so you always know precisely where to measure.

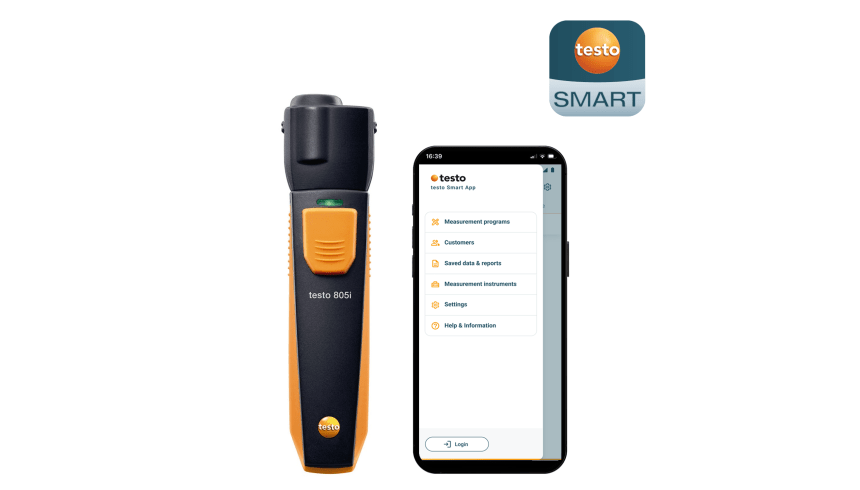

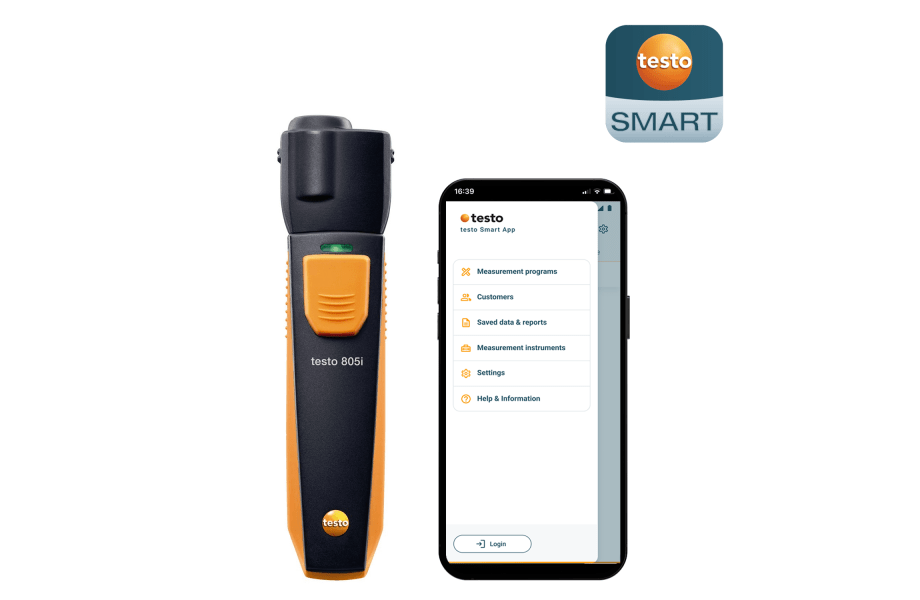

    Documentation including images via App on a smartphone/tablet

    With the testo Smart Tools App installed on a terminal device, users can view their readings conveniently. And that's not all: the App can also be used to create and document images, including temperature values and laser marking. A separate measurement menu makes it easier to detect areas that are susceptible to mould. Particularly useful: a list containing the emission levels of certain materials is already stored in the App, so there's no longer any need to waste your time looking these up in tables. All measurement data is displayed either as a chart or in table form. The measurement data log can then be emailed directly as a PDF or Excel file.

    System requirements:
    • iOS 8.3 or later
    • Android 4.3 or later
    • Bluetooth 4.0

    Delivery Scope

    testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

    Related Products

  6. testo 440 Air velocity and IAQ measuring instrument
    testo 440 - Air velocity and IAQ measuring instrument
      Product no.:
      0560 4401
      $811.00with GST $892.10
      1
    • testo 440 100 mm Vane Kit with Bluetooth®
      testo 440 100 mm Vane Kit with Bluetooth®
        Product no.:
        0563 4403
        $1 767.00with GST $1 943.70
        1
      • testo 440 16 mm Vane Kit
        testo 440 16 mm Vane Kit
          Product no.:
          0563 4401
          $1 382.00with GST $1 520.20
        • Technical data

          Temperature - Infrared

          Measuring range
          -30 to +250 °C
          Accuracy
          ±1.5 °C or ±1.5 % of mv (0 to +250 °C)
          ±2 °C (-20 to -0.1 °C)
          ±2.5 °C (-30 to -20.1 °C)
          Resolution
          0.1 °C

          General technical data

          Weight
          97 g
          Dimensions
          140 x 36 x 25 mm
          Operating temperature
          -10 to +50 °C
          Product-/housing material
          ABS / TPE
          System requirements
          requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2
          Product colour
          black/orange
          Battery life
          30 h
          Battery type
          3 AAA micro batteries
          Storage temperature
          -20 to +60 °C
