- Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance
- Monitoring and checking solar plants, including locating hotspots in solar parks (to detect defective cells)
- Detecting irregularities in large industrial plants (e.g. refineries)
- Safe high-temperature measurement
- Check measurements in electrical maintenance
- Analysis of building shells at a glance
- Carrying out detailed energy consultations
More impressive details about the testo 885 thermal imager and its compatible lenses

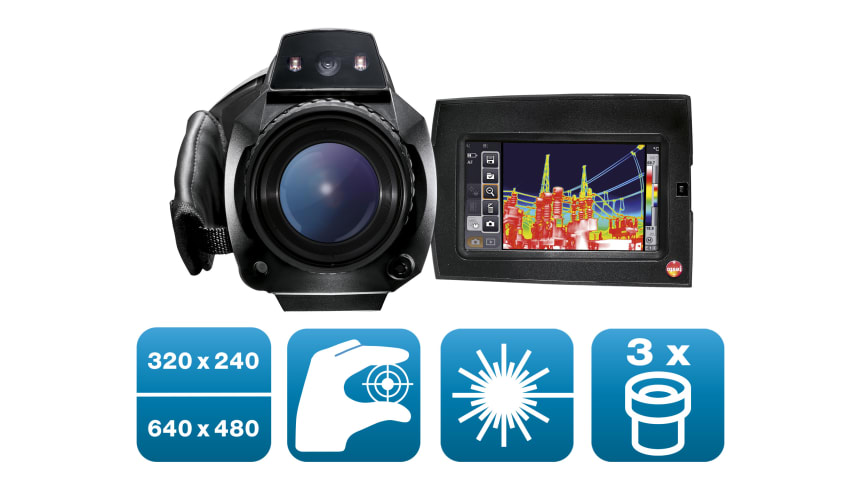

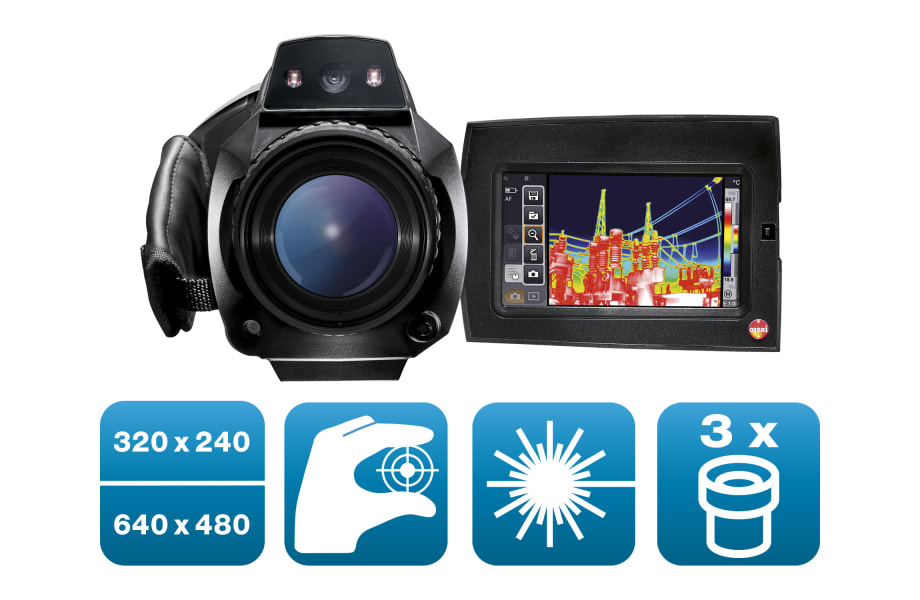

testo 885 thermal imager:- Detector size 320 x 240 pixels = 76,800 temperature measuring points, with SuperResolution technology able to boost image quality to 640 x 480 pixels
- Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the camera enables wireless measurement and easier handling at the measuring location
- Thermal sensitivity < 30 mK = so that even the smallest temperature differences can be seen
- You can also choose to save thermal images as JPEGs
- Lots of camera angles are feasible without any problem: thanks to the ergonomic rotating handle and the rotatable, fold-out display
- Panorama image assistant: straightforward recording and evaluation of the entire outer shells of buildings rather than the tedious evaluation of individual images
- SiteRecognition technology: immediate identification of similar measurement objects and automatic assignment or archiving of the thermal images
- Optional high-temperature measurement up to 1,200°C: with the high-temperature option, the measuring range can be flexibly extended up to 1,200°C
- Special measuring mode for detecting areas susceptible to mould: the dewpoint in the room is calculated by manually entering the ambient temperature and humidity. The dewpoint is then compared with the surface temperature value measured by the camera. Traffic light colours (red, yellow, green) on the display indicate the risk of mould
- The optional radio humidity probe makes things easier: automatic transmission of readings means that manual input of humidity and ambient temperature is no longer needed
- FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection
- Lens exchange possible
- Voice recording possible with headset
- Integrated digital camera with power LEDs: take real images to go with every thermal image – well-lit thanks to power LEDs. This makes assignment of the thermographic images significantly easier
- Auto-focus for one-handed operation and to prevent blurred images
- Minimum focus distance 10 cm
- Professional software testo IRSoft: allows the thermographic images to be analyzed on the PC
Lenses
In addition to the super-telephoto lens, in this kit you are free to choose two additional lenses from a total of 3 that are available:
5° x 3.7° super-telephoto lens (included in the kit):
- Small field of view (5° x 3.7°) for maximum resolution of particularly distant objects
- Easy to handle: no additional lens holder needed
- Ideal for inspecting closer measurement objects
- Large field of view
- Ideal for use in applications involving preventive maintenance
- Makes it possible to take outstanding images of measurement objects at medium and longer distances
