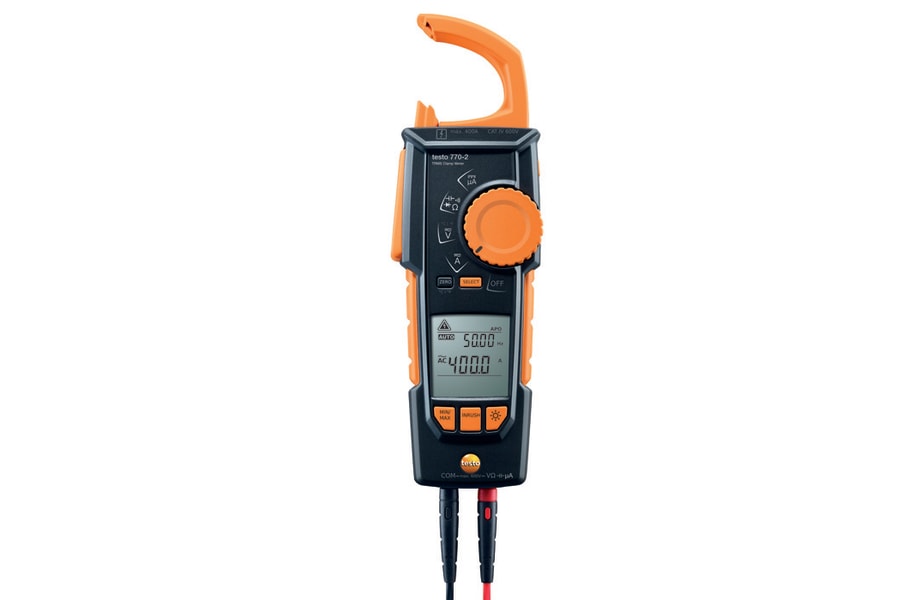

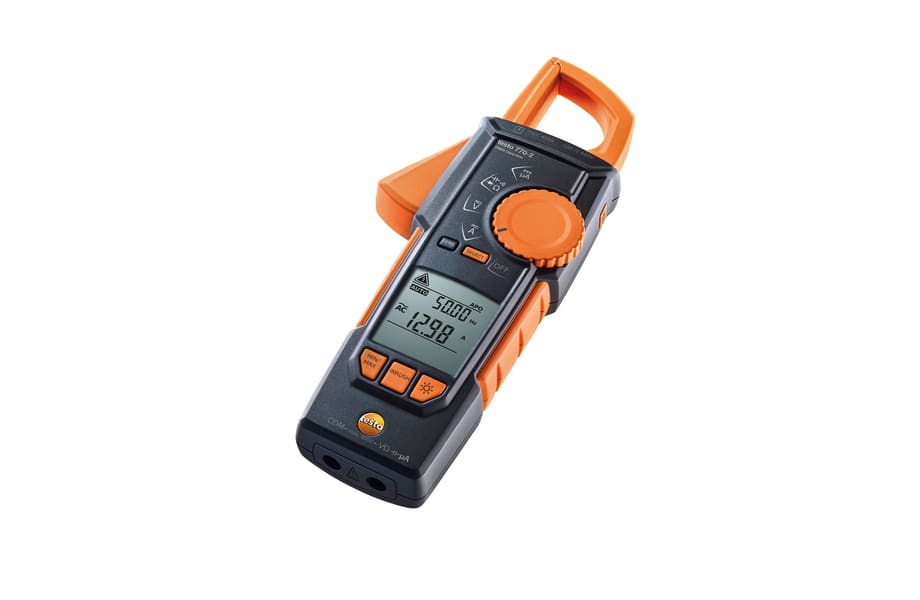

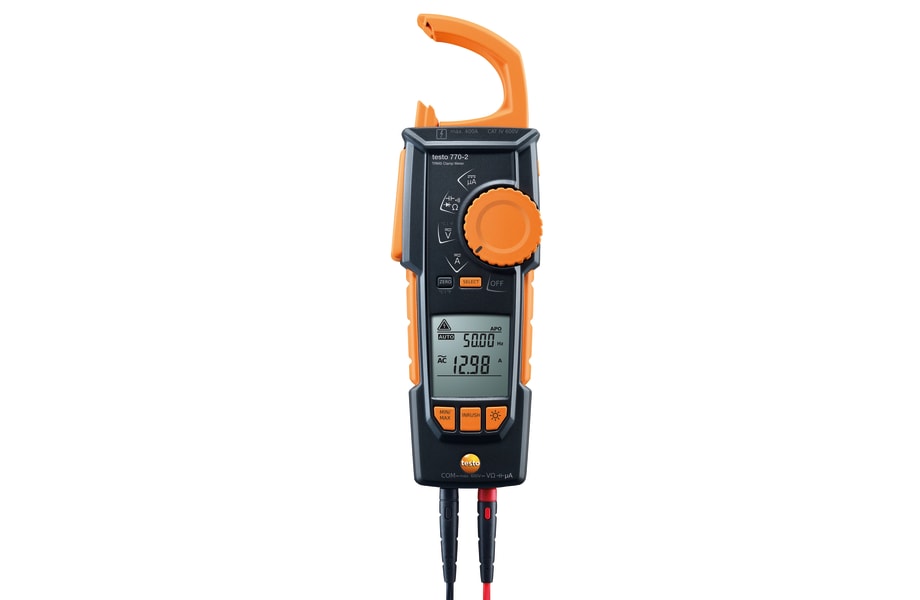

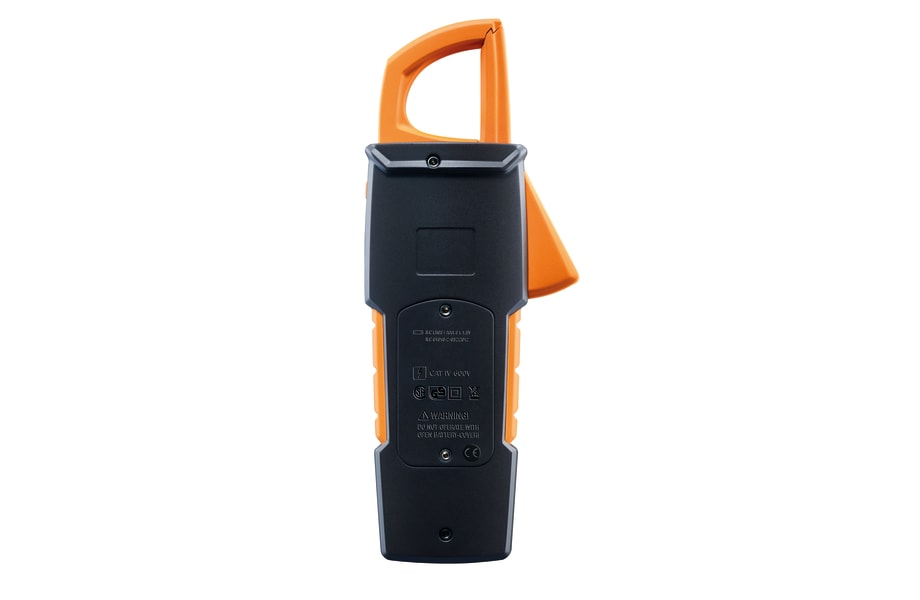

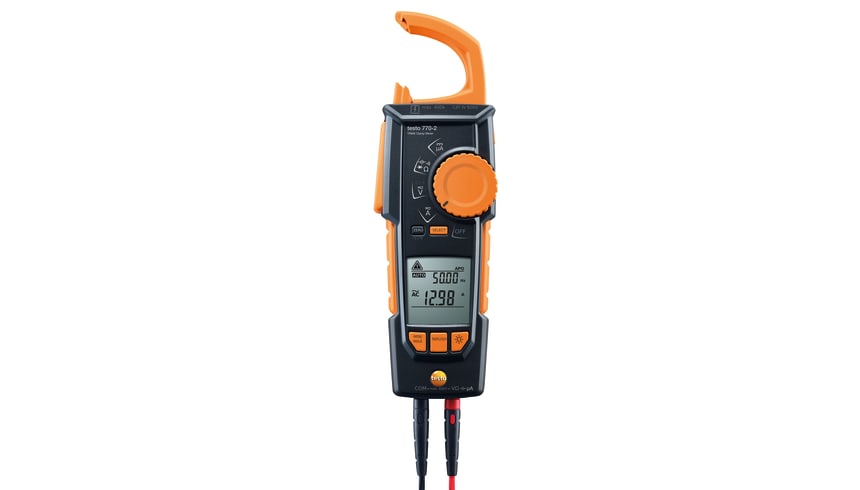

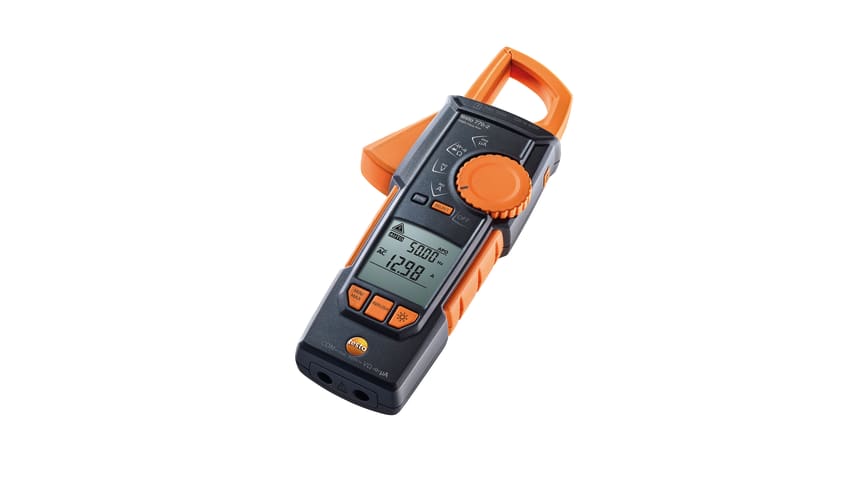

    testo 770-2 - Clamp meter

    0590 7702
  1. Fully retractable pincer arm to make your work easy
  2. Auto AC/DC and large two-line display
  3. Measuring functions for starting current on electric motors and μA measurements
  4. Temperature adapter for type K thermocouples
    5. The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range.

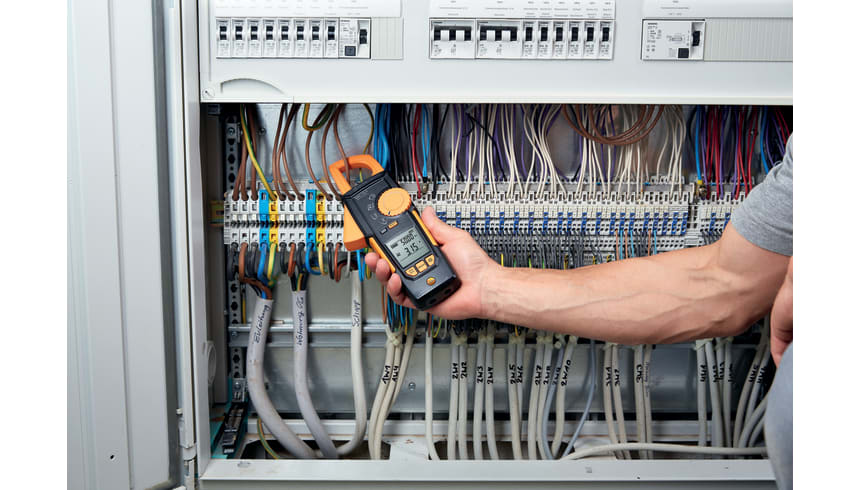

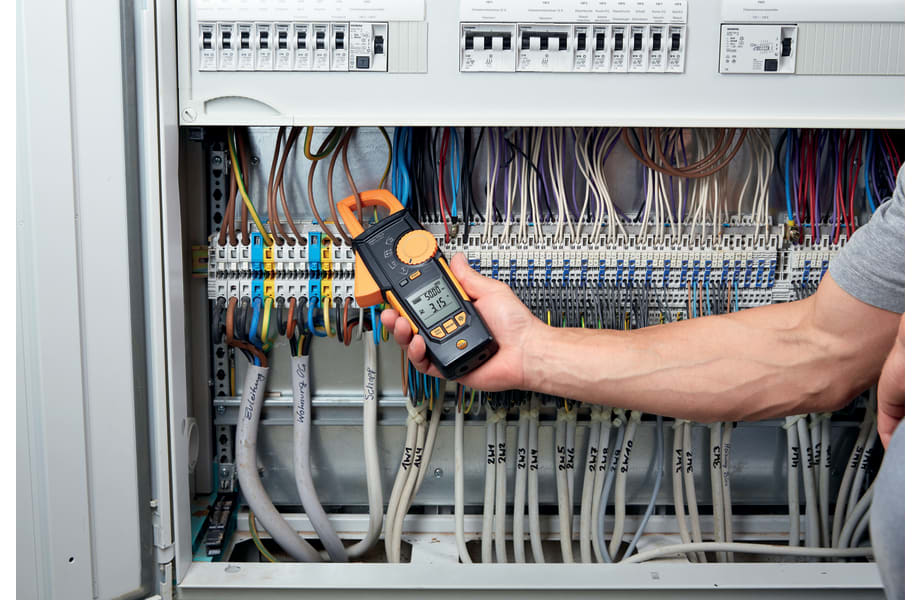

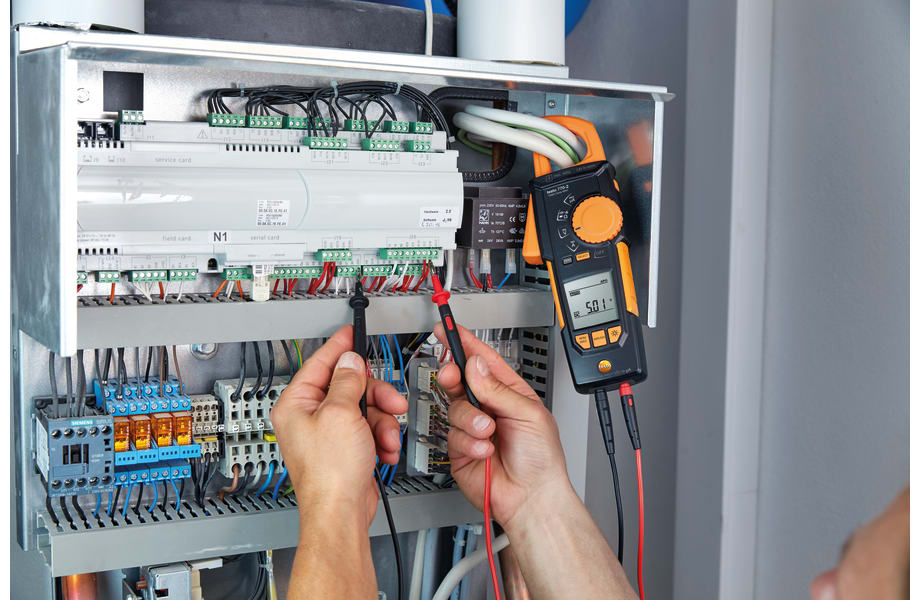

    The testo 770-2 clamp meter makes it so much easier to work on tight measuring points, such as switching cabinets. The clamp meter's movable pincer arm can be fully retracted into the instrument. This means you can accurately grab tightly packed conductors such as cables and check them for faults.

    Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the µA range. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).

    The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.

    testo 770-2 TRMS clamp meter, including batteries, 1 set of measuring cables (0590 0010), 1 x adapter for thermocouples type K, instruction manual.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -20 to +500 °C
    Accuracy
    ±1 °C (0 to +100 °C)
    Resolution
    0.2 °C

    DC voltage

    Measuring range
    1 mV to 600 V
    Resolution
    max. 1 mV
    Accuracy
    ± (0.8 % of mv + 3 Digits)

    AC voltage

    Measuring range
    1 mV to 600 V
    Resolution
    max. 1 mV
    Accuracy
    ± (1.0 % of mv + 3 Digits)

    Air probes

  5. Air probes
    Robuster Luftfühler, TE Typ K
    Robust air temperature probe (TC type K) – measuring range: -60 to +400 °C
      :
      0602 1793

      • Surface probes

    • Surface probes
      Pipe wrap probe for pipe diameter 5 to 65 mm
      Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C
        :
        0602 4592
      • Surface probes
        Clamp probe for measurements on pipes
        Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C
          :
          0602 4692
        • Surface probes
          Pipe wrap probe with velcro strip
          Temperature probe with Velcro (TC Type K)
            :
            0628 0020
          • Surface probes
            Magnetic probe (TC type K) - for surface temperatures
            Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C
              :
              0602 4792
            • Surface probes
              Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
              Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C
                :
                0602 4892
              • Surface probes
                Fast-action surface probe with sprung thermocouple strip
                Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C
                  :
                  0602 0393
                • Surface probes
                  Fast-action surface probe with sprung thermocouple strip
                  Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C
                    :
                    0602 0993
                  • Surface probes
                    Fast-reaction paddle surface probe
                    Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C
                      :
                      0602 0193
                    • Surface probes
                      Waterproof surface probe with widened measurement tip
                      Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C
                        :
                        0602 1993
                      • Surface probes
                        Efficient, waterproof surface probe with small measurement head
                        Ordertext Online de Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.
                          :
                          0602 0693

                          • Thermocouples

                        • Thermocouples
                          Thermocouple with TC adapter, flexible, 800 mm long
                          Flexible thermoelectric couple (TC type K, glass fibre) – Measuring range: -50 to +400°C
                            :
                            0602 0644

                            • Ideal for non-contact current measurement on tightly packed cables

                            • Fully retractable pincer arm, auto AC/DC, large two-line display, true root mean square (TRMS) measurement, starting current and μA measurement, temperature adapter

                            Overview of applications

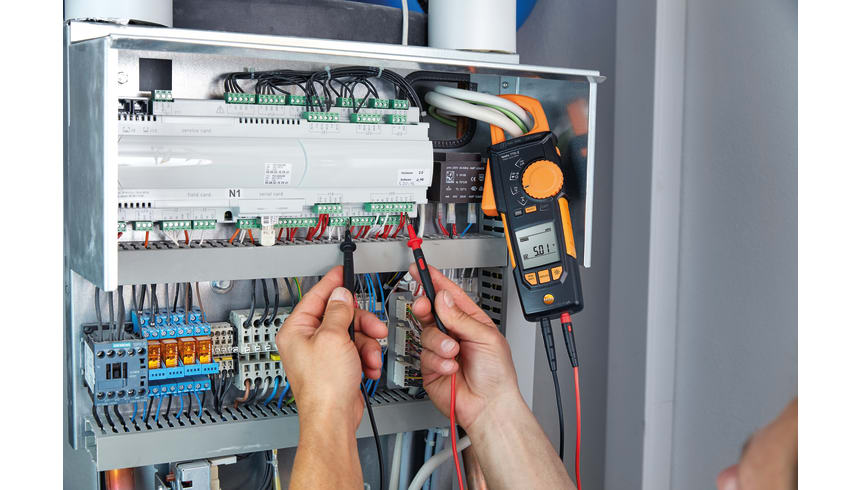

                            • Current consumption measurement, testing voltage supply in live wires, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking
