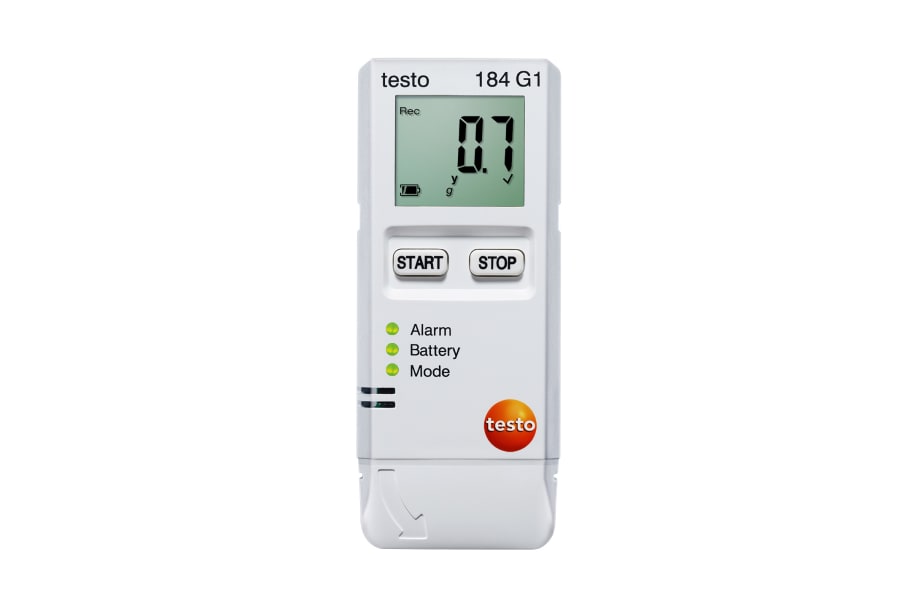

testo 184 G1 - Transport Logger for Shock-Sensitive Goods
0572 1846testo 184 G1 - Transport Logger for Shock-Sensitive Goods
0572 1846Unlimited operating time
All in one data logger: PDF measurement data, configuration file and instruction manual
Immediate creation of a PDF report directly after connection to a computer
Transport monitoring in compliance with GxP, 21 CFR Part 11 and HACCP
Transport Logger for Shock-Sensitive Goods
Easy programming and reporting without additional software (plug and play).
At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 G1: Configuration file, instruction manual and PDF report of your recorded data.
The measurement value store of the data logger testo 184 G1 for shock has a capacity of 1000 measurement values, for humidity and temperature 64000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 120 days. The temperature data logger testo 184 G1 is supplied by a standard battery which can be exchanged by the user.
testo 184 G1 is compliant with GxP, 21 CFR Part 11 and HACCP. Testo AG is an ISO 9001:2008-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.
All advantages at a glance:
1. Clear alarm indication
A glance at the display or the LEDs is enough to know whether limit values have been violated during transport.
2. Easiest operation
testo 184 G1 is intuitively operated, and can be used without special training or previous knowledge: The "Start" button begins data recording. "Stop" ends it.
3. Easiest configuration
In each testo 184 G1, a configuration file is stored, with which the configuration of the testo 184 G1 is childsplay – no download, no installation, no user interface and no additional costs.
4. Convenient readout
A PDF report with the transport data is created immediately on connection of the testo 184 G1 data logger to the USB interface of a computer. This is suitable for long-term archiving according to PDF/A standard.
5. Mobile readout/printout on site
Data transfer from the data logger to a compatible Testo fast printer (option) also functions wirelessly via NFC.
6. IT-safe
The testo 184 G1 data loggers work securely without software installation or download, so that IT problems are triggered neither by the firewall nor the virus scanner.

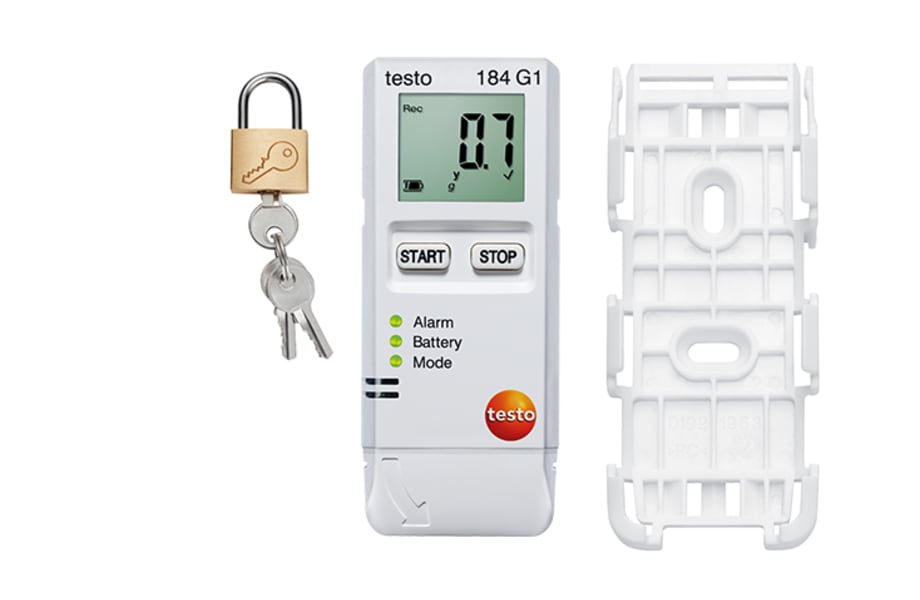

Data logger for shock, humidity and temperature testo 184 G1 for transport monitoring, battery and wall bracket.
Temperature - NTC
| Measuring range | -20 to +70 °C |
|---|---|
| Accuracy | ±0.5 °C (0 to +70 °C) ±0.8 °C (-20 to +0 °C) |
| Resolution | 0.1 °C |
| Reaction time | t90 = 30 min |
| Measuring rate | 1 min to 24 h |
Humidity - Capacitive
| Measuring range | 0 to 100 %RH |
|---|---|
| Accuracy | ±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH) ±1 %rF/year Drift ±1 %rF Hysterese ±0.03 %RH/K (at 0 to 60 °C) |
| Resolution | 0.1 %RH |
| Measuring rate | 1 min to 24 h |
Shock
| Measuring range | 0 to 27 g 0 to 265 m/s² |
|---|---|
| Accuracy | ±(0.1 g + 5 % of mv) ±1 / 1 / 1 m/s² |
| Resolution | 0.1 g 1 m/s² |
| Measuring rate | 1 s |
Certificates for humidity
Certificates for humidity
ISO calibration certificate
:
0520 0076
0520 0076
Printer and accessories
Printer and accessories
Mobile printer for data loggers
:
0572 0576
0572 0576
Rs 53,190.00
Software and Accessories
Software and Accessories
ComSoft Professional software for programming and readout of Testo data loggers and for archiving data
:
0554 1704
0554 1704
Rs 48,650.00
Software and Accessories
ComSoft 21 CFR Part 11 software – validatable software for programming and readout of Testo data loggers and for archiving data
:
0554 1705
0554 1705
Monitoring and documentation of temperature, humidity and shock in food logistics
Handling foods involves danger to human health at all levels. In order to be able to eliminate them as far as possible, food companies must comply with an HACCP concept which guarantees food safety along the entire production chain – "from farm to fork". The adherence to product-specific limit values and the uninterrupted monitoring of the cold chain are crucial. In many cases, the monitoring of humidity and shock, in addition to temperature, are relevant for the maintenance of food quality.
With the testo 184, quality managers in food logistics have six HACCP International-certified data loggers available to them, which monitor and document all critical parameters during the transport of foods. The data loggers testo 184 T1,T2, T3 and T4 have been additionally tested and certified according to EN 12830 by the TÜV Süd, and are therefore ideally suitable for the transport of refrigerated and deep-frozen foods.

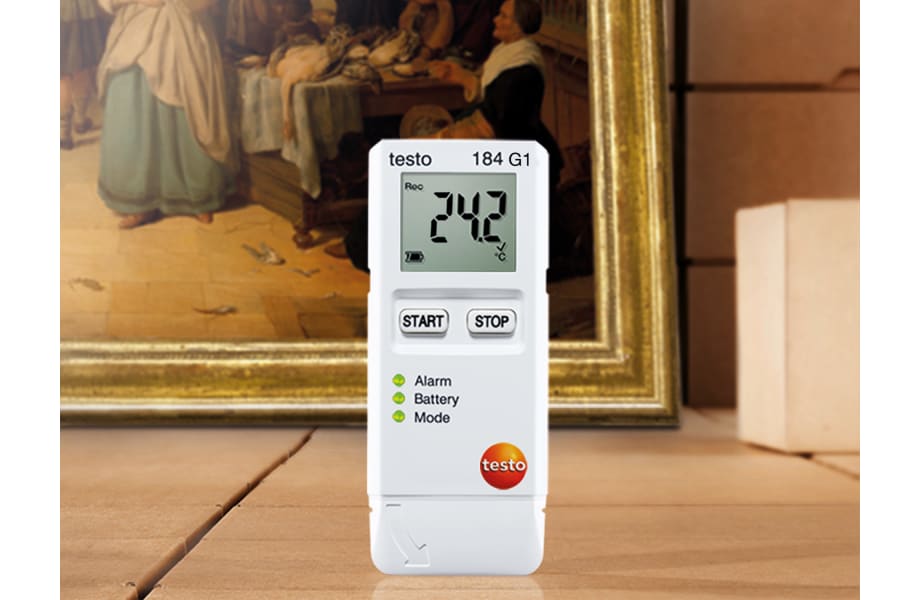

Monitoring and documentation of temperature, humidity and shock in logistic services of all kinds
Providers of logistic service often take on the responsibility for expensive and sensitive products from the fields of pharmaceuticals, food, electronics or art. The wrong conditions during transport can lead to considerable losses of quality, right up to the complete devaluation of the monitored products.
With the help of the testo 184 data logger, the prescribed temperature and humidity limit values as well as the shock tolerance levels can be monitored during transport, and thanks to the automatic report creation, very easily analyzed and documented. This allows all doubts regarding the correct transport conditions to be eliminated.
Shock-sensitive products such as electronics, delicate machinery or certain bio-pharmaceuticals can be additionally monitored for the violation of previously defined shock limits with the help of the testo 184 G1.
Monitoring and documentation of temperature, humidity and shock in pharmaceutical logistics
Most pharmaceuticals must be continuously transported and stored at defined upper and lower temperature and humidity limit values, along the entire supply chain. A violation of these predefined upper and lower limit values can lead to irreversible alterations of the active ingredients or the composition of the medicaments.
However, not only medicaments and their active ingredients are endangered. Minus temperatures or extreme temperature fluctuations can also cause damage to containers or medical instruments. The consequence is the threat of spoilage of the entire goods, financial losses and damage to reputation.
In GxP-compliant quality management, the control of the entire cold chain, from production to delivery, is therefore a prerequisite, in order not only to ensure product quality, but also to prevent financial losses and damage to your reputation in the pharmaceutical industry.
With the testo 184 data loggers, your products can be protected from unnoticed gaps in the cold chain, and the entire distribution path monitored and documented simply, securely and compliantly with all common standards, guidelines and regulations.
- Data sheet testo 184 G1(pdf, 210.79 kB)
- Brief instructions(pdf, 1.28 MB)
- Instruction manual testo 184 EN(pdf, 685.9 kB)
- testo 184 G1 Configuration(v1.16, pdf, 277.3 kB)This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
