    2. Combustion air temperature probe, immersion depth 190 mm

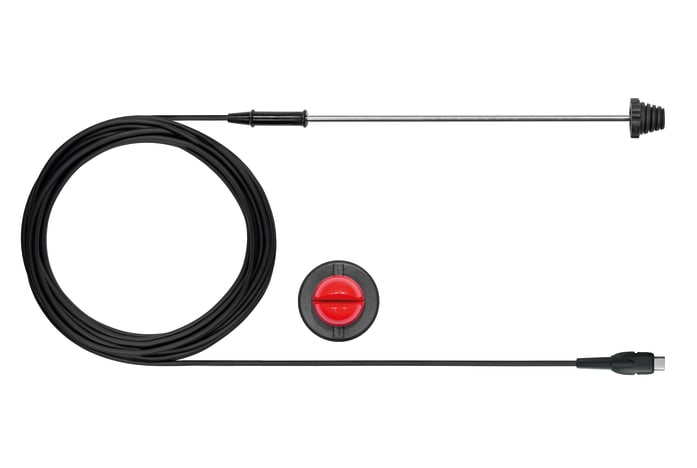

    Combustion air temperature probe

    0600 9799
  1. Flexible positioning (immersion depth 190 mm, cable length 2.2 m)
  2. Cone for attachment included
  3. Measuring range: -50 to +125 °C
  4. The probe is used for the specific measurement of combustion air temperature within the context of flue gas or particulate matter measurements.
    The combustion air temperature probe can be positioned flexibly, because it features a 190 mm long probe shaft and a 2.2 m cable. A cone for attachment is included.

    Combustion air temperature probe with 190 mm probe shaft including cone for attachment.

    Temperature

    Measuring range
    -50 to +125 °C
    Accuracy
    ±0.2 °C (-25 to +80 °C)
    ±0.4 °C (Remaining Range)
    Reaction time
    t₉₀ < 60 s

    General technical data

    Length probe shaft
    190 mm
    Cable length
    2.2 m
    Diameter probe shaft tip
    21.2 mm
    Diameter probe shaft
    4.15 mm
    Product colour
    Black
    Weight
    60 g
