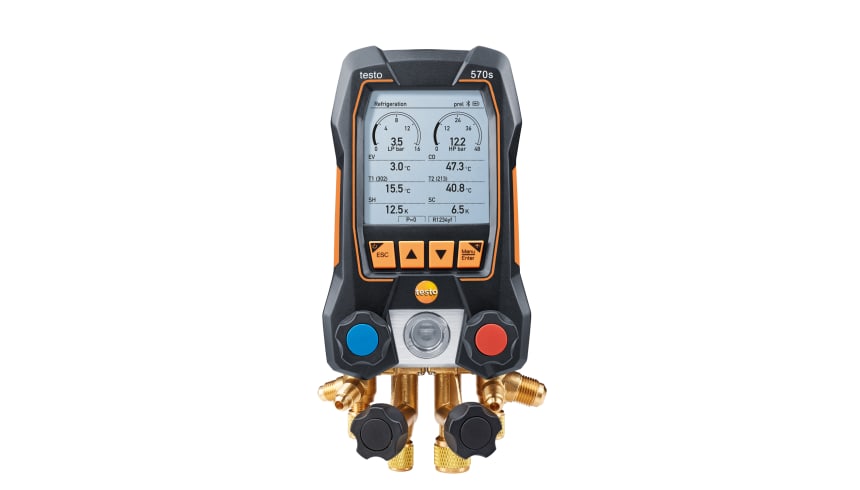

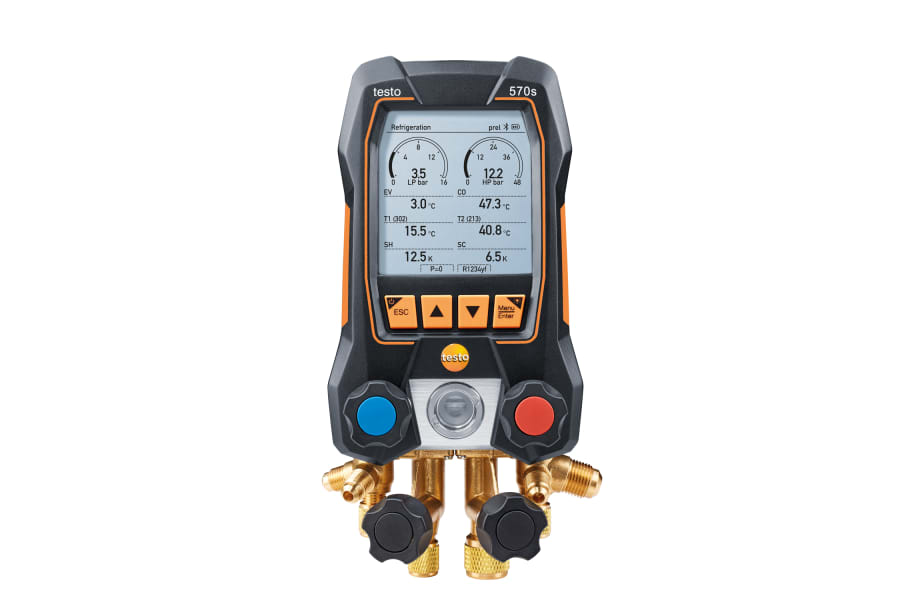

    testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

    0564 5701
  1. Long-term measurement with intelligent error analysis in the testo Smart App
  2. World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
  3. Suitable for use with A3 and A2L refrigerants
  4. Highest precision even at low pressure values due to measuring accuracy of 0.25% fs
  5. The testo 570s digital manifold with Bluetooth and 4-way valve block is the optimal solution for long-term measurements on refrigeration and air conditioning systems as well as heat pumps. Intelligent error analysis in the testo Smart App allows anomalies to be detected quickly and reliably. testo 570s boasts the world's longest runtime of up to 360 hours, a large data memory and a high degree of measuring accuracy, making it a reliable partner for both long-term and short-term measurements.

    When manually evaluating long-term measurements on refrigeration and air conditioning systems or heat pumps, anomalies often go undetected. That’s why we developed the new testo 570s digital manifold with intelligent error detection. So that no error goes unnoticed. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week.

    • Get results fast, with no tedious searching. With the intelligent error analysis feature in the testo Smart App
    • World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
    • Suitable for use with A3 and A2L refrigerants
    • Highest precision even at low pressure values due to measuring accuracy of 0.25% fs
    • Ideal for long-term measurements on refrigeration and air conditioning systems and also heat pumps, thanks to its long runtime (360 hours) and large data memory
    • View all measurement data at a glance and follow a graphical progression display on the large screen
    • Straightforward to use, with maximum flexibility for your application: Wireless measurement of temperature, vacuum, refrigerant weight and current via automatic connection of Bluetooth® probes

    • testo 570s digital 4-way manifold
    • testo Smart App (free download)
    • Calibration protocol and instruction manual

    Temperature

    Measuring range
    -50 to +150 °C
    Accuracy
    ±0.5 °C
    Resolution
    0.1 °C
    Probe connection
    2 x Plug-in (NTC)

    Pressure measurement

    Measuring range
    -1 to 60 bar
    Accuracy
    ±0.25 % fs
    Resolution
    0.01 bar
    Probe connection
    3 x 7/16" – UNF + 1 x 5/8'' – UNF
    Overload rel. (low pressure)
    65 bar
    Overload rel. (high pressure)
    65 bar

    General technical data

    Weight
    1 kg
    Dimensions
    229 x 112 x 71 mm
    Operating temperature
    -20 to +50 °C
    Protection class
    IP54
    System requirements
    requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
    Auto-off instrument
    10 min
    Battery life
    With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
    Battery type
    Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
    Radio range
    150 m
    Storage temperature
    -20 to +60 °C

    Accessories

    Accessories for measuring instrument

  6. Accessories for measuring instrument
    Valve replacement kit 0554 5570
    Valve replacement kit for two valve positioners
      :
      0554 5570
