    testo Smart Probes VAC set - with smartphone operation

    0563 0003
  1. Easy parametrization of the outlet/duct cross-section for measuring the volume flow
  2. List of multiple volume flows and calculation of the total volume flow (in the log)
  3. Identification of mould risk thanks to the combined utilization of testo 605i and testo 805i
  4. Rapid image documentation with IR temperature readings and measuring spot marking
  5. With the Testo Smart Probes VAC set, you can check air velocities, humidity, volume flows and temperatures in, on and around air conditioning systems. The robust testo Smart Case enables the measuring instruments to be conveniently transported and ensures that they are always to hand when needed.

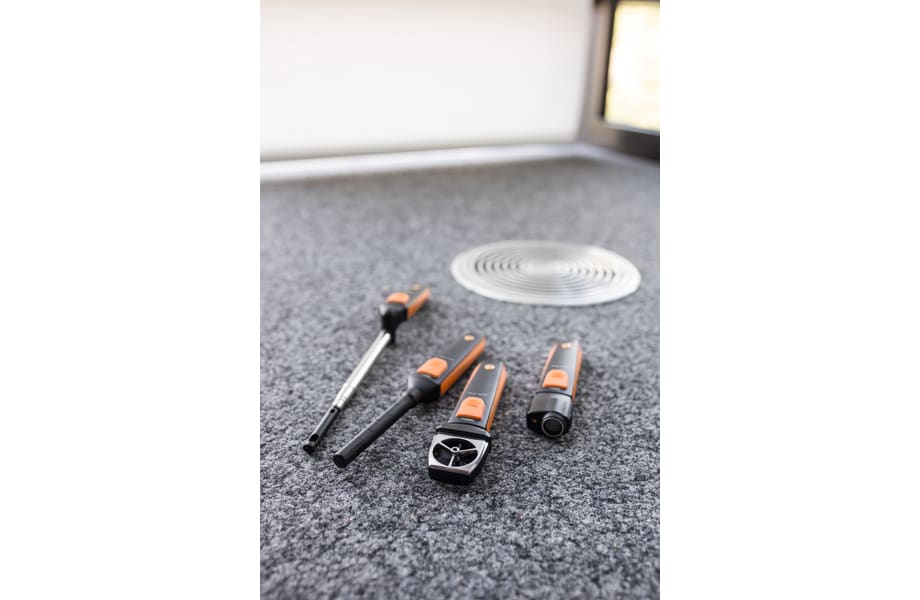

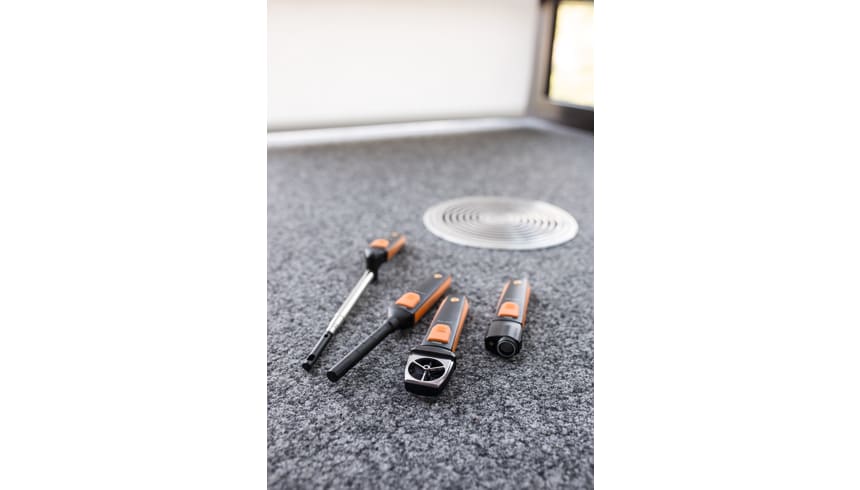

    The compact testo Smart Probes VAC set includes four measuring instruments that can be used with your smartphone/tablet for key measuring tasks carried out by VAC engineers: the testo 405i thermal anemometer. the testo 410i vane anemometer, the testo 605i thermohygrometer and the testo 805i infrared thermometer.



    Advantages of the testo Smart Probes VAC set

    The measuring instruments in the testo Smart Probes VAC set can be connected quickly and easily to your smartphone or tablet via Bluetooth. You can therefore measure air velocities, humidity, volume flows and temperatures with intuitive ease using the testo Smart Probes App. The measuring instruments are easy to transport in the handy testo Smart Case and always to hand when needed.



    Advantages and applications of the individual measuring instruments:

    testo 405i: thermal anemometer with smartphone operation
    • Measurement of air velocity, volume flow and temperature
    • Simple configuration of the dimension and geometry of the duct cross-section for measuring the volume flow
    • Telescopic tube which can be extended to 400 mm

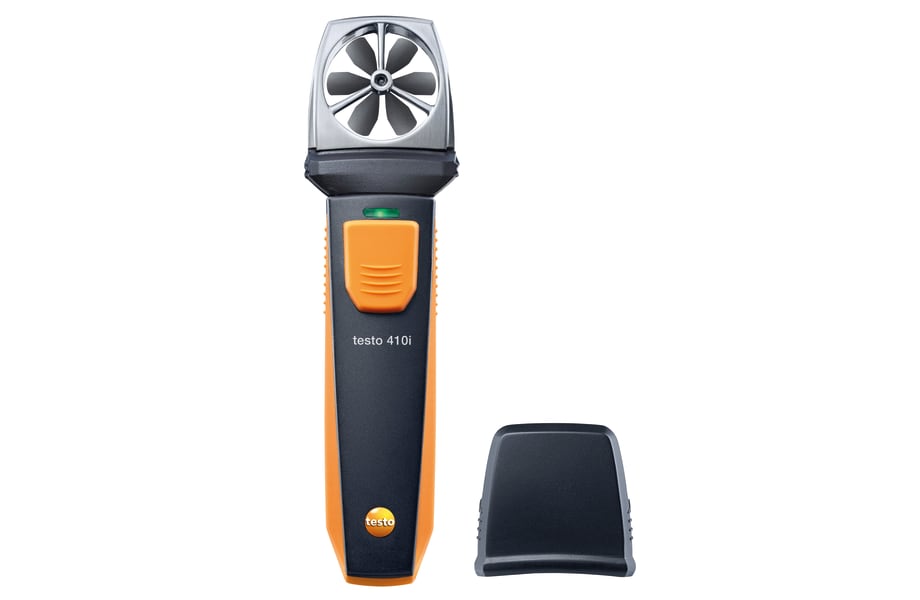

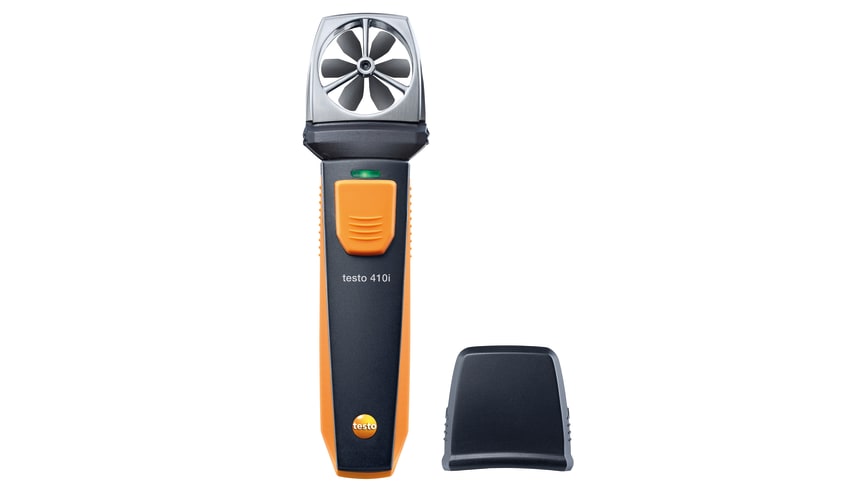

    testo 410i: vane anemometer with smartphone operation
    • Measurement of air velocity, volume flow and temperature
    • Display of the volume flow of multiple outlets in order to adjust systems
    • Easy parametrization of the outlet (dimension and geometry)

    testo 605i: Thermohygrometer with smartphone operation
    • Measurement of air humidity and temperature in rooms and ducts
    • Automatic calculation of the dew point and wet-bulb temperature

    testo 805i: infrared thermometer with smartphone operation
    • Non-contact infrared measurement of surface temperature
    • Measuring spot marking via highly visible 8-point laser circle
    • Easy selection of emission level via stored materials list
    • Image documentation with readings and measuring spot marking

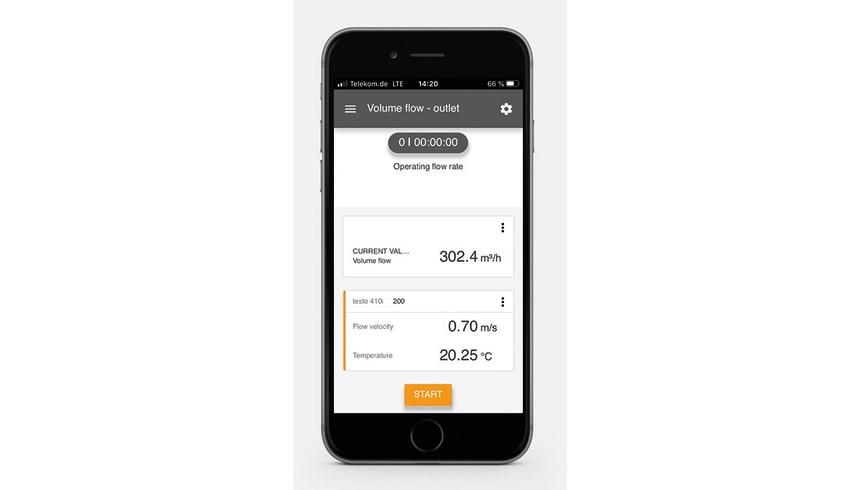

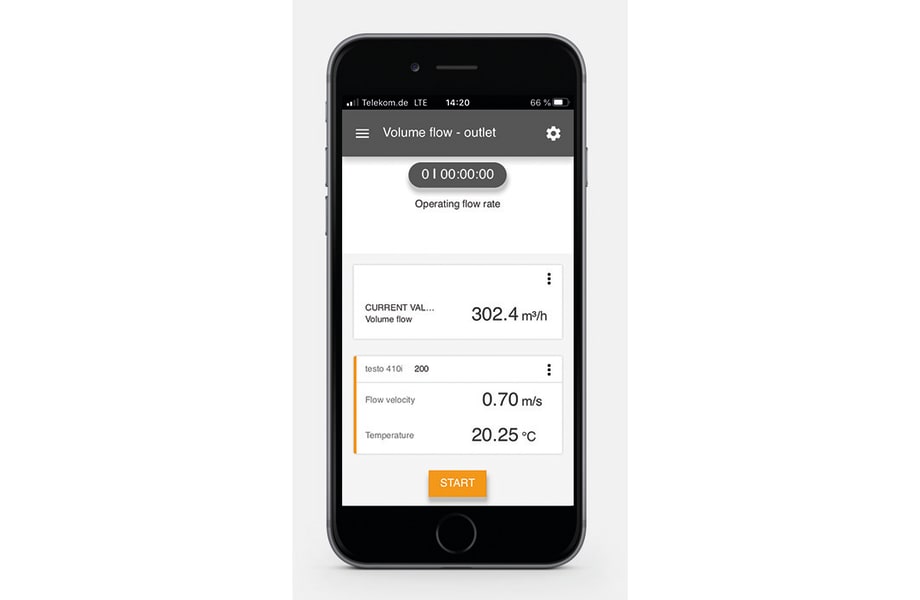

    Practical App with special functions for measurement data analysis on your smartphone or tablet

    Measurement data is transmitted wirelessly from the relevant measuring instrument to the testo Smart Probes App and can be viewed conveniently on mobile terminal devices – either as a chart or in table form. The App also offers practical functions such as timed and multi-point mean calculation, volume flow configuration, comparison of several volume flows at various outlets, automatic calculation of the dew point and wet-bulb temperature and identification of areas susceptible to mould via a clear traffic light system. The measurement data log can be emailed directly as a PDF or Excel file. This saves you time, allowing you to further increase your efficiency.

    System requirements:
    • iOS 8.3 or later
    • Android 4.3 or later
    • Bluetooth 4.0

    • testo 405i thermal anemometer with smartphone operation, including extendible (400 mm) telescope, batteries and calibration protocol.
    • testo 410i vane anemometer with smartphone operation, including protective cap, batteries and calibration protocol.
    • testo 605i thermohygrometer with smartphone operation, including batteries and calibration protocol.
    • testo 805i infrared thermometer with smartphone operation, including batteries and calibration protocol.

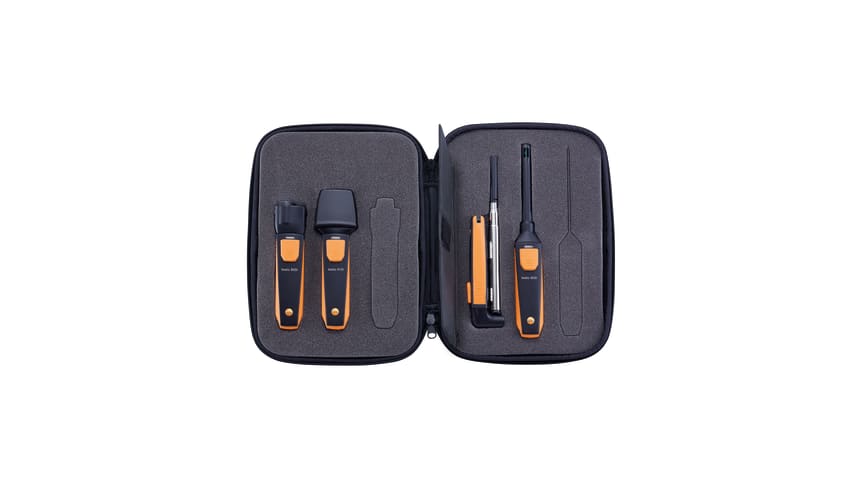

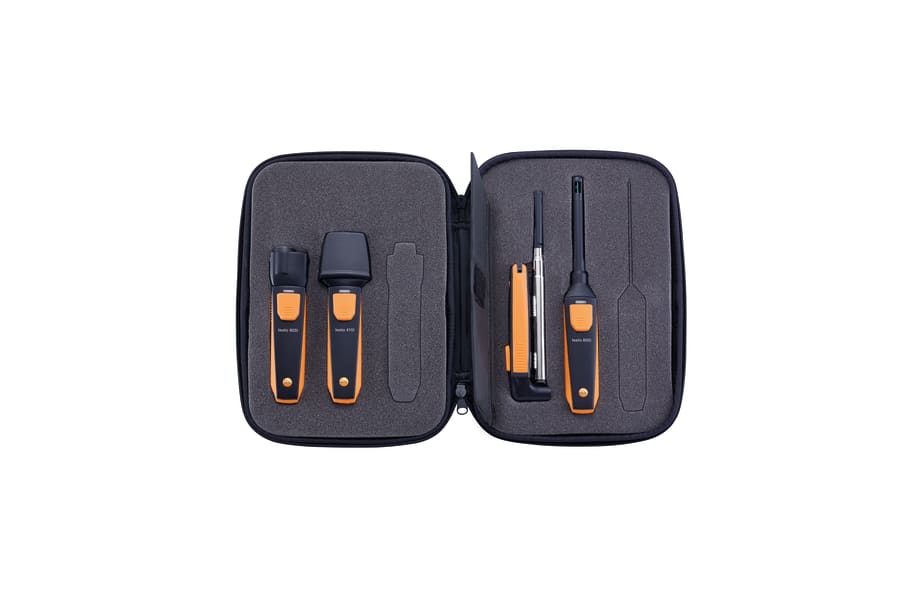

    • testo Smart Case “VAC”, including foam insert.

    General technical data

    Weight
    660 g
    Dimensions
    140 x 36 x 25 mm (testo 805i)
    243 x 30 x 24 mm (testo 605i)
    200 x 30 x 41 mm (testo 405i)
    154 x 43 x 21 mm (testo 410i)
    Operating temperature
    -10 to +50 °C (testo 805i)
    -20 to +50 °C (testo 405i + testo 410i + testo 605i)
    Product-/housing material
    Plastic
    System requirements
    requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
    Product colour
    Black
    Battery type
    3 micro batteries AAA (per Smart Probe)
    Battery life
    15 h (testo 405i), 130 h (testo 410i), 150 h (testo 605i), 30 h (testo 805i)
    Storage temperature
    -20 to +60 °C
    Diameter vane
    40 mm (testo 410i)

    Temperature - NTC

    Measuring range
    -20 to +60 °C (testo 405i + testo 410i + testo 605i)
    Accuracy
    ±0.8 °C (-20 to 0 °C) (testo 605i)
    ±0.5 °C (testo 405i + testo 410i)
    ±0.5 °C (0 to +60 °C) (testo 605i)
    Resolution
    0.1 °C (testo 405i + testo 410i + testo 605i)
