testo 300 NEXT LEVEL Longlife kit 2 - Flue gas analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

0564 3004 82

testo 300 NEXT LEVEL Longlife kit 2 - Flue gas analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

0564 3004 82

Intuitive, smart, efficient: intuitive measurement menus, fast-response Smart-Touch operation, efficient, wireless parallel measurement of up to four testo Smart Probes, practical second screen function, on-site documentation, e-mailing of reports

Including O₂, CO H₂-compensated sensor up to 30,000 ppm (NO sensor - can be retrofitted)

High-quality sensor technology with up to 6 years' service life

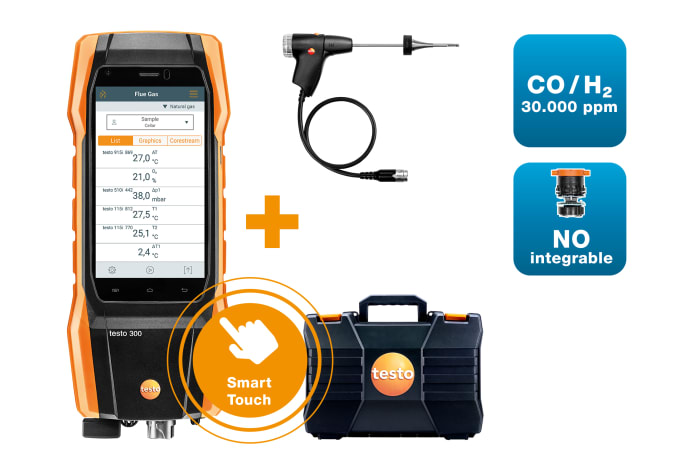

In the kit: testo 300 NEXT LEVEL Longlife flue gas analyzer, including O₂ and CO H₂-compensated sensor up to 30,000 ppm (NO - can be retrofitted), testo Bluetooth^® Connector, mains unit, modular flue gas probe, spare dirt filters, EasyHeat software, case

Carry out installation and maintenance work on heating systems several times a day using the flue gas analyzer with Longlife sensors. The TÜV-tested testo 300 NEXT LEVEL Longlife flue gas analyzer is supplied with O₂ and CO H₂-compensated sensor up to 30,000 ppm (NO - can be retrofitted), TÜV-tested modular flue gas probe, testo Bluetooth^® Connector, case and practical accessories.

Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
Register now

testo 300 NEXT LEVEL Longlife flue gas analyzer with O₂ and CO H₂-compensated sensor up to 30,000 ppm, NO - can be retrofitted (0633 3004 83)
USB mains unit, including cable (0554 1106)
Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500°C; TÜV tested and certified; 2.2 m hose (0600 9760)
testo Bluetooth^® Connector (0554 3004)
Spare dirt filters for modular flue gas probe; 10 off (0554 3385)
Free download EasyHeat PC software (0554 3332)
Instrument case (height: 130 mm) for instrument, probes and accessories (0516 3300)

: 0633 3004 83

TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

: 0600 9760

Spare dirt filters - for probe handle (10 off)

: 0554 3385

Free download: testo EasyHeat PC software

: 0554 3332

Instrument case (height: 130 mm) - for instrument, probes and accessories

: 0516 3300

USB mains unit, including cable

: 0554 1106

testo Bluetooth Connector

: 0554 3004

0633 3004 83

Temperature - TC Type K (NiCr-Ni)

Measuring range	-40 to +1200 °C
Accuracy	±0.5 % of mv (Remaining Range) ±0.5 °C (0.0 to +100.0 °C)
Resolution	1 °C (Remaining Range) 0.1 °C (-40 to +999.9 °C)

Differential Pressure - Piezoresistive

Measuring range	-100 to +200 hPa
Accuracy	±1 % of mv (+50.1 to +100.0 hPa) ±0.5 hPa (0 to +50.0 hPa) ±1.5 % of mv (+100.1 to +200 hPa)
Resolution	0.01 hPa

Flue gas O₂

Measuring range	0 to 21 Vol.%
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%

Flue gas COlow (with H₂-compensation)

Measuring range	0 to 500 ppm
Accuracy	±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range
Resolution	0.1 ppm

CO determination (with H₂-compensation), automatic dilution

Measuring range	0 to 30000 ppm
Accuracy	±100 ppm or ±10 % of mv
Resolution	1 ppm

Flue gas NO

Measuring range	0 to 3000 ppm
Accuracy	±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm)
Resolution	1 ppm

Flue gas Nolow

Measuring range	0 to 300 ppm
Accuracy	±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm

Differential Pressure flue gas Draught - Piezoresistive

Measuring range	-9.99 to +40 hPa
Accuracy	±0.02 hPa (0.1 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40 hPa) ±0.005 hPa (0 to 0.1 hPa)
Resolution	0.001 hPa (0 to 0.1 hPa) 0.01 hPa (Remaining Range)

Flue gas degree of effectivity, Eta (calculated)

Measuring range	0 to 120 %
Resolution	0.1 %

Flue gas loss (calculated)

Measuring range	0 to 99.9 %
Resolution	0.1 %

Flue gas CO₂ calculation (calculated from O₂)

Measuring range	Display range 0 to CO₂ max
Accuracy	±0.2 Vol.%
Resolution	0.1 Vol.%

Ambient CO

Measuring range	0 to 2000 ppm
Accuracy	±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm)
Resolution	1 ppm

Differential Pressure 4 Pa measurement - Piezoresistive

Measuring range	-50 to +50 Pa
Accuracy	±0.3 Pa (< 10 Pa) ±3 % of mv (Remaining Range)
Resolution	0.1 Pa

General technical data

Operating humidity	15 to 90 %RH non-condensing
Weight	approximately 800 g
Dimensions	244 (including probe connection) x 98 x 59 mm (LxWxH)
Operating temperature	-5 to +45 °C
Protection class	IP40
Product colour	black/orange
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable battery, USB mains unit
Warranty conditions	https://www.testo.com/guarantee
Authorizations	TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3
Guarantee	Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months
Memory	1,000,000 measuring values
Battery life	10 h
Storage battery type	Lithium ion battery
Storage temperature	-20 to +50 °C
Charging temperature	0 to +45 °C

TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

0600 9760

General technical data

Diameter probe shaft	8 mm
Cable length	2.2 m
Length probe shaft	180 mm
Product colour	Black
Temperature maximum	500 °C
Diameter	6 mm
Weight	524 g

Spare dirt filters - for probe handle (10 off)

0554 3385

General technical data

Weight	12 g
Dimensions	height: 2.9 mm, ø: 29.7 mm
Product colour	white

Free download: testo EasyHeat PC software

0554 3332

General technical data

System requirements	Windows® 7; Windows® 8; Windows® 10

Instrument case (height: 130 mm) - for instrument, probes and accessories

0516 3300

General technical data

Weight	3880 g
Dimensions	520 x 400 x 130 mm (LxWxH)
Product-/housing material	Plastic
Product colour	Black

USB mains unit, including cable

0554 1106

General technical data

Weight	144 g
Dimensions	85 x 55 x 90 mm LxWxH
Product colour	Black
Cable length	2 m
Power supply	230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea

testo Bluetooth Connector

0554 3004

General technical data

Battery life	None, operated via testo 300
Connection	TUC 1 or TUC 2
Radio range	100 m
compatible with	testo 510i, testo 115i, testo 915i

CO probes

CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm

:
0632 1272

Flue gas probes

TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

:
0600 9760

Flue gas probes

TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system

:
0600 9761

Flue gas probes

Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9762

Flue gas probes

Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system

:
0600 9763

Flue gas probes

Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter

:
0600 9740

Flue gas probes

Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C

:
0600 9741

Further probes

Dual wall clearance probe for O2 supply air measurement

:
0632 1260

Further probes

Solid fuel kit - including probe shaft and adapter

:
0600 9765

Temperature probes

Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C

:
0600 9799

Sets

testo 300 NEXT LEVEL Longlife kit 2: Flue gas analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

:
0564 3004 82

Sets

testo 300 NEXT LEVEL Longlife kit 2 with printer: Flue gas analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

:
0564 3004 89

Sets

testo 300 NEXT LEVEL Longlife kit 2 with printer: Flue gas analyzer (O₂, CO H₂-compensated up to 30,000 ppm, NO - can be retrofitted)

:
0564 3004 83

Accessories

Smoke tester with oil, soot sheet, for measuring soot in flu...

Smoke tester with oil and soot sheet, for measuring soot in flue gas

:
0554 0307

Accessories

Free download: testo EasyHeat PC software

:
0554 3332

Accessories

Instrument case (height: 130 mm) - for instrument, probes and accessories

:
0516 3300

Accessories

Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320

:
0554 1203

Accessories

Pressure set for testing gas line testo 330-1/-2 LL version 2010

:
0554 1213

Accessories

USB mains unit, including cable

:
0554 1106

Accessories

testo 318 - Endoscope

:
0563 3185

Measurement cells

CO sensor (without H₂ compensation) with 4-year warranty

:
0393 0051

Measurement cells

CO sensor, (H₂-compensated) with 4-year warranty

:
0393 0101

Measurement cells

NO sensor

:
0393 0151

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

high-quality Longlife sensors with a service life of up to 6 years, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*, integrated 4 Pa measurement for combustion equipment

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

Product brochure testo 300(pdf, 9.16 MB)
Data sheet testo 300(pdf, 3.28 MB)
Data sheet testo Bluetooth Connector(pdf, 2.32 MB)

EU declaration of conformity testo 300 Longlife(pdf, 34.43 kB)
Instruction manual testo 300(pdf, 3.42 MB)
Approval and Certification testo 300(pdf, 223.68 kB)
Testo Information Safety. Environment. Cleaning. Storage(pdf, 178.65 kB)
EU declaration of conformity testo Bluetooth Connector(pdf, 53.23 kB)

Testo ZIV driver for testo 300, testo 320 and testo 330(v2.3, 64.11 MB)
The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
Firmware / App testo 300(v1.10.8125, BTG 0.3.8, App 12.7.22.17649, 43.94 MB)
testo usb driver - for various measuring instruments(v2.9.1, 2.02 MB)
USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845
Instruction manual EasyHeat software(pdf, 3.55 MB)
