    Starter set testo 206-pH2 - pH/temperature measuring instrument for semi-solid media

    0563 2066
  1. Ideal for measuring the pH value of semi-solid media, viscous and protein-containing foodstuffs (eg. processed cheese, fruit) and water-mixed solid cooling lubricants
  2. Temperature measurements with integrated temperature sensor possible
  3. Maintenance-free gel electrolyte
  4. The set contains essential accessories, which you will always have to hand: calibration dosing bottles, TopSafe protective case, aluminium case, etc.
  5. All in one package: with the testo 206-pH2 starter set, you will be ideally equipped to measure the pH and temperature in semi-solid media – set includes pH/temperature measuring instrument, calibration dosing bottles, TopSafe protective case, aluminium case plus other accessories.
    The cosmetics industry, the food industry, the metal industry: the testo 206-pH2 pH/temperature measuring instrument can be used virtually anywhere. That’s because it’s ideally suited for measuring the pH value of semi-solid media like, for example:

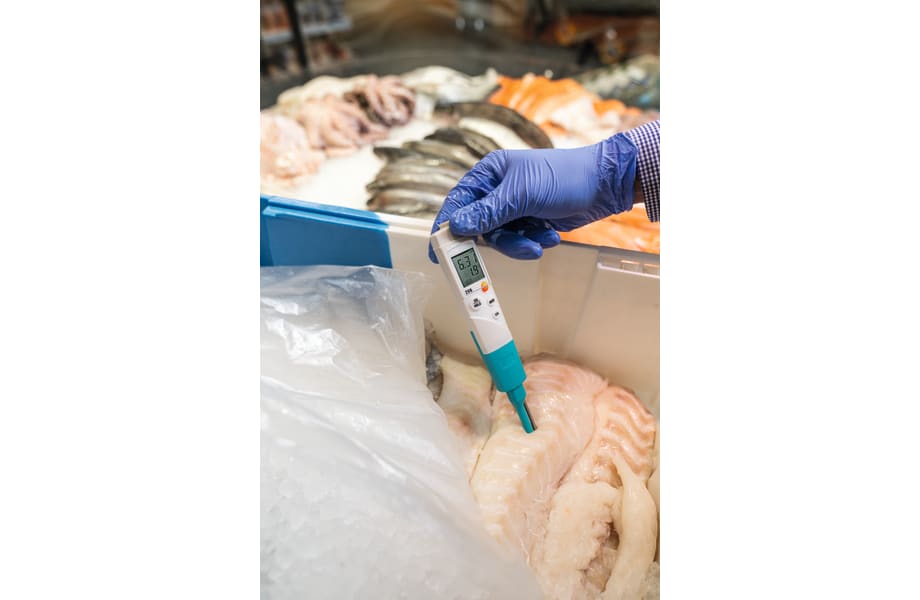

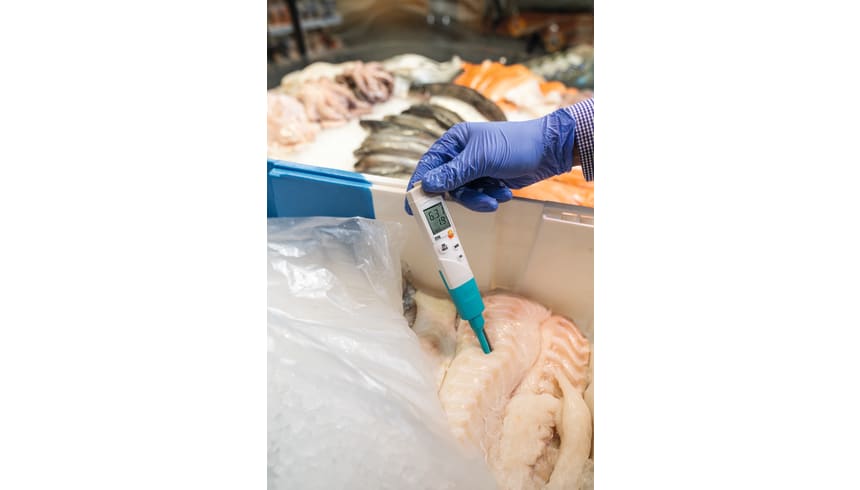

    • Viscous and protein-containing foodstuffs like jelly, cheese, fruit etc.
    • Liquid and soft or paste-like materials like creams and oils
    • Water-mixed solid cooling lubricants

    Clever measuring technology: the testo 206-pH2 starter set for pH/temperature measurement

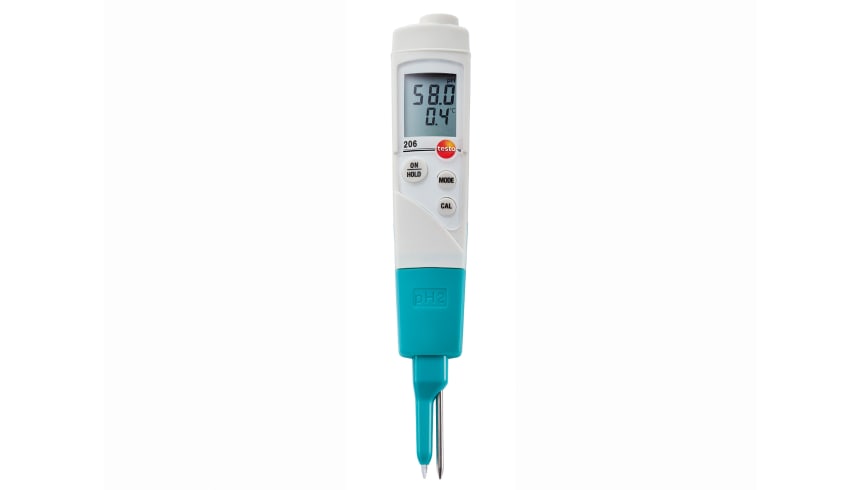

    The testo 206-pH2 pH/temperature measuring instrument is equipped with a pH immersion tip and an integrated temperature sensor which allow you to carry out quick and reliable pH measurements and accurate core temperature measurements simultaneously.
    Thanks to the full-size gel electrolyte volume and annular clearance, the pH sensor is not only leakproof and maintenance-free, but also extremely durable and insensitive to dirt.

    Calibration dosing bottles: Our DAkkS-certified calibration solutions are suitable for calibrating the pH probe. The pH probe is calibrated in the integrated dosing aperture of the calibration dosing bottle. This guarantees economical use of the calibration solution.
    The automatic final value recognition function supports you throughout your measurements.

    Hygienic and rugged

    The testo 206-pH2 pH/temperature measuring instrument comes with a TopSafe protective case which gives it its IP68 rating: the hygienic, dishwasher safe case protects the instrument against dirt, water and impact.
    The aluminium case protects your pH/temperature measuring instrument during transport and storage.

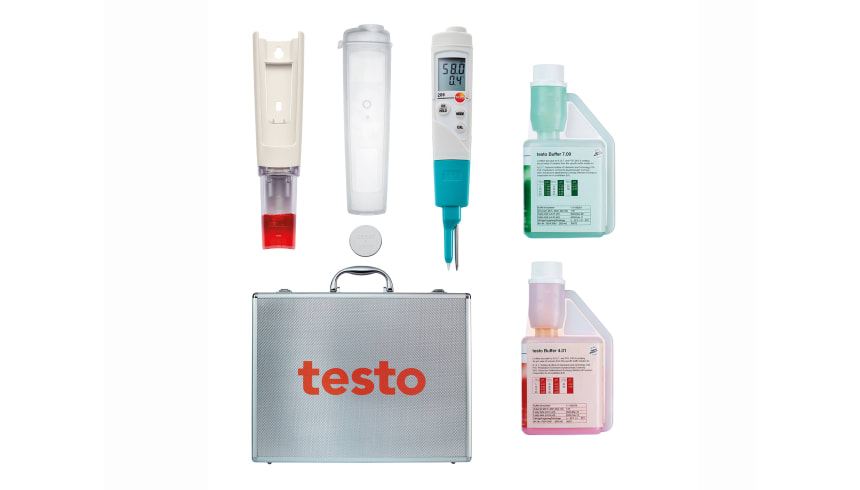

    Starter set testo 206-pH2 pH/temperature measuring instrument, pH2 probe head for semi-solid substances, incl. storage cap with gel, calibration dosing bottles 250 ml pH 4 and 7, TopSafe, belt/wall holder and aluminium case.

    Temperature - NTC

    Measuring range
    0 to +60 °C (Short-term to +80 °C max. 5 min)
    Accuracy
    ±0.4 °C
    Resolution
    0.1 °C

    pH - Electrode

    Measuring range
    0 to 14 pH
    Accuracy
    ±0.02 pH
    Resolution
    0.01 pH

    General technical data

    Weight
    115 g (with TopSafe)
    65 g (without TopSafe)
    Dimensions
    197 x 35 x 20 mm ((LxWxH))
    110 x 33 x 20 (without probe and TopSafe)
    Operating temperature
    0 to +60 °C
    Product-/housing material
    ABS
    Protection class
    IP68
    Product colour
    white
    Authorizations
    CE 2014/30/EU
    Length probe shaft
    35 mm
    Diameter probe shaft
    11 mm
    Standards
    DIN EN 12830
    Battery type
    1 x CR2032
    Battery life
    80 h (Auto Off 10 min)
    Display type
    LCD (Liquid Crystal Display)
    Display size
    2 lines
    Number of channels
    2-channel
    Measuring rate
    2 measurements per second
    Temperature compensation
    automatic
    Storage temperature
    -20 to +70 °C

    pH measurement for drinking water analysis

    There have been statutory European directives from as early as 1980, which have regulated the limit values of specific parameters in drinking water. The Drinking Water Ordinance of 21 May 2001 in Germany decreed that water supply companies are obliged to provide their customers with drinking water which complies with the quality laid down in the Drinking Water Ordinance. The pH value is an important parameter for determining water quality.

    The water samples taken must be checked for their pH value directly or immediately after sampling. This must not exceed the acidic limit of 6.5 or the alkaline limit of 9.5 and should normally be in the neutral range around 7.

    The advantages of the testo 206 one-hand pH measuring instrument:

    • Direct measurement on site for fast assessment of the pH value
    • Available in three different models (including a version with plug-in probes for easy remote measurement)
    • Robust, waterproof “TopSafe” protective cover (protection class IP68)
    • Built-in temperature probe for simultaneous measurement of two parameters
    • Maintenance-free gel electrolyte


    pH measurement for quality assurance in the food sector

    The pH value of foods has a direct effect on the growth of microorganisms and therefore on food quality and safety. For this reason, many companies use the pH value as a quality characteristic for evaluating their food. For example, the pH value is of great importance in the manufacture of meat, sausage, delicatessen and dairy products.

    The pH value is an important quality parameter in the food sector. It particularly affects the properties of meat and meat-based products, especially with regard to water binding capacity, taste, colour, tenderness and shelf life. In the bakery sector, the acidity of the sourdough can be determined by means of the pH value. In the case of products such as salad dressings, the pH value helps to ensure consistent quality or consistent acidity of the product.

    The advantages of the testo 206 one-hand pH measuring instrument:

    • Direct measurement in process / in the food for fast assessment of the pH value
    • Available in three different versions – depending on the medium in which the measurement is being made
    • Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68)
    • Built-in temperature probe for simultaneous measurement of pH and temperature values
    • Maintenance-free gel electrolyte
    • 1, 2 or 3-point calibration possible

    testo 206

    pH measment in the cosmetics industry

    The pH value is a crucial factor when it comes to assessing the quality of cosmetic products. Cosmetic products which are too acidic or too alkaline can cause skin irritations or rashes. The pH value of the skin is normally between 5 and 6.5 thanks to its natural protective acid mantle. “Skin-neutral” cleansers are actually slightly acidic and can support the skin's protective acid mantle, which is particularly important for people with sensitive skin. On the other hand, alkaline cleansers could encourage the skin's process of replenishing its natural oils.

    The pH value of cosmetics must therefore be monitored, controlled and, if necessary, adjusted right from the production stage, so that the end product has the required value. The testo 206 one-hand pH measuring instrument helps you to do this through:

    • Direct measurement in process for fast assessment of the pH value
    • Three different versions of the product – depending on the medium in which the measurement is being made (e.g. liquid, paste-like, etc.)
    • Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68) to meet strict cleaning requirements in the pharmaceutical sector.
    • Built-in temperature probe for simultaneous measurement of two parameters
    • Maintenance-free gel electrolyte
    • 1, 2 or 3-point calibration possible

    testo 206
