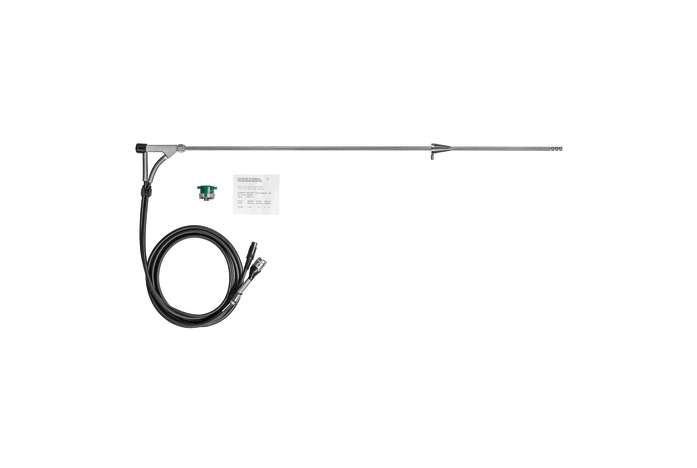

    SO2 low kit unheated

    0563 1251
  1. High degree of measuring accuracy
  2. Quick, convenient short-term measurements
  3. No electricity supply needed
  4. Easy to handle at the measuring point and during transport
    5. Use the kit with SO2 low sensor and special SO2 low gas sampling probe for measuring low SO2 values following flue gas after-treatments (e.g. scrubbers). SO2 measurement enables you to ensure the legally compliant operation of coal-fired power plants, waste incineration plants and large engines. Particularly convenient: the efficiency of the reduction of SO2 concentrations is calculated directly in the testo 350 flue gas analyzer (please order separately).

    • Special gas sampling probe for SO2 low measurement (0600 7562): long 735 mm probe shaft, including cone, thermocouple NiCr-Ni, Tmax probe shaft +220°C, hose length 2.35 m, probe shaft diameter 8 mm
    • SO2 low retrofit sensor (0554 2251)

    Please note:

    For a measurement, the unheated SO2 low kit must be combined with the testo 350 flue gas analyzer (Control Unit 0632 3511 and analyzer unit 0632 3510) and Peltier gas preparation with peristaltic pump for automatic condensate drainage.

    General technical data

    Weight
    18 g (sensor)
    658 g (Probe)
    Length probe shaft
    735 mm
    Product-/housing material
    Plastic
    Cable length
    2.35 m
    Diameter probe shaft
    8 mm
    Temperature maximum
    220 °C
    Product colour
    Black
