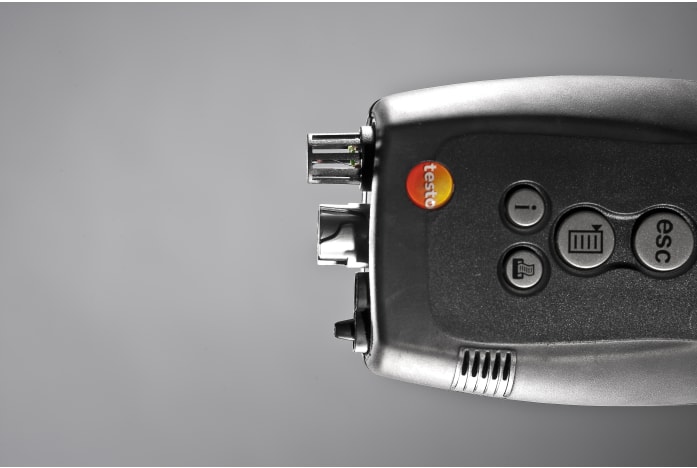

    testo 330-2 LL - Pro flue gas analysis kit

    0632 3307
  1. High-quality, longlife (up to six years) O2 and CO sensors; further sensors (i.e. NO sensor) optional
  2. 4-year warranty on the flue gas analyzer
  3. No need to withdraw the sensor from the flue to zero
  4. CO measurements up to 30 000 ppm
  5. The intelligent professional analysis tool for all measurements in and around heating systems. The TÜV-tested testo 330-2 LL flue gas analyzer comes with a wide range of user-changeable, longlife sensors that last for up to six years. Saves you from having to buy an extra measuring device – and new sensors.

    The TÜV-tested  testo 330-2 LL flue gas analyzer ensures that you have the proper tools for proper measurements for a proper long time! The easy-to-use, state-of-the-art analysis tool provides you with quick and reliable readings and is built to last for years to come.

    • 4-year warranty on the flue gas analyzer
    • Bigger savings with longlife (LL) sensors. Because the O2 and CO sensors need to be replaced less often (typically once every six years and therefore once less) you save on costs.
    • Wide range of optional sensors (i.e. NO, COlow, NOlow sensors) that allow you to customize your analysis tool to suit your individual requirements and saves you from having to buy other flue gas meters or analysis tools
    • Sensor connector for quick `n easy sensor change. All gas circuits can be connected to the analysis tool via a bayonet lock


    The testo 330-2 LL pro flue gas analyzer – one tool for a host of measurements

    The testo 330-2 LL pro flued gas analyzer is designed to allow you to carry out all standard installation, service and maintenance measurements in and around heating systems with only one device.

    • Flue gas parameter (CO, O2, temperature) measurements at burners
    • Draft measurements at heating systems
    • Pressure measurements at burners (i.e. die pressure, gas flow pressure)
    • CO ambient air measurements with optional sensor
    • Gas leak detection and gas pipe inspections with optional sensors
    • Pressure difference measurements

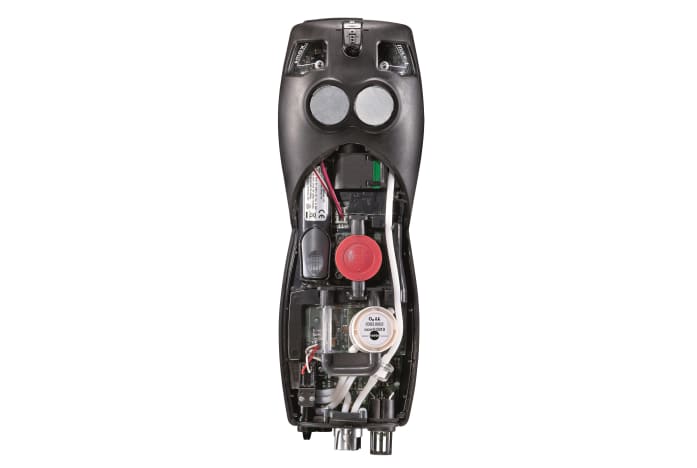

    testo 330-2 LL flue gas analyzer – it’s what’s on the inside that counts

    • High-quality, longlife O2, CO and NO – O2- and CO sensors included
    • Sensor connector for quick `n easy sensor change
    • High-resolution graphic color display, graphic presentation of the course of the measurement with flue gas matrix and line diagram
    • Wide range of measurement menus for heating systems analysis checks
    • Integrated sensor monitoring; traffic light color coding system and at-a-glance status
    • User-changeable sensors; easy-to-replace sensor filter
    • No need to withdraw the sensor from the flue to zero (additional feature which the testo 330-1 LL does not have)
    • CO thinning: automatic thinning from 8 000 ppm to at least 30 000 ppm during CO measurements (another additional feature which the testo 330-1 LL does not have)
    • Logger function for long-term measurements; supersize memory for up to 500 000 readings
    • Integrated magnets that stick to almost all metal objects for easy measuring
    • Easy-to-empty condensate collection tank
    • Optional Bluetooth interface for optional testo BLUETOOTH® printer
    • 4-year warranty without service contract
    • TÜV-tested according to 1st BImSchV EN 50379, Parts 1-3

    Please Note: If you think that the testo 330-2 LL is just the analysis tool and measuring device you’ve been looking for, but you also need an H2-compensated CO sensor, then you will be pleased to hear that this sensor – and many other optional accessories including a Bluetooth interface – can be ordered together with your flue gas analyzer.


    What’s included

    testo 330-2 LL flue gas analyzer, O2/CO sensor, rechargeable battery, calibration certificate.



    General technical data

    Weight
    600 g (without rechargeable battery)
    Dimensions
    270 x 90 x 65 mm
    Operating temperature
    -5 to +45 °C
    Display size
    240 x 320 pixels
    Display function
    Colour graphic display
    Power supply
    Rechargeable battery pack 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A
    Maximum memory
    500,000 readings
    Storage temperature
    -20 to +50 °C

    Differential Pressure - Piezoresistive

    Measuring range
    ±10000 Pa
    Accuracy
    ±3 % of mv (10 to 10000 Pa) plus ±1 Digit
    ±0.3 Pa (0 to 9.99 Pa) plus ±1 Digit

    Flue gas O₂

    Measuring range
    0 to 21 Vol.%
    Accuracy
    ±0.2 Vol.%
    Resolution
    0.1 Vol.%
    Reaction time t₉₀
    < 20 s

    • Testo ZIV driver in the 2000 version. The Testo ZIV driver is used to connect the testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface Version 2.0 defined by the Zentralverband des Schornsteinfegerhandwerks (Central Association of Chimney Sweeps, ZIV). Please check with the manufacturer of your application program as to whether this interface is supported. If Microsoft .NET Framework 4.0 has not been installed on the computer, it must be downloaded from the Microsoft website and installed on the system.
    • The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
    • If the firmware update does not start under Windows 8.1 or Windows 10, a new bootloader must be installed on the measuring device once.
      A description and all necessary files can be found under the search term: Update-Kit / Bootloader
    • This software supports you in updating the software of your testo 330. Please read the instruction manual (german / english) for more information.
    • Manual Firmware-Update testo 330-2 LL v2010
    • Update-Kit / Bootloader(V1.22, 1.24 MB)
      (testo 330 LL | testo 330i | testo 350 Control Unit + Analysis Box | testo 320)
      If the firmware update does not start under Windows 8.1 or Windows 10, a new bootloader must be installed on the measuring device once.
    • USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845
