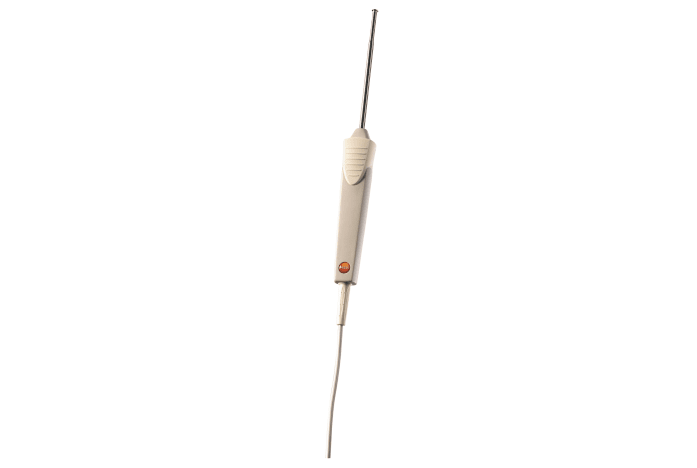

    Waterproof surface probe with widened measurement tip for fl... - with wider measuring tip

    0603 1993
  1. Waterproof
  2. Thermocouple type T
  3. Measuring range: -50 to +350°C
  4. With the appropriate measuring instrument, the waterproof surface probe with wider measuring tip enables temperature measurement on flat surfaces.

    1 x waterproof surface probe (TC type T) with fixed cable (cable length 1.2 m).

    General technical data

    Weight
    112 g
    Dimensions
    1300 mm
    Length probe shaft tip
    50 mm
    Diameter probe shaft
    5 mm
    Diameter probe shaft tip
    6 mm
    Cable length
    1.15 m
    Fixed cable
    yes
    Protection class
    IP65
    Product-/housing material
    ABS / TPE / PUR
    Length probe shaft
    115 mm
    Product colour
    white; silver

    Temperature - TC Type T (Cu-CuNi)

    Measuring range
    -50 to +350 °C
    Accuracy
    ±0.2 °C (-20 to +70 °C)
    Class 1 (Remaining Range) ¹⁾
    Reaction time
    30 s
    1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T).
