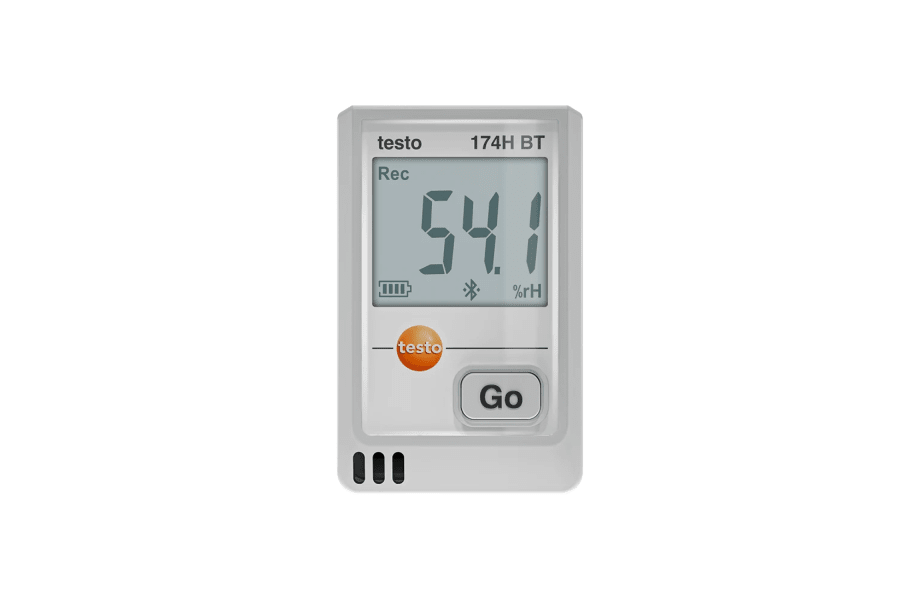

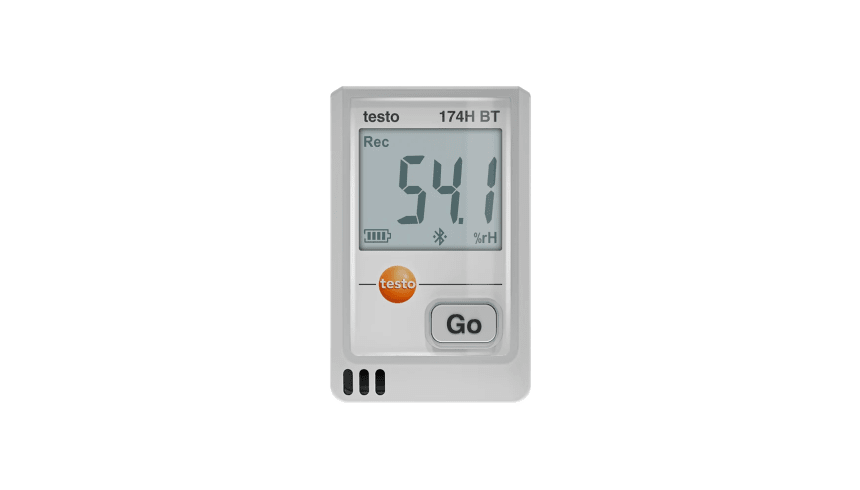

    testo 174 H BT - Mini data logger for temperature and humidity with Bluetooth® and app connection

    0572 1743 01
  1. Free app including report generation and export function
  2. Simple data analysis via Bluetooth directly at the measuring point from up to 30 metres away
  3. Accurate indoor humidity and temperature measurement from -20 °C to +70 °C
  4. Reliable automatic data backup when the battery is empty or when changing the battery
    5. The testo 174 H BT mini data logger reliably monitors temperature and humidity-sensitive goods with a measuring range of -20 °C to +70 °C and stores up to 16,000 readings. Configuration and evaluation are easy with the free testo Smart App.
    The testo 174 mini data loggers with a focus on industry and HVAC/R can be found here
    • not available

      Simple and intuitive configuration and analysis of measurement data via the testo Smart App

    The testo 174 H BT mini data logger is suitable for monitoring the storage of temperature and humidity-sensitive goods such as food or in archives, as well as for monitoring the indoor climate. It accurately measures temperature and humidity in the range -20 °C to +70 °C, displays current values and limit value violations and stores up to 16,000 readings.

    Simple configuration and evaluation of the data logger is carried out via the free testo Smart App, which enables intuitive reporting and data analysis via Bluetooth up to 30 metres away.

    The automatic data backup ensures reliable measurement data recording, even when the battery is empty or during a battery change.

    testo 174 H BT mini temperature data logger including wall bracket, battery (2 x CR2032 lithium) and test report.

    Temperature - NTC

    Measuring range
    -20 to +70 °C
    Accuracy
    ±0.5 °C (-20 to +70 °C)
    Resolution
    0.1 °C

    Humidity - Capacitive

    Measuring range
    0 to 100 %RH*
    Accuracy
    ±0.03 %RH/K
    ±3 %RH (2 to 98 %RH)
    Resolution
    0.1 %RH
    * Not for condensing atmospheres.

    General technical data

    Weight
    35 g
    Dimensions
    60 x 38 x 18.5 mm
    Operating temperature
    -20 to +70 °C
    Product-/housing material
    Plastic
    Protection class
    IP20
    Channels
    2 internal
    Product colour
    white
    Standards
    HACCP International
    Measuring rate
    1 min - 24 h
    Battery life
    1 year (15 min measuring cycle, +25 °C)
    Battery type
    2 lithium batteries (CR2032)
    Memory
    16,000 measuring values
    Storage temperature
    -40 to +70 °C

    Accessories

  5. Accessories
    Lithium battery CR2032 button cell
      :
      0515 5174
