testo 300+ Flue Gas Analyser advanced kit - (O2, CO sensor up to 8,000 ppm)

0564 3004 13
£ 979.00 £ 1,174.80
1
  • Bluetooth clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature.
  • CO sensor and O2 sensor fitted with 5 year lifespan
  • Practical second screen function and easy data integration into user-specific software via QR code output
  • Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously

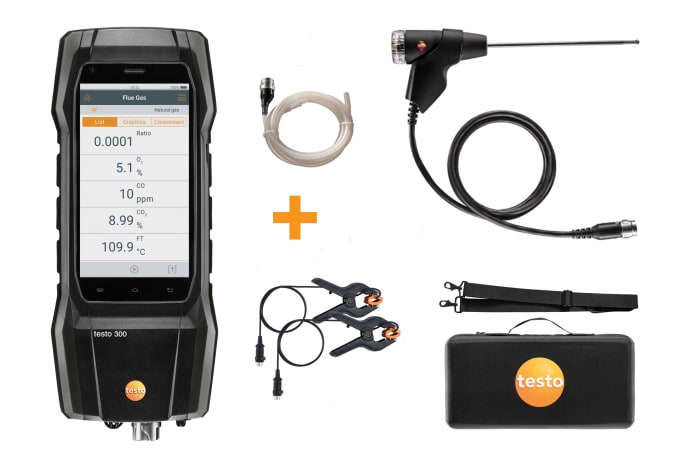

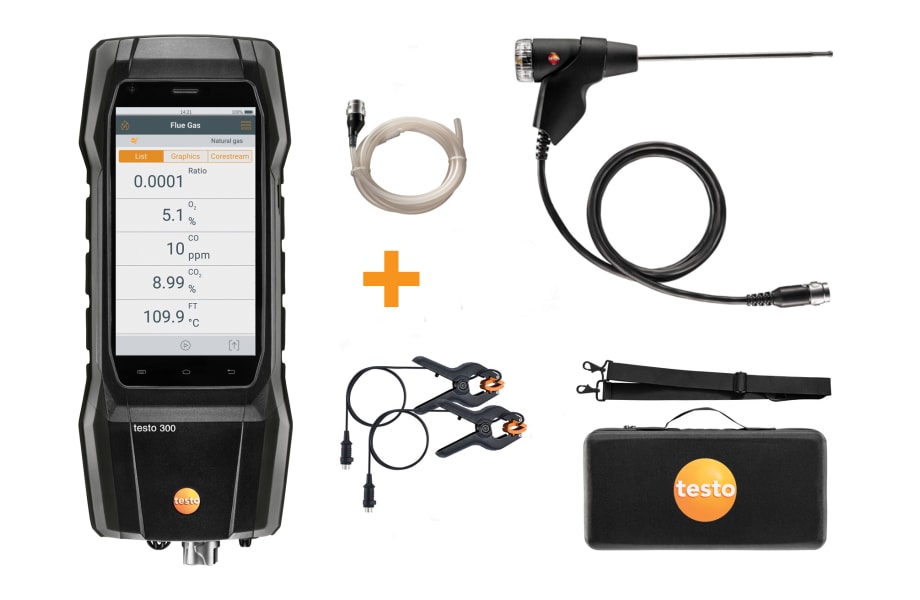

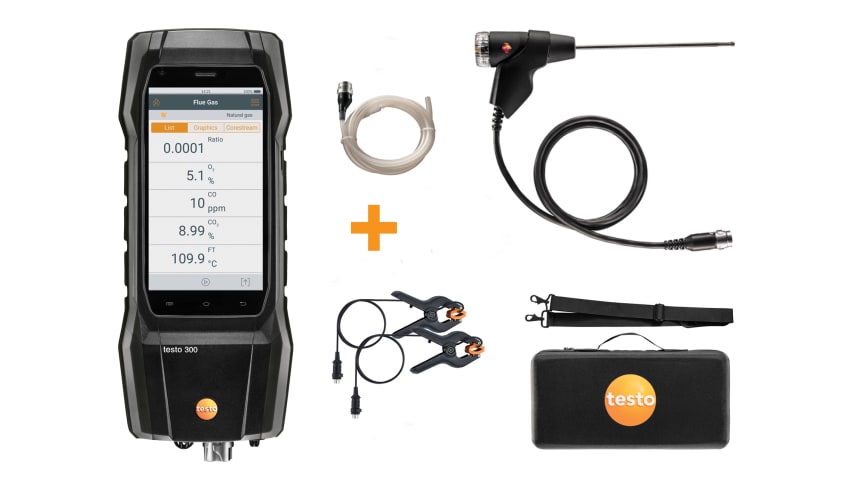

    • With this kit, you will be equipped for the most important measurements involving domestic heating systems alongside flow/return temperature measurements and gas pressure testing: the testo 300+ flue gas analyser is supplied with 5 year lifespan O2 and CO sensor (8,000 ppm H2 compensated), basic flue gas probe, pressure test accesory kit, 2 x wired pipe temperature clamp probes,testo Bluetooth® Connector, instrument carry case, AC USB power supply.
    •    For testing domestic gas & oil boilers
    •    Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
    •    5 year sensors for reduced service costs
    •    8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
    •    EN50379-1/3 and BS7967 compliant
    •    20% H2 ready
    •    Bluetooth USB dapter supplied for connectivity to testo Smart Probes
    •    Kit includes 2 x pipe temperature clamp probes (wired) for flow/return temperature measurements
    •    Kit includes pressure connection adapter set for gas pressure testing

    • testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
    • USB mains unit, including cable (0554 1105)
    • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
    • testo bluetooth connector (0554 3004)
    • 2 x clamp probes (NTC) for temperature measurements on pipes (Ø 6-35 mm) with fixed cable (cable length 1.4 m) (0615 5505)
    • Pressure connection kit with 2 silicone hoses (Ø 6 mm and Ø 4 mm, each 1 m long) and measuring instrument adapter for testo 300 (0554 1203)
    • Soft-case style Instrument bag (0516 3001)

  • Flue gas probe compact 180 mm 0600 9740
    Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
      : 0600 9740
    • Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)
      Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
        : 0615 5505
      • Hose connection set for separate gas pressure measurement
        Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
          : 0554 1203
        • PC Software testo EasyHeat
          Free download: testo EasyHeat PC software
            : 0554 3332
          • Instrument bag
            Instrument bag with carrying strap
              : 0516 3001
            • USB mains unit
              USB mains unit, including cable
                : 0554 1106
              • testo Bluetooth Connector
                testo Bluetooth Connector
                  : 0554 3004

                  • CO probes

                • CO probes
                  CO probe (digital), wired
                  CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
                    :
                    0632 1272
                    £ 329.00 £ 394.80
                    1

                    • Flue gas probes

                  • Flue gas probes
                    TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
                      :
                      0600 9760
                      £ 236.00 £ 283.20
                      1
                    • Flue gas probes
                      flue gas probe
                      TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
                        :
                        0600 9761
                        £ 247.00 £ 296.40
                        1
                      • Flue gas probes
                        Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
                          :
                          0600 9762
                          £ 236.00 £ 283.20
                          1
                        • Flue gas probes
                          0600-9763-flue-gas-probe-1
                          Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
                            :
                            0600 9763
                            £ 247.00 £ 296.40
                            1
                          • Flue gas probes
                            Flue gas probe compact 180 mm 0600 9740
                            Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
                              :
                              0600 9740
                              £ 163.00 £ 195.60
                              1
                            • Flue gas probes
                              Flue gas probe compact
                              Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C
                                :
                                0600 9741
                                £ 172.00 £ 206.40
                                1

                                • Further probes

                              • Further probes
                                clearance-probe-for-O2-supply-air-measurement
                                Dual wall clearance probe for O2 supply air measurement
                                  :
                                  0632 1260
                                  £ 138.00 £ 165.60
                                  1
                                • Further probes
                                  0600-9765-flue-gas-probe
                                  Solid fuel kit - including probe shaft and adapter
                                    :
                                    0600 9765
                                    £ 383.00 £ 459.60
                                    1

                                    • Temperature probes

                                  • Temperature probes
                                    Clamp probe with NTC temperature sensor for measurements on pipes (Ø 6-35 mm)
                                    Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
                                      :
                                      0615 5505
                                      £ 54.00 £ 64.80
                                      1
                                    • Temperature probes
                                      Pipe wrap probe with NTC temperature sensor for measurements on pipes (Ø 5-65 mm)
                                      Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
                                        :
                                        0615 5605
                                        £ 174.00 £ 208.80
                                        1
                                      • Temperature probes
                                        Waterproof immersion/penetration probe with NTC temperature sensor
                                        Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
                                          :
                                          0615 1212
                                          £ 66.00 £ 79.20
                                          1
                                        • Temperature probes
                                          Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
                                            :
                                            0600 9799
                                            £ 87.00 £ 104.40
                                            1

                                            • Flue gas measurement on heating systems

                                            Ideal for measurements involving heating systems:
                                            • high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
                                            Further areas of application:
                                            • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*, integrated 4 Pa measurement for combustion equipment
                                            * Please note: additional probes or accessories are required for these measurements and have to be ordered separately.

                                            Application testo 300
