testo 300+ Flue Gas Analyser ultra-smart kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 02testo 300+ Flue Gas Analyser ultra-smart kit - (O2, CO sensor up to 8,000 ppm)
300564 3004 02Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor
Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously
Practical second screen function and easy data integration into user-specific software via QR code output
CO sensor and O2 sensor fitted with 5 year lifespan
Bluetooth clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature.
Easy detection of leaks with the testo combustible gas leak detector.

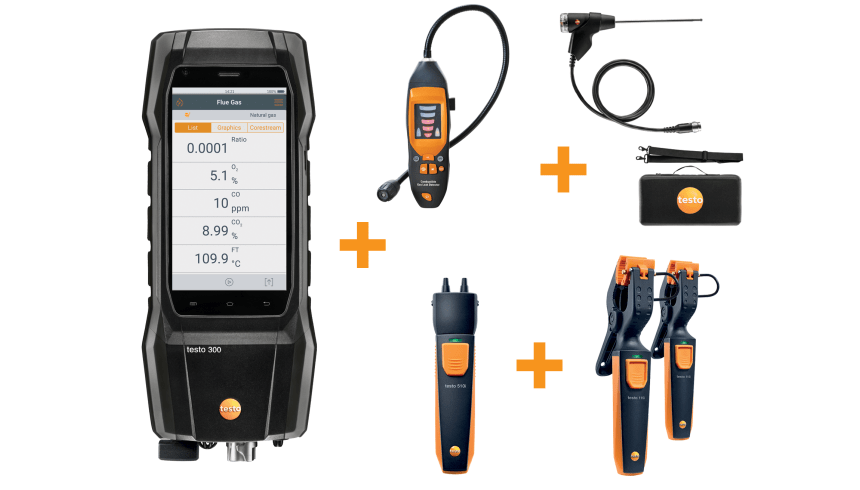

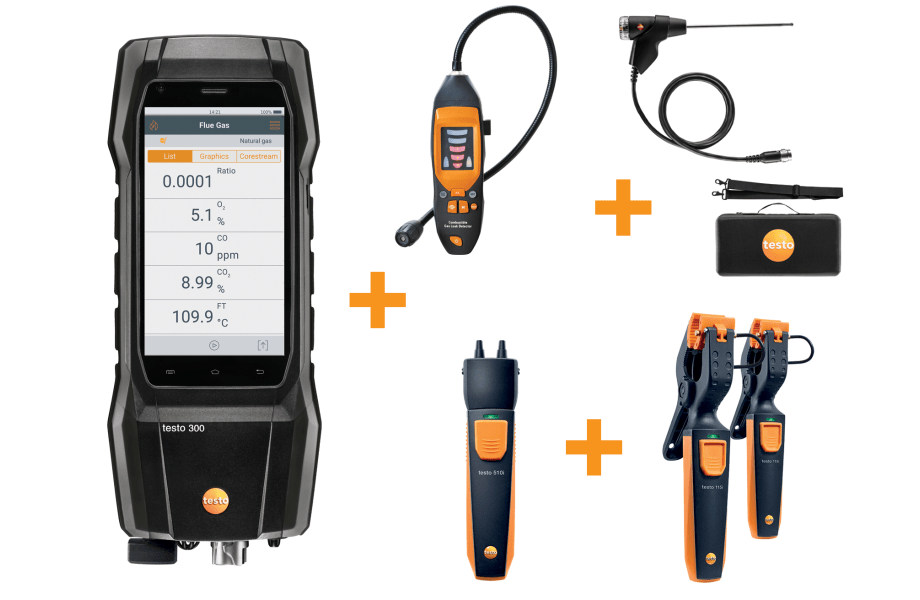

With this kit, you will be equipped to carry out smart measurements involving domestic heating systems whilst identifying gas leaks efficiently, thanks to the bluetooth clamp probes and manometer included: the testo 300+ flue gas analyser is supplied with 5 year lifespan O2 and CO sensor (8,000 ppm H2 compensated), basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, 1 x testo combustible gas escape detector, instrument carry case, AC USB power supply.
• Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
• 5 year sensors for reduced service costs
• 8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
• EN50379-1/3 and BS7967 compliant
• 20% H2 ready
• Bluetooth USB dapter supplied for connectivity to testo Smart Probes
• Kit includes 2 x testo 115i bluetooth pipe clamp probes for flow & return temperature measurement
• Kit includes 1 x testo 510i bluetooth manometer for measurent of gas pressure and differential temperature
• Kit includes 1 x testo combustible gas leak detector
- testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
- USB mains unit, including cable (0554 1105)
- Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
- 1 x testo 510i Smart probe manometer (0560 1510)
- 2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
- 1 x testo combustible gas leak detector
- testo Bluetooth connector (0554 3004)
- soft-case style Instrument bag (0516 3001)
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1.5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 1400 g |
|---|---|
| Dimensions | 256 x 516 x 135 mm ((LxWxH)) |
| Product colour | Black |
General technical data
| Weight | 144 g |
|---|---|
| Dimensions | 85 x 55 x 90 mm LxWxH |
| Product colour | Black |
| Cable length | 2 m |
| Power supply | 230 V AC / 5 V DC (2 A), micro USB, for the use in USA, CA, AU, Europe, UK, CN, Korea |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 AAA micro batteries |
| Battery life | 150 h |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Storage temperature | -20 to +60 °C |
Differential pressure (internal sensor) - Piezoresistive
| Measuring range | -150 to +150 hPa |
|---|---|
| Accuracy | ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
| Resolution | 0.01 hPa |
General technical data
| Weight | 92 g |
|---|---|
| Dimensions | 148 x 36 x 23 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -20 to +60 °C |
CO probes
Flue gas probes
Further probes
Temperature probes
Sets
Accessories
Flue gas measurement on heating systems
Ideal for measurements involving heating systems:
- high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing
- gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*
