testo 327 - Flue Gas Analyser (advanced kit + gas leak detector + CPA1 kit)
300563 4327testo 327 - Flue Gas Analyser (advanced kit + gas leak detector + CPA1 kit)
300563 4327Robust & reliable
Best value flue gas analyser on the market
Measures O₂ & CO, will calculate ratio, CO₂, and more
Soft carry case with shoulder strap
Gas leak detector
The testo 327-1 Flue Gas Analyser offers a robust and simple entry into flue gas analysis for domestic boilers. It measures O2 & CO , and will calculate ratio, CO2, etc. The 4-line LED display can be configured to the users requirements, and its back-lighting function guarantees an easy-to-read display even if lighting conditions are unfavourable. The analyser stands out on account of its easy menu navigation and ergonomic housing as well as its durability.

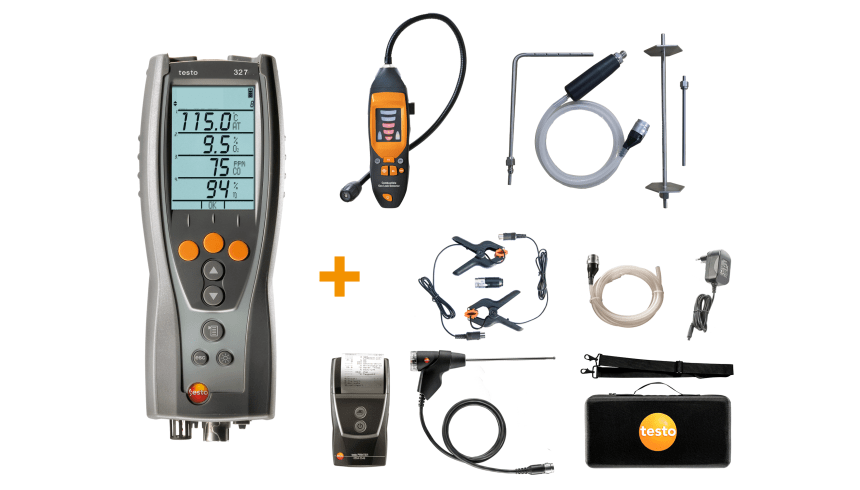

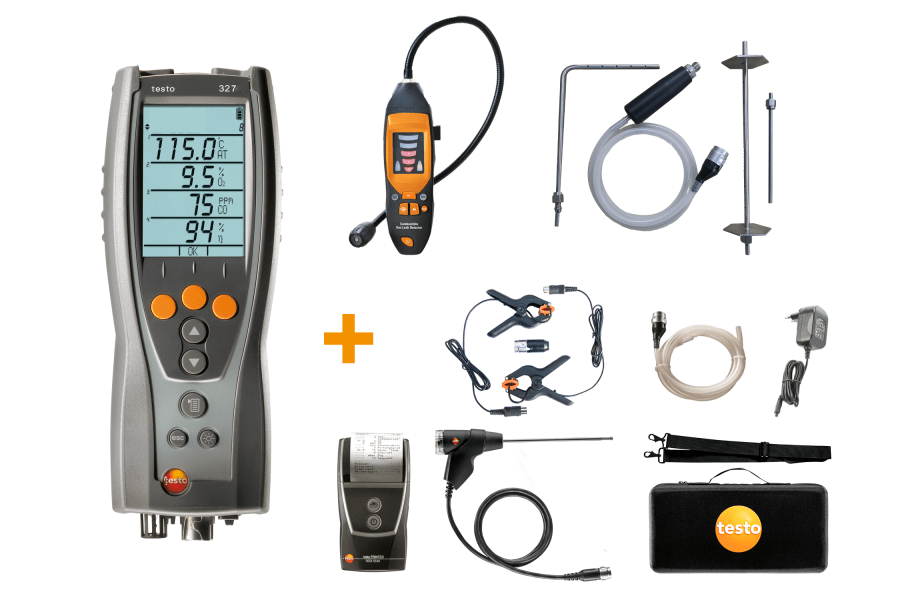

testo 327 Flue Gas Analyser, testo gas leak detector, testo CPA1 probe kit, rechargeable battery and calibration protocol, Flue Gas Probe (180mm x 6mm diameter), Pressure hose connection kit, Differential temperature kit (2 x pipe clamp probes), testo infrared printer, soft carry case with shoulder strap, AC power supply.
General technical data
| Weight | (with probe) Approx. 700 g |
|---|---|
| Dimensions | 201 x 83 x 44 mm |
| Operating temperature | -5 to +45 °C |
| Display type | LCD (Liquid Crystal Display) |
| Display function | Backlit 2-line display |
| Power supply | Battery: 1500 mAh, mains unit 5V/1A |
| Storage temperature | -20 to +50 °C |
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -40.00 to +600.00 °C |
|---|---|
| Accuracy | ±0.50 °C (0 to 99.90 °C) ±0.50 °C (100 to 600 °C) |
| Resolution | 0.1 °C |
| Reaction time | < 50 s |
| Temperature (ambient temperature) | |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Reaction time t₉₀ | 30 s |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | -40.0 to +40.0 hPa |
|---|---|
| Accuracy | ±0.02 hPa (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.50 % of mv (3.01 to +40.0 hPa) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0.1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99.0 % |
|---|---|
| Resolution | 0.1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | 0 to CO₂ max (Display range) |
|---|---|
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Reaction time t₉₀ | < 40 s |
Flue gas CO (without H₂-compensation)
| Measuring range | 0 to 4000 ppm |
|---|---|
| Accuracy | ±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) |
| Resolution | 1 ppm |
| Reaction time t₉₀ | 60 s |
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1.5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| Weight | 1400 g |
|---|---|
| Dimensions | 256 x 516 x 135 mm ((LxWxH)) |
| Product colour | Black |
General technical data
| Dimensions | 145 x 75 x 40 mm |
|---|---|
| Product-/housing material | Plastic |
| Product colour | Black |
| Battery type | 4 x type AA batteries |
| Interface | IR/IRDA interface |
| Weight | 258 g |
Flue gas probes
Flue gas probes
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
:
0600 9740
0600 9740
£ 163.00 £ 195.60
1
Temperature probes
Temperature probes
:
0554 7223
0554 7223
£ 60.00 £ 72.00
1
Temperature probes
Differential temperature set consisting of 2 Velcro probes and temperature adaper testo 327
:
0554 1208
0554 1208
£ 67.00 £ 80.40
1
Accessories
Accessories
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
:
0554 1203
0554 1203
£ 28.00 £ 33.60
Accessories
testo fast printer IRDA
:
0554 0549
0554 0549
£ 209.00 £ 250.80
1
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
:
0516 3300
0516 3300
£ 92.00 £ 110.40
1
Accessories
Instrument bag with carrying strap
:
0516 3001
0516 3001
£ 66.00 £ 79.20
1
Accessories
International mains unit
:
0554 1096
0554 1096
£ 52.00 £ 62.40
1
Accessories
Spare particle filter, compact probe; 10 off
:
0554 0040
0554 0040
£ 29.00 £ 34.80
1
Accessories
Cone with fixing screw
:
0554 9010
0554 9010
£ 25.50 £ 30.60
1
Accessories
Battery Cover for testo 510 Pressure Gauge
:
0192 5333
0192 5333
£ 2.00 £ 2.40
1
Accessories
Clear Cap for Flue Gas Analyser Probes
:
0192 1108
0192 1108
£ 3.00 £ 3.60
1
Accessories
Cone (6mm) for Flue Gas Probe
:
0170 9070
0170 9070
£ 11.00 £ 13.20
1
Accessories
Screw for flue gas probe
:
0170 0147
0170 0147
£ 2.00 £ 2.40
1
Accessories
Spare thermal paper for printer, permanent
:
0554 0568
0554 0568
£ 29.00 £ 34.80
1
Accessories
External fast charger for 1-4 AA rech. batteries, incl. 4 Ni-MH rech. batteries with individual cell charging and charge control display, incl. impulse trickle charging, integrated discharge function, with built-in international mains plug, 100-240 V, 300 mA, 50/60 Hz
:
0554 0610
0554 0610
£ 49.90 £ 59.88
Accessories
Pressure set for gas pressure measurement on heating systems, diameter 4/6 mm, length 50cm, w/o end adapter
:
0554 0449
0554 0449
£ 20.00 £ 24.00
1
