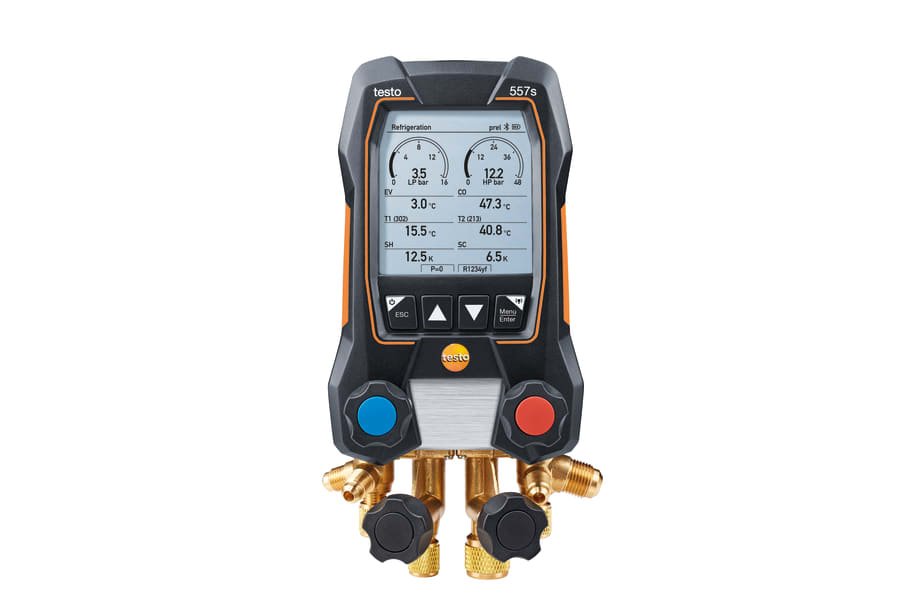

testo 557s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes
0564 5571 02testo 557s Smart Vacuum Kit - Smart digital manifold with wireless vacuum and clamp temperature probes
0564 5571 02Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth®
A3 and A2L compatible and over 90 stored refrigerants
Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, other optionally available testo Smart Probes are also ideal.
Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
- testo 557s digital 4-way manifold including batteries (4 x AA) and calibration protocol
- 1 x testo 552i wireless Bluetooth vacuum probe
- 2 x testo 115i wireless Bluetooth clamp thermometers
- Transport case
- testo Smart App (free download)
- Instruction manuals
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
Absolute Pressure
| Measuring range | 0 to 26.66 mbar / 0 to 20000 micron |
|---|---|
| Accuracy | ±(1 ±10 micron + 10 % of mv (100 to 1000 micron) |
| Resolution | 100 micron (2000 to 5000 micron) / 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / |
| Overload | absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi) |
General technical data
| Weight | 142 g |
|---|---|
| Dimensions | 150 x 32 x 31 mm (LxWxH) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP54 |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Auto-off | 10 min* |
| Battery type | 3 AAA micro batteries |
| Battery life | 39 h |
| Connection | 7/16“ UNF |
| Interface | Bluetooth® 4.2 |
| Storage temperature | -20 to +50 °C |
| * when not connected via Bluetooth | |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
Sets
Accessories
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
