- testo 860i Electrical Kit
testo 860i Electrical Kit - thermal imaging camera and clamp meter
Product no. 300563 0862
£ 499.00with VAT £ 598.80
1
Delivery time: 3 – 5 working days
testo 860i Electrical Kit - thermal imaging camera and clamp meter
Product no. 300563 0862Your benefits
High-Resolution Thermal Imaging – 256 x 192 pixel infrared resolution delivers ultra-sharp thermal images for precise diagnostics.
Advanced Electrical Measurement with testo 770-3 – True RMS clamp meter enables accurate current, voltage, and resistance measurements, even in tight spaces.
Durable & Reliable – IP54-rated, 1.5m drop resistance, and a long-lasting rechargeable battery for field use.
Enhanced Accuracy and Efficiency – The duo’s dual measurement capabilities streamline diagnostics, reduce troubleshooting time, and boost overall system accuracy.
Real-Time Data Synchronisation – Seamless connectivity through the testo Smart App provides instant access to both thermal and electrical data, enabling rapid problem identification

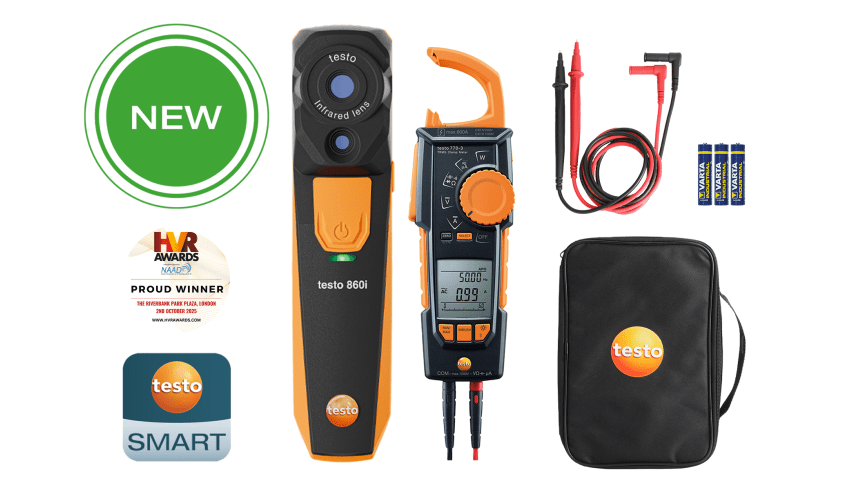

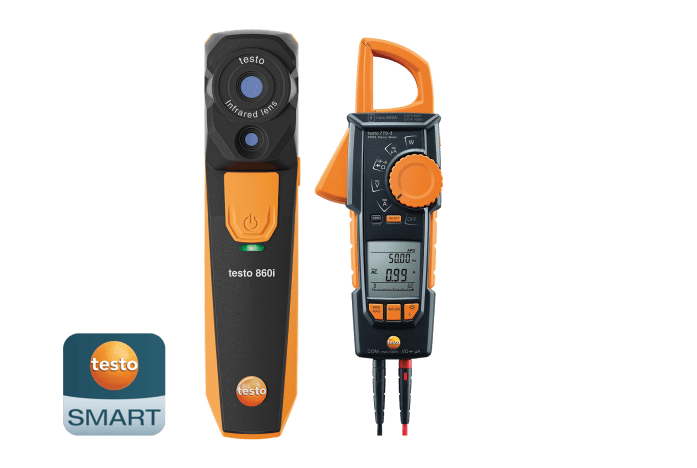

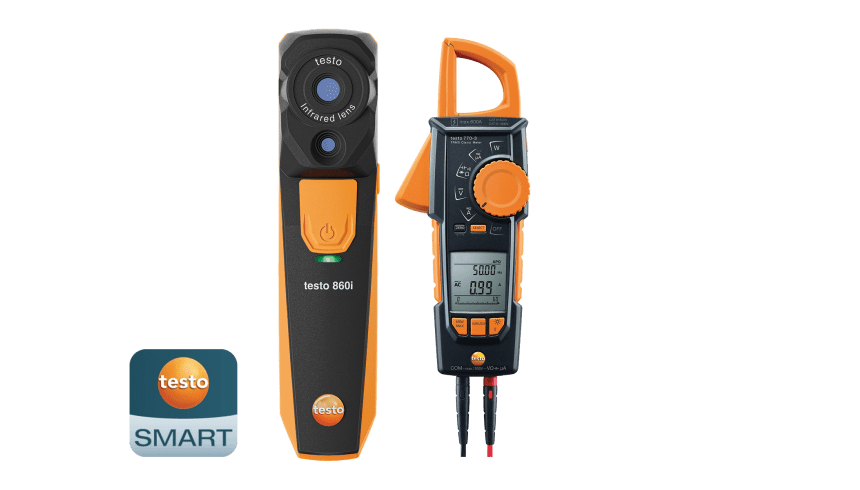

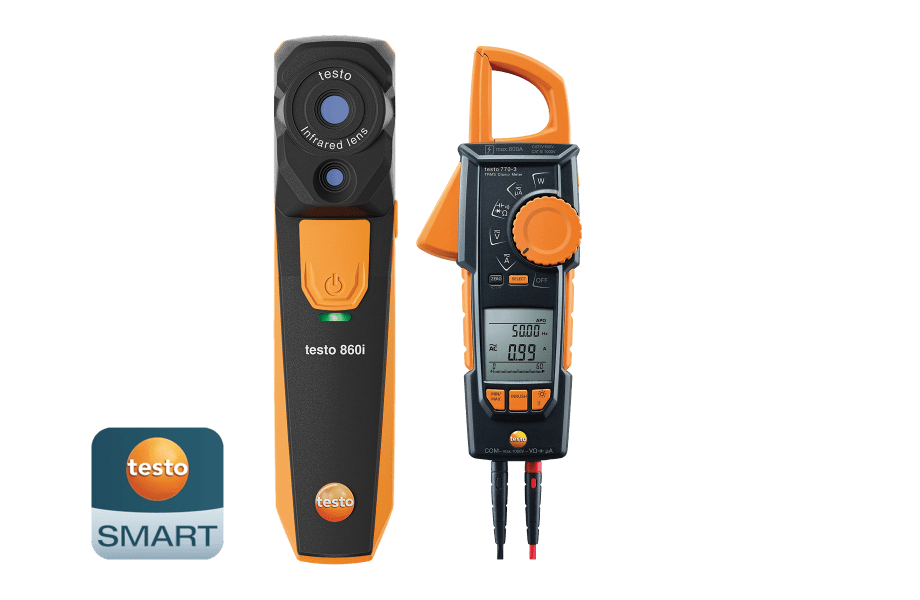

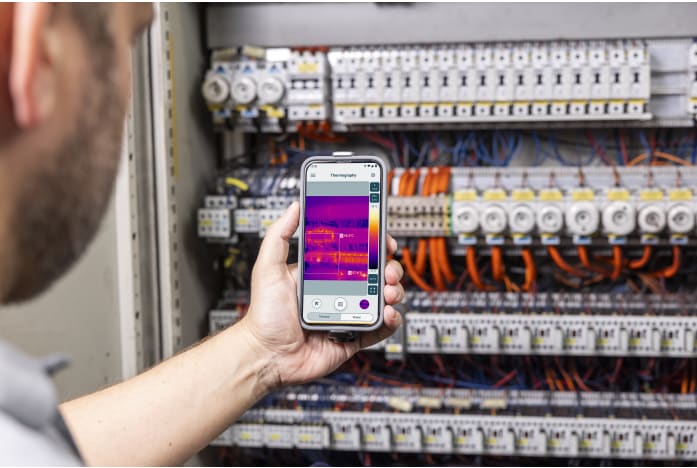

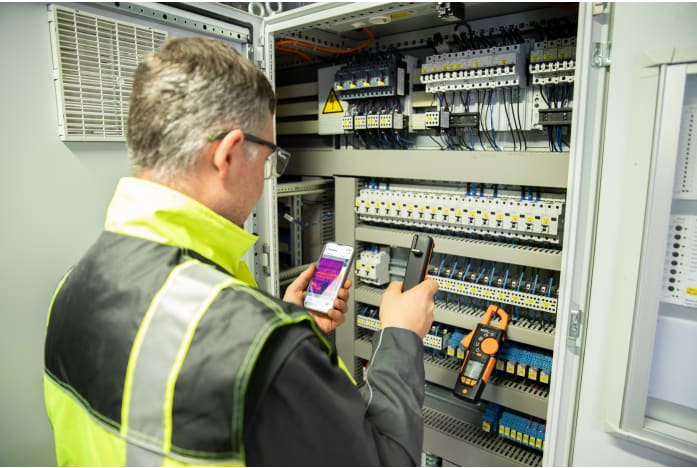

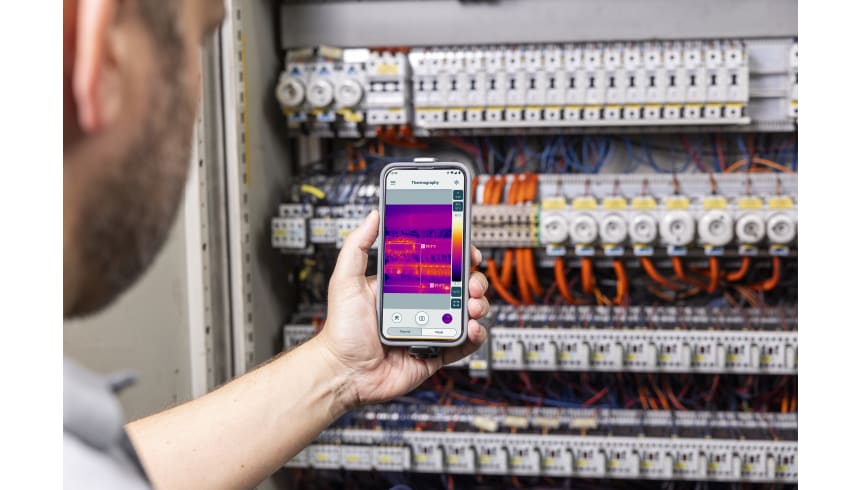

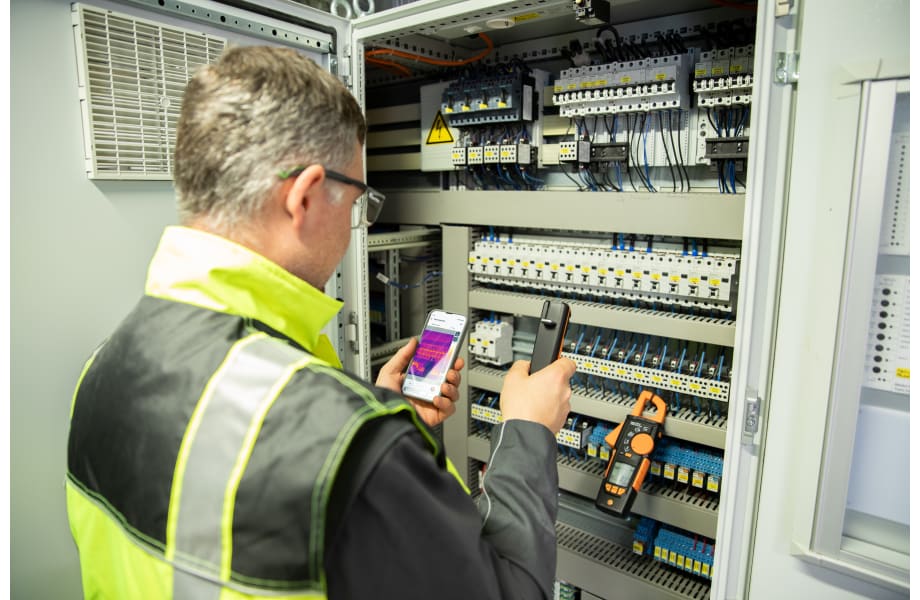

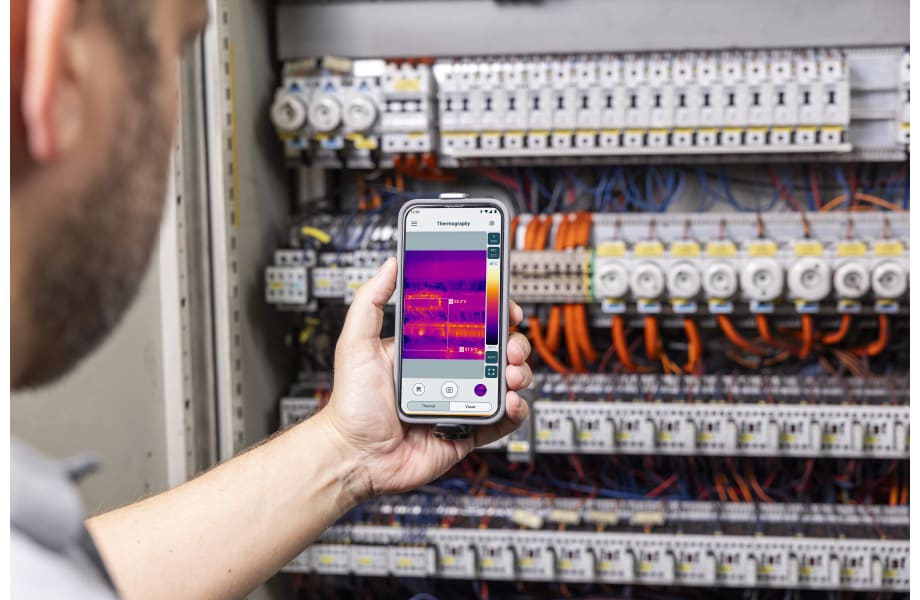

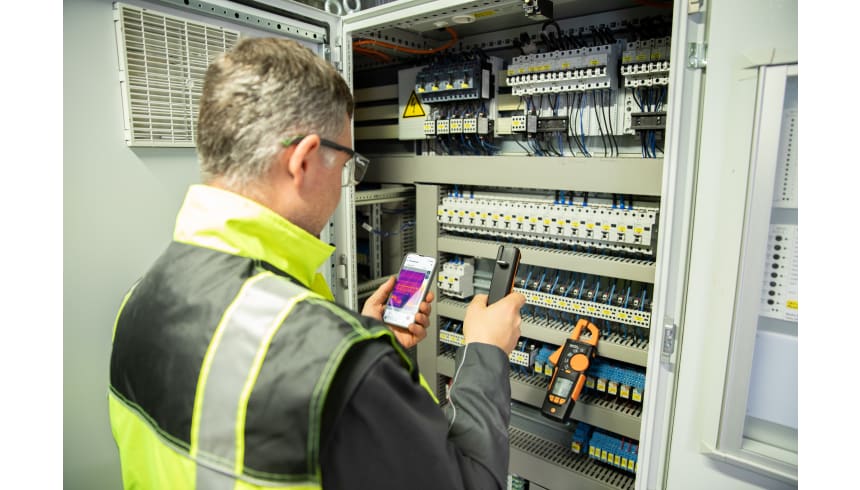

The testo 860i Electrical Kit combines the high-resolution testo 860i Wireless Thermal Imaging Camera with the advanced testo 770-3 Clamp Meter, offering an all-in-one solution for electrical and HVAC professionals for a comprehensive system evaluation. This enables professionals to capture precise thermal images and perform accurate electrical measurements simultaneously, streamlining workflow and improving troubleshooting efficiency—all seamlessly managed via the testo Smart App.
testo Smart App
The App for all applications. Multifunctional. Continuously up to date. Free.
Description
The testo 860i produces high-resolution thermal images (256 x 192 pixels) to pinpoint temperature variations and potential hotspots, while the testo 770-3 clamp meter delivers accurate measurements of current, voltage, and resistance. Their seamless connectivity via the testo Smart App enables real-time data synchronisation, allowing professionals to quickly correlate thermal anomalies with electrical parameters. This synergy not only enhances diagnostic precision but also minimises troubleshooting time, leading to more efficient evaluations.
Built for field use, both instruments feature robust construction with IP54-rated protection and 1.5m drop resistance, ensuring reliable performance in demanding environments. The unified reporting and documentation capabilities of the testo Smart App further streamline workflows by simplifying the analysis, recording, and sharing of critical data on-site. Whether diagnosing electrical faults, assessing HVAC systems, or inspecting building structures, the testo 860i Electrical Kit provides a versatile, efficient, and dependable solution that maximises the benefits of combined thermal and electrical analysis.
Delivery Scope

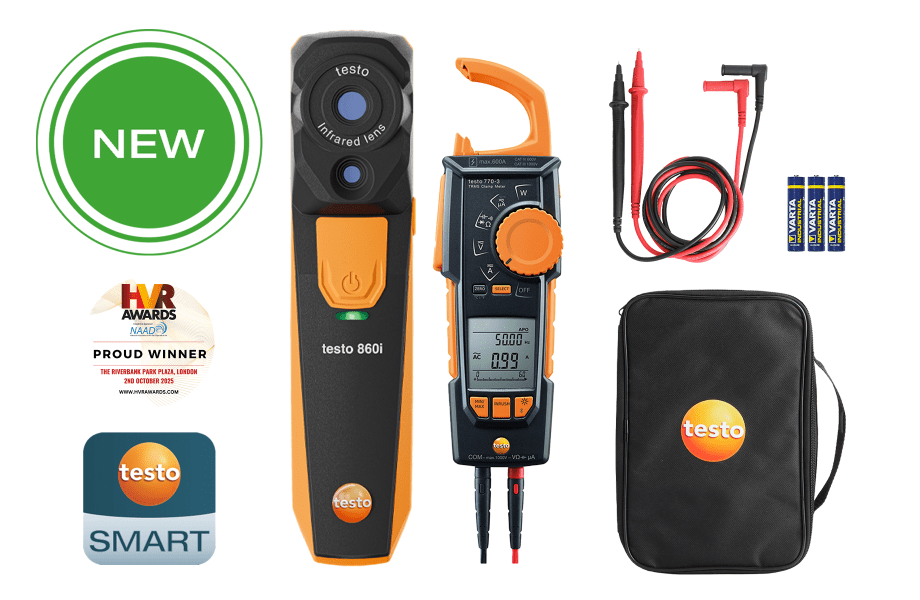

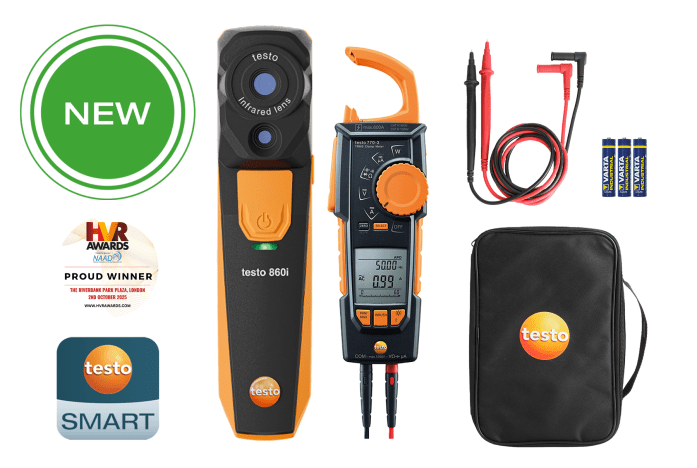

testo 860i thermal imaging camera, USB cable, testo 770-3 clamp meter with Bluetooth, 1 x set of measuring leads, carrying case, 3 x AAA batteries and test protocol
Details on kit components
Details on kit components

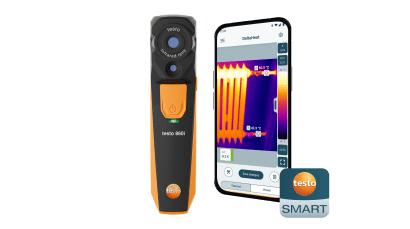

testo 860i - Wireless thermal imager for smartphones
Product no.: 0560 0860
Details on kit components
testo 770-3 - clamp meter with Bluetooth
Product no.: 0590 7703 02
Technical data
General technical data
| Protection class | IP54 |
|---|---|
| System requirements | requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0 |
Infrared image output
| Field of view | 48° x 36° |
|---|---|
| Focus | Fixed focus |
| Minimum focus distance | 0.3 m |
| Image refresh rate | 9 Hz |
| Infrared resolution | 256 x 192 pixels |
| Thermal sensitivity | 50 mk |
| Infrared image output | |
| Spectral range | 8 to 14 µm |
Image output visual
| Minimum focus distance | 0.4 m |
|---|---|
| Image size | 640 x 480 pixels |
Image presentation
| Colours | iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette |
|---|---|
| Digital zoom | yes |
| Display option | IR image / real image |
| (in the testo Smart App) | |
Measurement
| Accuracy | ±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40 °C and scene temperature of 0... +150 °C or +100... +350 °C) |
|---|---|
| Emissivity | 0.01 to 1 |
| Measuring range | -20 to +350 °C |
| Reflected temperature | manual; (via testo Smart App) |
Measuring function
| Analysis function | Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area) |
|---|---|
| Electrical mode - manual | Input of current, voltage or power |
| Humidity mode - manual | yes |
| Humidity measurement with humidity measuring instrument | Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App |
| Electrical measurement with clamp meter | Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App |
| Application-specific measurement functions | DeltaHeat; DeltaCool; humidity mode |
| (in the testo Smart App) | |
Imager equipment
| Full screen mode | yes |
|---|---|
| WLAN Connectivity | Communication with the testo Smart App; WLAN: IEEE 802.11b/g/n* |
| Bluetooth | Peer-to-peer advertising for fast connection set-up* |
| Remote-controlled operation | Up to 10 m from the mobile device (via WLAN) |
| * An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document. | |
Imager storage
| File format image | .bmt; .jpg; .csv |
|---|---|
| Storage device | On a mobile device |
Power supply
| Battery type | Integrated Li-ion rechargeable battery |
|---|---|
| Charging options | USB-C |
| Charging time | Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time) |
Ambient Condition
| Air humidity | 5 to 95 %RH, non-condensing |
|---|---|
| Vibration | IEC 60068-2-6 |
| Impact resistance test | 1.5 m |
| Storage temperature | -20 to +70 °C |
| Operating temperature | -10 to +50 °C |
Physical specification
| Tripod mounting | 1/4" - 20UNC |
|---|---|
| Mobile device attachment | Clip span: min. 120 mm, max. 170 mm and device depth up to max. 12 mm |
| Weight | 195 g |
| Dimensions | 165 x 45 x 38 mm |
PC software
| System requirements | Windows® 10; Windows® 11 |
|---|---|
| (testo IRSoft) | |
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -20 to +500 °C |
|---|---|
| Accuracy | ±1 °C (0 to +100 °C) |
| Resolution | 0.2 °C |
DC voltage
| Measuring range | 1.0 to 1000.0 V |
|---|---|
| Resolution | max. 1 mV |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
AC voltage
| Measuring range | 1.0 mV to 1000.0 V |
|---|---|
| Resolution | max. 1 mV |
| Accuracy | ± (1 % of mv + 3 Digit) |
DC current
| Measuring range | 0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
|---|---|
| Resolution | 0.1 (clamp) 0.1 (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp) |
AC current
| Measuring range | 0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
|---|---|
| Resolution | 0.01 A (clamp) 0.1 μA (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
Resistance
| Resolution | max. 0.01 Ohm |
|---|---|
| Measuring range | 0.10 to 60.0 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
Capacitance
| Resolution | max. 0.01 nF |
|---|---|
| Measuring range | 0.001 μF to 60000.00 μF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
Frequency
| Resolution | max. 0.1 Hz |
|---|---|
| Measuring range | 0.00 Hz to -10 kHz |
| Accuracy | ± (1 % of mv + 1 Digit) |
Active Power
| Measuring range | 0.1 W to 600 kW |
|---|---|
| Accuracy | ± (5 % of mv + 5 Digit) |
| Resolution | 0.1 W |
Reactive Power
| Measuring range | 0.1 to 600.0 kvar |
|---|---|
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.1 var |
Apparent Power
| Measuring range | 0.1 VA to 600.0 kVA |
|---|---|
| Accuracy | ± 1 Digit |
| Resolution | 0.1 VA |
Direct current DC Voltage
| Measuring range | 0.1 W to 600.0 kW |
|---|---|
| Accuracy | ± 1 Digit |
| Resolution | max. 0.1 W |
Power Factor
| Measuring range | -1.00 to +1.00 |
|---|---|
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.01 |
General technical data
| Operating humidity | 0 to 80.0 %RH |
|---|---|
| Weight | 378 g |
| Dimensions | 249 x 96 x 43 mm |
| Operating temperature | -10 to +50 °C |
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
| Product colour | Black |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Display size | 2 lines |
| Display type | LCD (Liquid Crystal Display) |
| Interface | 2 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
Instrument Measurement Functions
| Diode test | yes |
|---|---|
| Continuity testing | yes |
| Display ligthing | yes |
| Hold | yes |
| MinMax | yes |
| Power Measurement | yes |
| Temperature measurement with adapter | yes |
| True RMS | yes |
| Inrush current measurement | yes |
| Bluetooth | yes |
| Display (counts) | 6,000 |
| Autom. measurement parameter detection | yes |
| μA current measuring range | yes |
Sensor
Air probes
Air probes
Robust air temperature probe (TC type K) – measuring range: -60 to +400 °C
Product no.:
0602 1793
0602 1793
£ 65.00with VAT £ 78.00
1
Surface probes
Surface probes
Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C
Product no.:
0602 4592
0602 4592
£ 130.00with VAT £ 156.00
1
Surface probes
Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C
Product no.:
0602 4692
0602 4692
£ 75.00with VAT £ 90.00
1
Surface probes
Temperature probe with Velcro (TC Type K)
Product no.:
0628 0020
0628 0020
£ 47.00with VAT £ 56.40
1
Thermocouples
Thermocouples
Flexible thermoelectric couple (TC type K, glass fibre) – Measuring range: -50 to +400°C
Product no.:
0602 0644
0602 0644
£ 20.00with VAT £ 24.00
1
Sets
Sets
Sets
testo 860i kit - Wireless thermal imager for smartphones
Product no.:
0563 0860
0563 0860
£ 349.00with VAT £ 418.80
1
Sets
testo 770-3 Premium kit
Product no.:
0590 7703 03
0590 7703 03
£ 249.00with VAT £ 298.80
1
Accessories
Accessories
Accessories
testo Smart App with the full range of functions - available as a free download
Product no.:
0501 5001
0501 5001
Accessories
testo 605i - thermohygrometer operated via smartphone
Product no.:
0560 2605 02
0560 2605 02
£ 99.00with VAT £ 118.80
1
Accessories
testo 770-3 - clamp meter with Bluetooth
Product no.:
0590 7703 02
0590 7703 02
£ 205.00with VAT £ 246.00
1
Transport and Protection
Transport and Protection
Transport bag, dimensions: 270 x 150 x 75 mm
Product no.:
0590 0017
0590 0017
£ 30.00with VAT £ 36.00
1
