testo Smart Probes heating kit
Product no. 0563 0004 10
testo Smart Probes heating kit
Product no. 0563 0004 10Your benefits

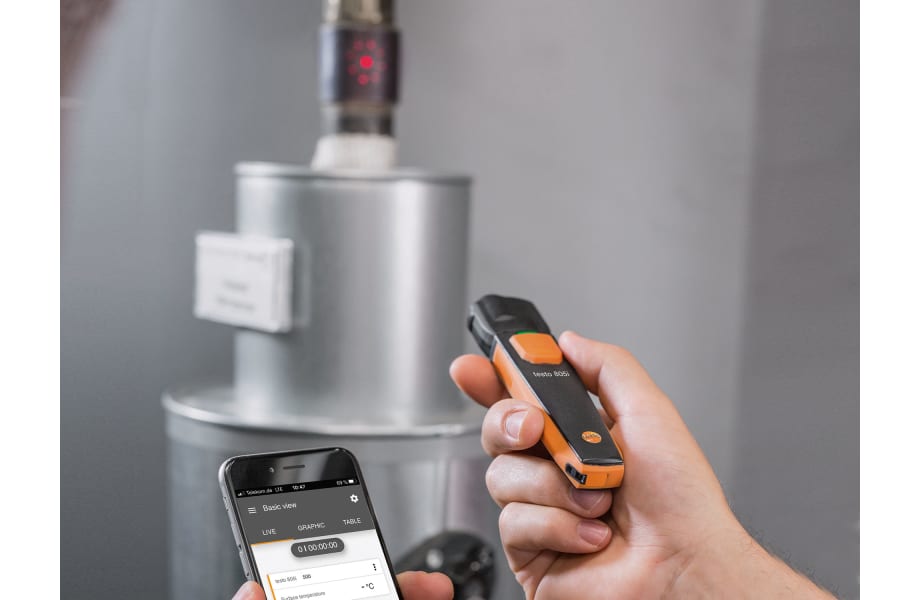

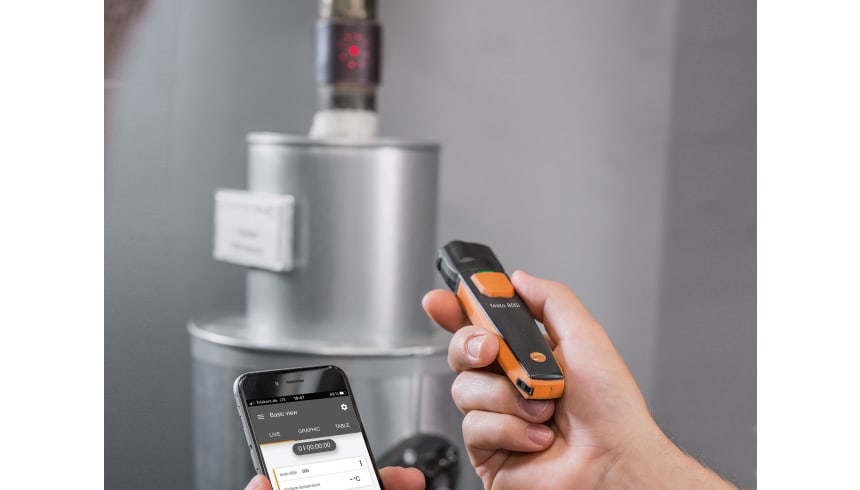

Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure
Measurement menu for pressure-drop test including alarm function
Display measurement data as a graph or table and analyze and send via testo Smart App
In conjunction with your smartphone/tablet, measure and check all heating system temperatures and pressures
For heating engineers: Compact kit containing three measuring instruments for carrying out your most important measuring tasks involving heating systems. The testo Smart App enables you to work more easily and efficiently: Use the measurement menus for pressure drop test with alarm function or for non-contact IR temperature measurement with image documentation including measuring value and measurement spot marking. Measurement data reports can be emailed directly as a PDF or Excel file.
Description
Delivery Scope
- 1 x testo 115i surface thermometer operated via smartphone, including batteries and calibration protocol (0560 2115 02)
- 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo Smart Case “Heating”, including foam insert (0516 0270)
Details on kit components
Details on kit components
testo 115i - Clamp thermometer operated via smartphone
Product no.: 0560 2115 02
Details on kit components
testo 510i – differential pressure measuring instrument with smartphone operation
Product no.: 0560 1510
Details on kit components
testo 805i – infrared thermometer with smartphone operation
Product no.: 0560 1805
Technical data
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Refrigerant | A2L / A3 compatibel |
| Storage temperature | -20 to +60 °C |
Differential pressure (internal sensor) - Piezoresistive
| Measuring range | -150 to +150 hPa |
|---|---|
| Accuracy | ±0.05 hPa (0 to +1 hPa) ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa) |
| Resolution | 0.01 hPa |
General technical data
| Weight | 92 g |
|---|---|
| Dimensions | 148 x 36 x 23 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -20 to +60 °C |
Temperature - Infrared
| Measuring range | -30 to +250 °C |
|---|---|
| Accuracy | ±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 97 g |
|---|---|
| Dimensions | 140 x 36 x 25 mm |
| Operating temperature | -10 to +50 °C |
| Product-/housing material | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 30 h |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -20 to +60 °C |
General technical data
| Dimensions | 250 x 180 x 70 mm |
|---|---|
| Product colour | Black |
| Weight | 249.8 g |
