testo Smart Probes VAC kit
0563 0003 10testo Smart Probes VAC kit
0563 0003 10Measurement of air and surface temperature, humidity, air velocity and volume flow
Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
Display measurement data as a graph or table and analyse and send via testo Smart App
In conjunction with your smartphone/tablet, carry out the most important measurements involved in air conditioning systems
For air-conditioning engineers: Compact kit containing four measuring instruments for your most important measuring tasks in, on and involving air conditioning systems. The testo Smart App enables you to work more easily and efficiently: Use intuitive measurement menus for volume flow measurement, for automatic calculation of the dew point and wet bulb temperature or for detecting areas susceptible to mould according to the traffic light principle. Measurement data reports can be emailed directly as a PDF or Excel file.
- 1 x testo 405i thermal anemometer operated via smartphone, including extendable (400 mm) telescope, batteries and calibration protocol (0560 1405)
- 1 x testo 410i vane anemometer operated via smartphone, including protective cap, batteries and calibration protocol (0560 1410)
- 1 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
- 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
- 1 x testo Smart Case “VAC”, including foam insert (0516 0260)
Customers who viewed this product also viewed
Customers who viewed this product also viewed
testo 410i - Bluetooth Vane Anemometer Smart Probe
- Measurement of air velocity, volume flow and temperature
- Display of the volume flow of multiple outlets in order to adjust systems
:
0560 1410
0560 1410
1
Customers who viewed this product also viewed
testo Smart Probes VAC kit
- Measurement of air and surface temperature, humidity, air velocity and volume flow
- Measurement menus for volume flow measurement in ducts and at outlets, identification of mould risk, easy image documentation including IR temperature reading and measurement spot marking
:
0563 0003 10
0563 0003 10
1
Customers who viewed this product also viewed
testo Smart Probes HVAC/R Ultimate kit
- For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
- All Smart Probes for temperature, pressure, humidity and flow in one kit
:
0563 0002 32
0563 0002 32
1
Customers who viewed this product also viewed
testo 416 - Digital 16 mm vane anemometer with App connection
- Simple, fast and precise flow measurement and volume flow calculation in the ventilation duct
- More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 850 mm)
:
0563 0416
0563 0416
1
Customers who viewed this product also viewed
testo 417 kit 1 - Vane anemometer with measurement funnels
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
:
0563 1417
0563 1417
1
Customers who viewed this product also viewed
testo 417 kit 2 - Vane anemometer with measuring funnels and flow straightener
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
:
0563 2417
0563 2417
1
Customers who viewed this product also viewed

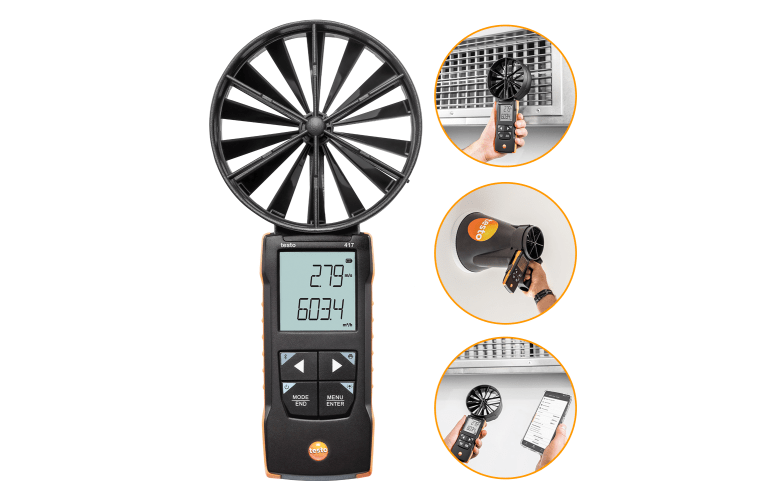

testo 417 - Digital 100 mm vane anemometer with App connection
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
:
0563 0417
0563 0417
1
Temperature - NTC
| Measuring range | -20 to +60 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
Velocity - Hot wire
| Measuring range | 0 to 30 m/s |
|---|---|
| Accuracy | ±(0.1 m/s + 5 % of mv) (0 to 2 m/s) ±(0.3 m/s + 5 % of mv) (2 to 15 m/s) |
| Resolution | 0.01 m/s |
General technical data
| Weight | 119.6 g |
|---|---|
| Dimensions | 200 x 30 x 41 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 15 h |
| Battery type | 3 AAA micro batteries |
| Diameter probe shaft | 12 mm |
| Diameter probe shaft tip | 9 mm |
| Length probe shaft | 400 mm |
| Storage temperature | -20 to +60 °C |
Temperature - NTC
| Measuring range | -20 to +60 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
Velocity - Vane
| Measuring range | 0.4 to 30 m/s |
|---|---|
| Accuracy | ±(0.2 m/s + 2 % of mv) (0.4 to 20 m/s) |
| Resolution | 0.1 m/s |
General technical data
| Weight | 117.8 g |
|---|---|
| Dimensions | 154 x 43 x 21 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 130 h |
| Battery type | 3 AAA micro batteries |
| Diameter vane | 30 mm |
| Storage temperature | -20 to +60 °C |
Temperature - NTC
| Measuring range | -20 to +60 °C |
|---|---|
| Accuracy | ±0.8 °C (-20 to 0 °C) ±0.5 °C (0 to +60 °C) |
| Resolution | 0.1 °C |
Humidity - Capacitive
| Measuring range | 0 to 100 %RH |
|---|---|
| Accuracy | Hysteresis: ±1.0 %RH ±2.0 %RH (35 to 65 %RH) (at +25°C) long-term stability: ±1 %RH / year ±5 %RH (< 10 %RH or > 90 %RH) ±3.0 %RH (65 to 90 %RH) (at +25°C) ±3.0 %RH (10 to 35 %RH) (at +25°C) |
| Resolution | 0.1 %RH |
General technical data
| Weight | 86.4 g |
|---|---|
| Dimensions | 218 x 30 x 27 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 150 h |
| Battery type | 3 AAA micro batteries |
| Length probe shaft | 100 mm |
| Data transfer | Bluetooth® |
| Radio range | 100 |
| Storage temperature | -20 to +60 °C |
Temperature - Infrared
| Measuring range | -30 to +250 °C |
|---|---|
| Accuracy | ±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±2 °C (-20 to -0.1 °C) ±2.5 °C (-30 to -20.1 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 97 g |
|---|---|
| Dimensions | 140 x 36 x 25 mm |
| Operating temperature | -10 to +50 °C |
| Product-/housing material | ABS / TPE |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.2 |
| Product colour | black/orange |
| Battery life | 30 h |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -20 to +60 °C |
General technical data
| Dimensions | 270 x 190 x 60 mm |
|---|---|
| Product colour | Black |
| Weight | 286 g |
Sets
Sets
testo Smart Probes HVAC/R Ultimate kit operated via smartphone
:
0563 0002 32
0563 0002 32
£ 849.00 £ 1,018.80
1
Sets
testo Smart Probes VAC kit operated via smartphone
:
0563 0003 10
0563 0003 10
£ 385.00 £ 462.00
1
Sets
testo Smart Probes AC and refrigeration test kit plus, operated via smartphone
:
0563 0002 41
0563 0002 41
£ 495.00 £ 594.00
1
Sets
testo Smart Probes mould kit operated via smartphone
:
0563 0005 10
0563 0005 10
£ 198.00 £ 237.60
1
Accessories
Accessories
testo Smart Case “VAC” – storage case for Smart Probes measuring instruments
:
0516 0260
0516 0260
£ 29.00 £ 34.80
1
Accessories
testo HVAC softcase storage case: for testo Smart Probes measuring instruments
:
0516 0283
0516 0283
£ 49.00 £ 58.80
1
Accessories
testo Smart App with the full range of functions - available as a free download
:
0501 5001
0501 5001
Accessories
testo 560i kit - Digital refrigerant scale and intelligent valve for automatic charging of refrigeration systems and heat pumps
:
0564 2560
0564 2560
£ 349.00 £ 418.80
1
Accessories
testo 560i - Digital refrigerant scale with Bluetooth
:
0564 1560
0564 1560
£ 225.00 £ 270.00
1
- Data sheet testo Smart Probes VAC kit(pdf, 609.65 kB)
- testo Smart Probes FAQ(pdf, 1.09 MB)
- UK Declaration of Conformity testo 410i(pdf, 65.59 kB)
- UK Declaration of Conformity testo 605i(pdf, 60.18 kB)
- UK declaration of conformity testo 405i(pdf, 34.96 kB)
- UK Declaration of Conformity testo 805i(pdf, 34.59 kB)
- Instruction manual testo Smart Probes(pdf, 1.72 MB)
