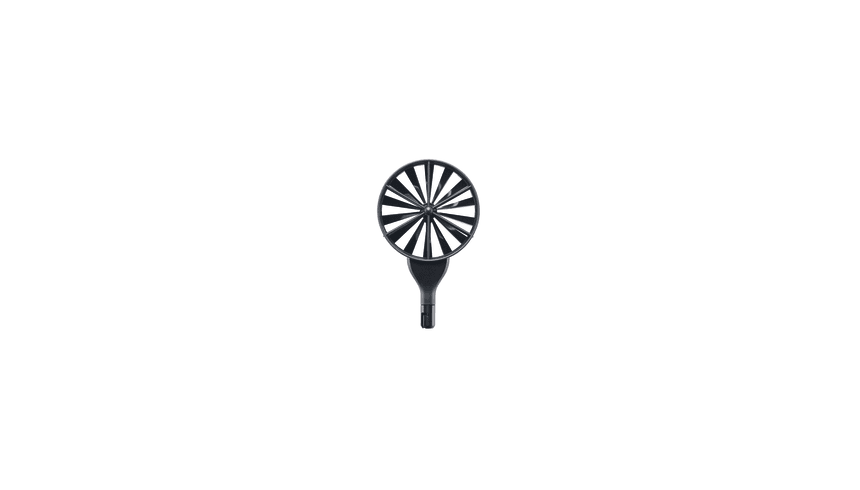

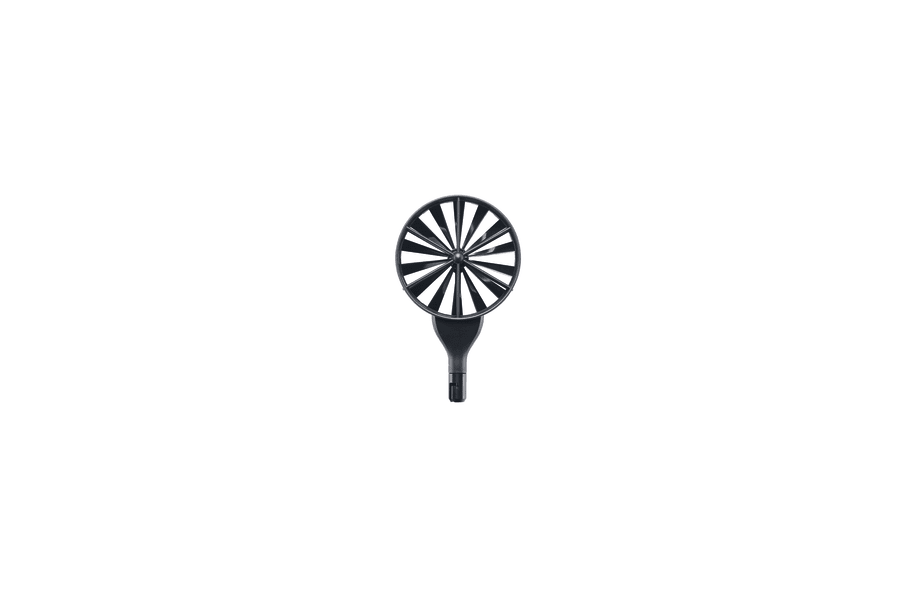

    100 mm vane probe head

    Product no. 0635 9430
    100 mm vane probe head
    $ 454.75
    1
    Find dealer
    Prices plus shipping costs
    Ships in approximately: 3 working days
    +1-484-773-0111
    Make a request
    Your advantages
  1. Intuitive: parallel determination of air velocity, volume flow and air temperature
  2. Convenient: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately) using the adapter
  3. Precise: get the right results in next to no time, even in turbulent air flow – using the optionally available funnel set and volume flow straightener
  4. Intelligent calibration concept: only send in the probe head for calibration
    5. More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the 100 mm vane probe head.

    Description

    Combine the probe head with the adapter for air velocity probes and simply plug it onto the handle with cable or Bluetooth. For convenient measurements at ceiling outlets, we recommend the extendable telescope for air velocity probes including 90° angle.

    Note: Please note that you need the handle adapter (order number 0554 2160) to use this probe head in conjunction with the handles.


    Delivery Scope

    100 mm vane probe head, bracket for testovent measurement funnel and calibration protocol.

    Technical data

    Temperature - NTC

    Measuring range
    -4° to 158 °F / -20 to +70 °C
    Accuracy
    ±0.9 °F / ±0.5 °C
    Resolution
    0.1 °F / 0.1 °C

    Velocity / Volume flow

    Measuring range
    59.1 to 6890 fpm / 0.3 to 35 m/s
    Accuracy
    19.7fpm +1.5% of mv (from 59 to 3937fpm) / ±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)
    39.4fpm +1.5% of mv (from 3938 to 6890fpm) / ±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
    Resolution
    1 fpm / 0.01 m/s

    General technical data

    Storage temperature
    -4° to 158 °F / -20 to +70 °C
    Weight
    4.4 oz. / 125 g
    Dimensions
    7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm
    Operating temperature
    -4° to 158 °F / -20 to +70 °C
    Probe head diameter
    3.937 in. / 100 mm
    Product colour
    Black
