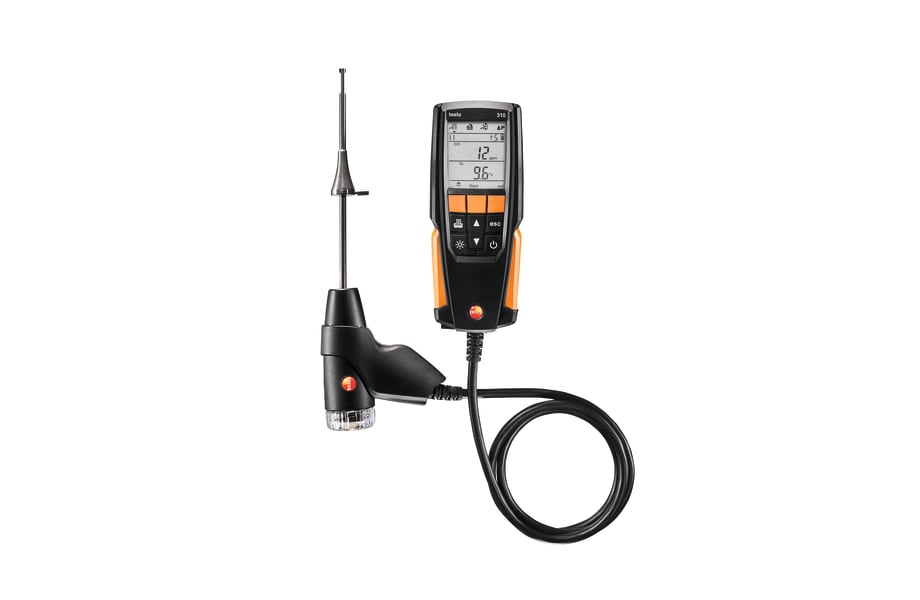

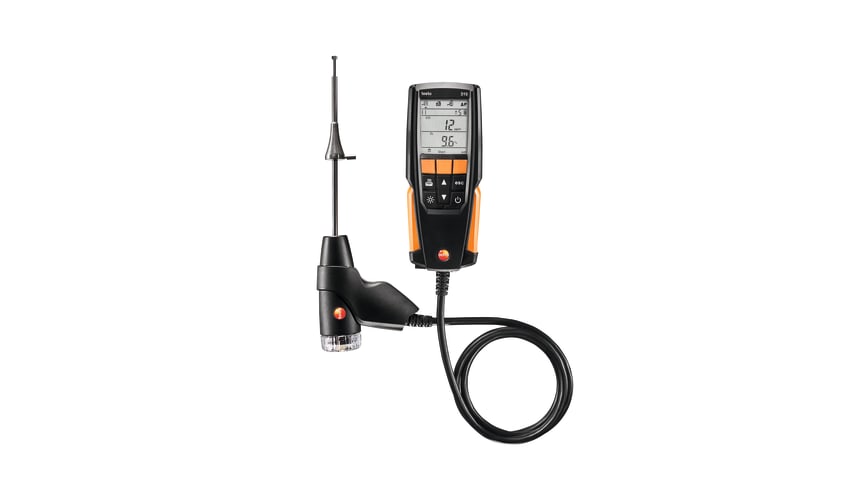

    testo 310 - Residential combustion analyzer kit

    0563 3100 01
  1. Simultaneous measurement of O2, CO, and flue gas and ambient temperatures
  2. All the measurements you need, including draft and pressure
  3. Bright backlit 2-line display and icons for easy viewing
  4. Fast 30-second startup so you can get testing quickly
  5. Integrated kink-resistant probe hose eliminates leaks
    6. The testo 310 residential combustion analyzer sets a new standard in affordable combustion analysis with its rugged housing, simple design, and advanced sensor technology.  With five different fuels to select from, it provides the flexibility you need for applications like checking furnace efficiency, boiler tuning, and water heater checks.
    Fully featured and priced right, the testo 310 residential combustion analyzer provides exceptional value and complete capabilities in combustion testing and furnace efficiency.  With its ability to perform both basic and more complex flue gas analysis, maintenance, safety checks, and furnace efficiency confirmations, the fully featured testo 310 residential combustion analyzer delivers plenty of combustion parameters.  The stainless steel probe and cone-stop are perfect for residential and boiler efficiency applications.  The testo 310 can be used for accurate heating adjustments, so you can get it right the first time, and every time.  With five different fuels to select from (natural gas, propane, fuel oil 2*, biomass 5%, and wood 20%), it provides the flexibility you need for all your tuning needs.  With an optional printer kit available, you can keep records of all readings taken.

    *NOTE: The testo 310 is recommended for infrequent oil measurements. For frequent oil use, please consider the testo 300.

    Measures:
    • O2, CO (with built-in NOx filter), CO2
    • Undiluted CO (CO air free)
    • Ambient CO
    • Draft & pressure
    • Temperature (flue & ambient)
    • Combustion / flue gas efficiency & excess air

    testo 310 combustion analyzer, lithium battery, sensors, probe with cone, hose, silicon tubing (for pressure), extra particulate filters (5), AC power supply (USB), pressure plugs (5), calibration certificate, and case

    General technical data

    Weight
    (with probe) Approx. 25 oz. / (with probe) Approx. 700 g
    Dimensions
    8 x 3 x 2 in. / 201 x 83 x 44 mm
    Operating temperature
    23° to 113 °F / -5 to +45 °C
    Display type
    LCD
    Display function
    Backlit 2-line display
    Power supply
    Battery: 1500 mAh, mains unit 5V/1A
    Storage temperature
    -4° to 122 °F / -20 to +50 °C

    Temperature - Type K TC

    Measuring range
    -4° to 212 °F / -20 to +100 °C
    Accuracy
    ±2 °F / ±1 °C
    Resolution
    0.1 °F / 0.1 °C
    Reaction time
    < 50 sec
    Temperature (ambient temperature)

    Temperature - Type J TC

    Measuring range
    32° to 752 °F / 0 to +400 °C
    Accuracy
    ±1.5 % of mv (> 212 °F) / ±1.5 % of mv (> 100 °C)
    ±1.8 °F (32° to 212 °F) / ±1 °C (0 to +100 °C)
    Resolution
    0.1 °F / 0.1 °C
    Reaction time
    < 50 sec
    Temperature (flue gas)

    Accessories

  6. Accessories
    Spare particle filter
    Replacement particle filter (10/pkg)
      :
      0554 0040
      $ 43.35
      1
    • Accessories
      Spare thermal paper
      Spare thermal paper, permanent ink
        :
        0554 0568
        $ 39.10
        1
      • Accessories
        USB power supply including cable
          :
          0554 1105
          $ 67.00
          1
        • Accessories
          testo 310 and IR Printer
          Testo IR printer
            :
            0554 3100

            • Faster, productive - tune ups, maintenance, and more...

            Whether you need to perform basic or more complex combustion tuning, perform maintenance or safety checks, or install new combustion units, the fully featured testo 310 delivers more combustion parameters. Use the 310 for accurate heating adjustment so you can get it right the first time - every time.

            Simple to use with reliable results

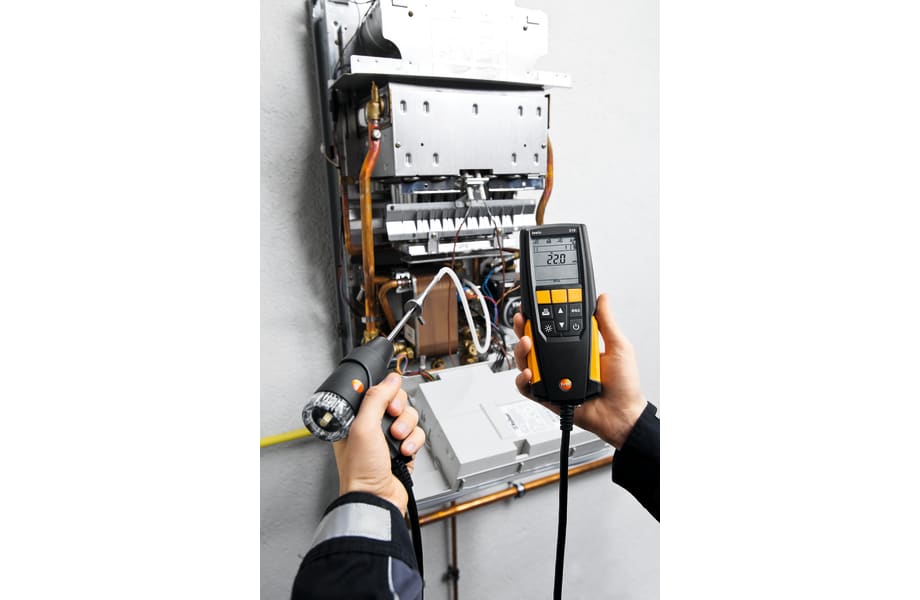

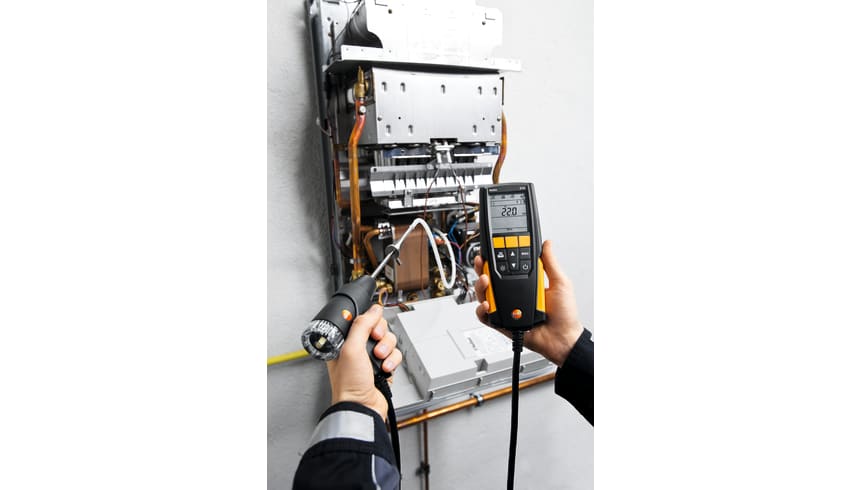

            The testo 310 eliminates the need for look up charts and the purchase and disposal of expensive chemicals. The kink-resistant hose is integrated into the housing to eliminate leaks. The stainless steel probe and cone-stop is perfect for residential furnace, boiler and water heater applications. With five different fuels to select from, it provides the flexibility you need for your tuning opportunities.

            Right residential combustion measurement every time

            The testo 310 residential combustion analyzer represents a new class of instruments for Testo and provides exceptional value and expanded capabilities in combustion testing. The 310 sets a new standard in reliable combustion tuning with its rugged housing, simple design and advanced sensor technology.

            The easy-to-read backlit display shows more measurements which provides more complete picture of the combustion process. Simple top-of-display icons show you the current measurement functions. After only 30 seconds the 310 is ready to test.

            Full featured – for better testing and tuning

            • O2, CO (w/ NOx filters standard), CO2

            • Draft & Pressure

            • Temperature (flue & ambient)

            • Combustion efficiency & excess air

            • Undiluted CO (CO air free)

            • Ambient CO
