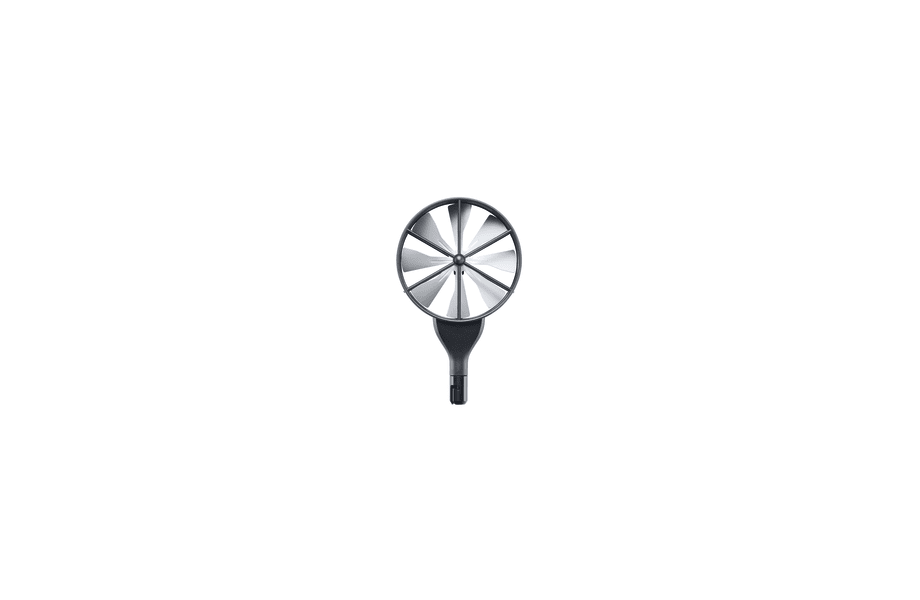

    High-precision 100 mm vane probe head including temperature sensor

    Product no. 0635 9370
    High-precision 100 mm vane probe head including temperature sensor
    $ 1,037.00
    1
    Find dealer
    Prices plus shipping costs
    Ships in approximately: 3 working days
    +1-484-773-0111
    Make a request
    Your advantages
  1. Intuitive: parallel determination of air velocity, volume flow and air temperature
  2. Precise: detects the smallest air velocities from as little as +0.1 m/s and is therefore ideal for laminar flow measurements in cleanrooms
  3. Convenient: probe head is easy to attach to the universal Bluetooth or cable handle or to the extendable telescope (all available to order separately)
  4. Intelligent calibration concept: only send in the probe head for calibration
    5. More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the high-precision 100 mm vane probe head.

    Description

    Combine the probe head with the handle adapter for air velocity probes and simply plug onto the handle with cable or Bluetooth. For convenient measurements at ceiling outlets, we recommend the extendable telescope for air velocity probes including 90° angle.

    Note: Please note that you need the handle adapter (order number 0554 2160) to use this probe head in conjunction with the handles.


    Delivery Scope

    High-precision 100 mm vane probe head including temperature sensor, bracket for testovent measurement funnel and calibration protocol.

    Technical data

    General technical data

    Storage temperature
    -4° to 158 °F / -20 to +70 °C
    Weight
    4.2 oz. / 120 g
    Dimensions
    7.1 x 4.1 x 1.8 in. / 180 x 105 x 46 mm
    Operating temperature
    -4° to 158 °F / -20 to +70 °C
    Probe head diameter
    3.937 in. / 100 mm
    Product colour
    Black

    Temperature - NTC

    Measuring range
    -4° to 158 °F / -20 to +70 °C
    Accuracy
    ±0.9 °F / ±0.5 °C
    Resolution
    0.1 °F / 0.1 °C

    Velocity / Volume flow

    Measuring range
    19.7 to 2953 fpm / 0.1 to 15 m/s
    Accuracy
    ±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
    Resolution
    1.97 fpm / 0.01 m/s
