    2. High temperature vane probe, Ø 1 in., with handle for contin...

    High temperature vane probe, Ø 1 in., with handle for contin... - High temperature vane probe, Ø 0.98 in.

    0635 6045
  1. Probe diameter: 25 mm
  2. Can be used at high temperatures of up to +350 °C
  3. Can be plugged onto the handle (included in the delivery)
  4. Measuring range: 0.6 to +20 m/s
    5. High temperature vane probe, Ø 1 in., with handle for continuous measurements up to +660°F
    Use the 25 mm vane probe to determine flow velocity and volume flow in ventilation ducts. It is particularly suitable for flow velocities of up to +20 m/s and can also be used at high temperatures of up to +350 °C.

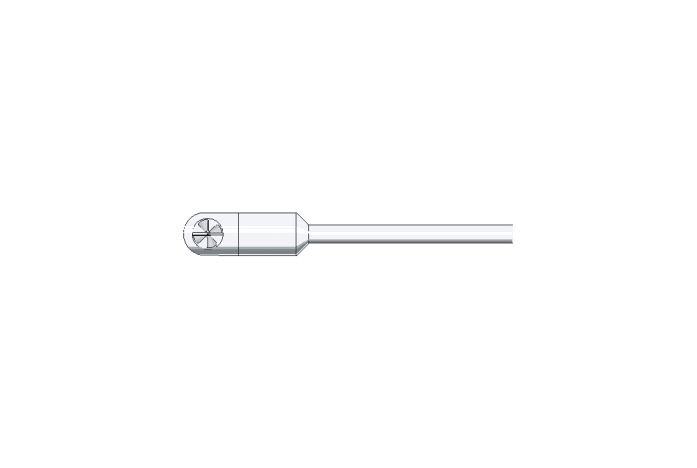

    Vane probe (Ø 25 mm) with handle.

    Temperature - Type K TC

    Measuring range
    -40.0° to 662.0 °F / -40 to +350 °C

    Velocity / Volume flow

    Measuring range
    +118.1 to +3937 fpm / +0.6 to +20 m/s
    Accuracy
    ±(59.1 fpm + 1.0 % of full-scale value) / ±(0.3 m/s + 1.0 % of fsv)

    General technical data

    Length probe shaft
    22.047 in. / 560 mm
    Probe head diameter
    0.984 in. / 25 mm
