    testo 417 - Rotating vane anemometer

    0560 4170
  1. Determining the volume flow by funnel measurement
  2. Compact anemometer with integrated 100 mm vane
  3. For measuring air flow, volumetric flow rate and temperature
  4. Measurement of flow velocity
  5. Availability of different attachable measurement funnels
  6. Flow direction detection
    7. Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product
    • testo-417-living-space-ventilation-02-2000x1500.jpg

      Determining the volume flow by funnel measurement

    The testo 417 rotating vane anemometer has a 4 inch vane, allowing for precise readings of air velocity, CFM, and temperature on its easy to read display. By inputting duct measurements into the 417, volume flow calculations can automatically be displayed. With the capability of quickly switching between air velocity and temperature measurements, using the testo 417 air flow meter is a breeze.
    • Resolution of 0.01 fpm ensures accurate readings
    • Quality design and construction for dependable use day after day
    • Auto-off function saves battery life
    • Timed average calculations ensure accurate readings when encountering eddies

    testo 417 vane anemometer with integrated 100 mm vane, calibration protocol, and battery

    General technical data

    Weight
    8 oz. / 230 g
    Dimensions
    11 x 4 x 2 in. / 277 x 105 x 45 mm
    Operating temperature
    32° to 122 °F / 0 to +50 °C
    Housing
    ABS
    Battery type
    9V block battery, 6F22
    Battery life
    50 h
    Storage temperature
    -40° to 158 °F / -40 to +70 °C

    Temperature - NTC

    Measuring range
    32° to 122 °F / 0 to +50 °C
    Accuracy
    ±0.9 °F / ±0.5 °C
    Resolution
    0.1 °F / 0.1 °C

    Velocity - Vane anemometer

    Measuring range
    +59.1 to +3937 fpm / +0.3 to +20 m/s
    Accuracy
    ±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
    Resolution
    1.97 fpm / 0.01 m/s

    Measurement of volumetric flow, flow velocity and temperature

    Every duct inlet and outlet should only contain the volumetric flow that according to calculations is a basic prerequisite to an efficient functional system.

    Particularly large vane anemometers are suitable for measuring the volumetric flows at duct outlets, as these integrate the flow velocity over a larger area thereby determining disturbance from the air grille (loop method).

    A volumetric flow rate funnel and a large vane are ideal when taking readings at the suction or blowing vents of air grilles and poppet valves. The entire volumetric flow is recorded with the aid of the funnel without the need for conversion on the basis of the flow velocity and area. This method of flow measurement is simple and reliable.

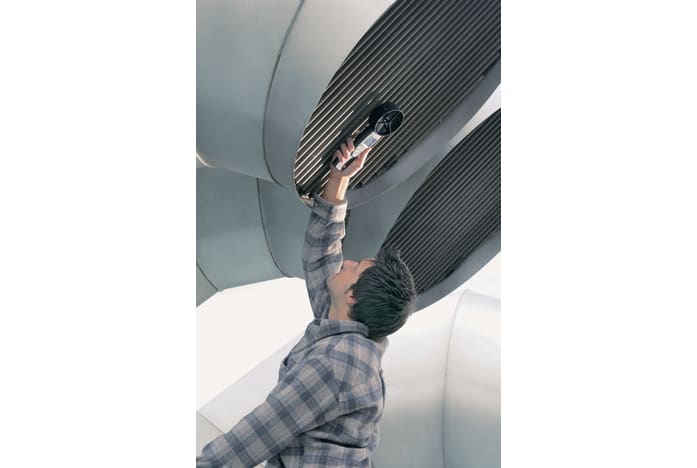

    The compact anemometer testo 417 with integrated flow/temperature vane (Ø 100 mm) is ideal for measuring the flow velocity, volumetric flow and temperature at duct outlets. The optional funnel set allows measurements at ventilation grilles and poppet valves.
