    testo 512 - Pressure and flow velocity measuring instrument 0 to 2000 hPa

    0560 5129
  1. 7 pressure units to choose from: psi, kPa, hPa, mmH2O, mmHg, inH2O, inHg
  2. Large measuring range up to 2000 hPa
  3. TopSafe protective case (optional) protects against impact, dirt, and spray water
  4. Backlit display / min and max values / hold function
  5. Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product

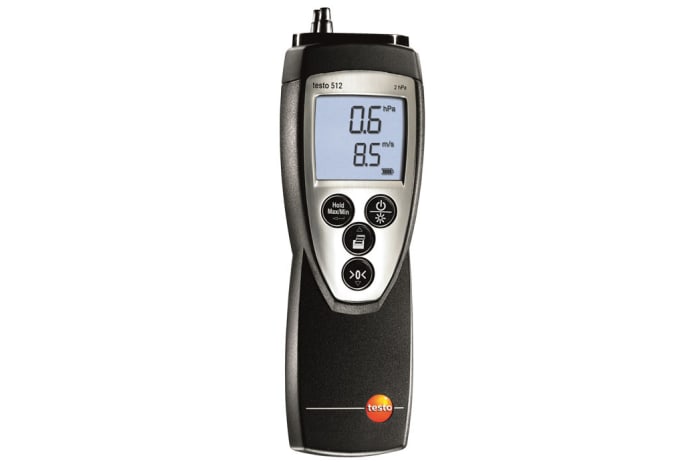

    The testo 512 differential pressure measuring instrument can be used to perform differential pressure measurements in a measuring range of 0 to 2000 hPa.

    The damping for moving averages is adjustable. The actual value shown can be held on the display by pressing the HOLD button. The measured minimum and maximum value can be displayed and stored on the instrument.

    You can display measuring values from your differential pressure measurements in any of 7 possible units: kPa, hPa, mmH2O, mmHg, psi, inH2O, and inHg. The values can be viewed easily on the large illuminated display of the differential pressure measuring instrument.

    Accessories for the differential pressure measuring instrument: further practical advantages

    With our optional accessories, you are investing in the durability of the instrument, and will benefit from practical use. The handy bag ensures safe storage and transportation of the differential pressure measuring instrument. The TopSafe protective case protects the instrument against impact, dirt, and spray water.

    With the testo fast printer, you can print out measurement protocols directly on site. Data transfer is carried out easily via infrared.

    testo 512 differential pressure measuring instrument (measuring range of 0 to 2000 hPa), including calibration protocol and batteries

    Differential Pressure

    Measuring range
    0 to +800 InH₂O / 0 to +2000 hPa
    Accuracy
    0.5 % Fs
    Resolution
    1 InH₂O / 1 hPa
    Overload
    ±1600 InH₂O / ±4000 hPa

    General technical data

    Dimensions
    8 x 2 x 2 in. / 202 x 57 x 42 mm
    Operating temperature
    32° to 140 °F / 0 to +60 °C
    Measuring medium
    All non-corrosive gases
    Seceltable units
    hPa, mbar, Pa, mmH₂O, inH₂O, inHg, mmHg, psi
    Battery type
    9V block battery, 6F22
    Battery life
    120 h
    Display type
    LCD
    Display size
    2 lines
    Storage temperature
    14° to 158 °F / -10 to +70 °C
    Weight
    11 oz. / 300 g

    Accessories

    Additional accessories and Spare parts

  6. Additional accessories and Spare parts
    Connection hose, silicone
    Connection hose, silicone, 16.4 ft, load up to 281 inH₂O
      :
      0554 0440
      $ 67.15
      1
    • Additional accessories and Spare parts
      Staurohr
      Pitot tube, stainless steel, 19.7 in.
        :
        0635 2045
        $ 199.75
        1
      • Additional accessories and Spare parts
        Staurohr
        Pitot tube, stainless steel, 13.8 in.
          :
          0635 2145
          $ 174.25
          1
        • Additional accessories and Spare parts
          Staurohr
          Pitot tube, stainless steel, 3.3 ft
            :
            0635 2345
            $ 500.65
            1
          • Cases

          • Cases
            testo 0516 1200 case
              :
              0516 1200
              $ 89.25
              1
            • Cases
              testo 0516 1201 case
                :
                0516 1201
                $ 63.75
                1
              • Printer and accessories

                Transport Case

              • Transport Case
                Soft case for measuring instrument
                Case for instrument
                  :
                  0516 0210
                  $ 55.00
                  1
                • Transport Case
                  TopSave
                  TopSafe, protection from impact and dirt
                    :
                    0516 0221
                    $ 56.00
                    1
