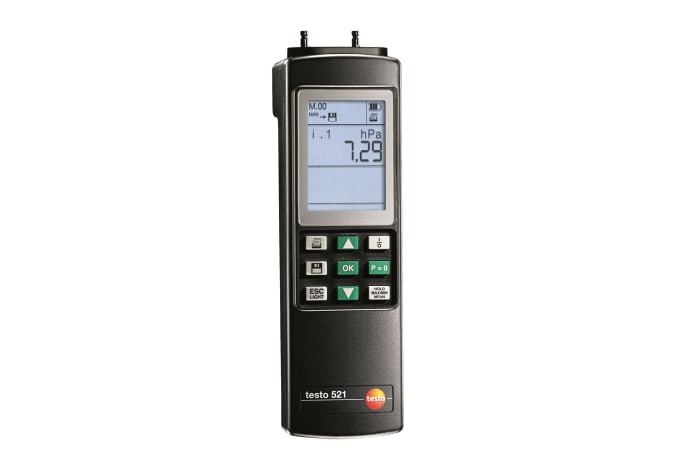

    testo 521-3 - Differential pressure measuring instrument 0 to 2.5 hPa

    0560 5213
  1. Integrated temperature-compensated differential pressure sensor with accuracy of up to ± 0.5 Pa
  2. Calculation of the flow velocity and the volume flow via Pitot tube (optional)
  3. Direct zeroing of the display values of pressure probes
  4. 2 probe inputs for additional pressure and temperature probes

    5. Product no longer available. Are you familiar with the alternative?
    Why not enjoy the benefits that it has to offer: >> To the product
    Using the testo 521-3, even the smallest differential pressures, up to 250 Pa, are measured. High accuracy and a resolution of 0.1 Pa mean the instrument is ideal for differential pressure measurements in clean rooms.
    When used with a pitot tube, the internal pressure sensor measures flow speeds in the range of 0.01 to 3937 fpm.

    testo 521-3 differential pressure measuring instrument, including calibration protocol and batteries

    Customers who viewed this product also viewed

  5. Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 1 with Bluetooth®
    testo 440 dP - Air flow ComboKit 1 with Bluetooth and delta P
    • A measuring instrument for all climate-related parameters
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
    :
    0563 4409
    1
  6. Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
    testo 440 dP - Air flow ComboKit 2 with Bluetooth and delta P
    • A measuring instrument for all climate-related parameters
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
    :
    0563 4410
    1
  7. Customers who viewed this product also viewed
    testo 510 Set
    testo 510 - Digital manometer
    • Pocket-sized temperature-compensated differential pressure measurement
    • Illuminated display
    :
    0563 0510
    1
  8. Customers who viewed this product also viewed
    testo 420
    testo 420 - Differential pressure manometer
    • Differential pressure measurement, useful for checking filters in air conditioning and ventilation systems
    • Calculate flow velocity and volume flow using an optional pitot tube
    :
    0560 0420
    1
  9. Customers who viewed this product also viewed
    testo 440 dP Air velocity and IAQ measuring instrument including differential pressure sensor
    testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor
    • A measuring instrument for all climate-related parameters
    • Includes a differential pressure sensor: for Pitot tube measurement and monitoring filters
    :
    0560 4402
    1
  10. Customers who viewed this product also viewed
    testo 400 Universal IAQ instrument
    testo 400 - Universal Air Flow and IAQ Instrument
    • A measuring instrument for all climate-related parameters
    • Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
    :
    0560 0400
    1
  11. Customers who viewed this product also viewed
    testo 512-1
    testo 512-1 - Digital differential pressure measuring instrument with App connection
    • Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
    • Reliable measurement results due to position-independent differential pressure sensor with high accuracy
    :
    0563 1512
    1

    12. Temperature - NTC

    Measuring range
    -40° to 302 °F / -40 to +150 °C
    Accuracy
    ±0.7 °F (Remaining Range)* / ±0.4 °C (Remaining Range)*
    ±0.4 °F (14° to 122 °F)* / ±0.2 °C (-10 to +50 °C)*
    Resolution
    0.1 °F / 0.1 °C
    *Accuracy information applies only to instrument without probes connected

    Temperature - Type K TC

    Measuring range
    -328° to 2498 °F / -200 to +1370 °C
    Accuracy
    ±0.7 °F (-148° to 392 °F)* / ±0.4 °C (-100 to +200 °C)*
    ±2 °F (Remaining Range)* / ±1 °C (Remaining Range)*
    Resolution
    0.1 °F / 0.1 °C
    *Accuracy information applies only to instrument without probes connected

    Differential pressure (internal sensor) - Piezoresistive

    Measuring range
    0 to 1.0 InH₂O** / 0 to 2.5 hPa**
    Accuracy
    ±(0.0 InH₂O ±0.5 % of mv) (0.1 to 1 InH₂O) / ±(0.5 Pa ±0.5 % of mv) (20.1 to 250 Pa)
    ±0.0 InH₂O (0 to 0 InH₂O) / ±0.5 Pa (0 to 20 Pa)
    Resolution
    0.1 InH₂O / 0.1 Pa
    Static pressure
    400 InH₂O / 1000 hPa
    Overload
    20 InH₂O / 50 hPa
    Zeroing
    to 0.2 InH₂O / to 0.5 hPa
    **Sensor is not suitable for long-term measurements

    Differential pressure probes

  12. Differential pressure probes
    Precision pressure probe, 100 Pa, measures differential pressure and velocity (with Pitot tube)
      :
      0638 1347
    • Differential pressure probes
      Drucksonde-0638-1347-neutral
      Meas.Range 0 to + 14.5 psi
        :
        0638 1647

        • Pitot tubes

      • Pitot tubes
        Staurohr
        Pitot tube, stainless steel, 19.7 in.
          :
          0635 2045
          $ 199.75
          1
        • Pitot tubes
          Staurohr
          Pitot tube, stainless steel, 13.8 in.
            :
            0635 2145
            $ 174.25
            1

            • Pressure Probe Accessories

          • Pressure Probe Accessories
            0638 1847_absolute-pressure-probe
            Pressure probe, 29 psi, measures absolute pressure
              :
              0638 1847

              • Relative pressure probe

            • Relative pressure probe
              low-pressure-high-pressure-probe
              Low pressure probe, refrigerant-proof stainless steel, without cable
                :
                0638 1741
                $ 814.00
                1
              • Relative pressure probe
                low-pressure-high-pressure-probe
                High pressure probe, refrigerant-proof stainless steel, up to 435 psi, without cable
                  :
                  0638 1841

                  • Temperature probes

                • Temperature probes
                  Super quick-action immersion/penetration probe for measurements in liquids
                    :
                    0604 0493

                    • Accessories for probes

                  • Accessories for probes
                    Connection cable for pressure probes 0638 1740, 0638 1840, 0638 1940
                      :
                      0409 0202
                      $ 182.00
                      1
                    • Accessories for probes
                      Connection cable
                      Connection cable.
                        :
                        0430 0143
                      • Accessories for probes
                        Connection hose, silicone
                        Connection hose, silicone, 16.4 ft, load up to 281 inH₂O
                          :
                          0554 0440
                          $ 67.15
                          1
                        • Accessories for probes
                          No picture available
                          Connection hose set, 6.5 x 3.2 ft., coiled, incl. 1/8" screw connection
                            :
                            0554 0441
                          • Accessories for probes
                            Adapter to connect NiCr-Ni thermocouples and probes with open wire ends
                              :
                              0600 1693

                              • Additional accessories and Spare parts

                            • Additional accessories and Spare parts
                              9V rech. battery for instrument
                              9V rechargeable battery for instrument
                                :
                                0515 0025
                              • Additional accessories and Spare parts
                                Desk-top power supply
                                Power supply for compact gas drier and flue gas analyzer
                                  :
                                  0554 1143
                                  $ 182.00
                                  1

                                  • Printer and accessories

                                • Printer and accessories
                                  testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
                                  Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site.  Internal magnets will hold the printer to magnetic surfaces for hands free operation. *Compatible with any Testo device capable of IR or IRDA
                                    :
                                    0554 0549
                                    $ 356.15
                                    1
                                  • Printer and accessories
                                    Spare thermal paper
                                    Spare thermal paper, permanent ink
                                      :
                                      0554 0568
                                      $ 39.10
                                      1
                                    • Printer and accessories
                                      External fast charger
                                      External recharger incld. 4 Ni-NMH rechargeable batteries with built-in international power supply - 100-240 V, 300 MA, 50/60 Hz, 12 VA/instrument
                                        :
                                        0554 0610

                                        • Software and Accessories

                                      • Software and Accessories
                                        RS232 cable
                                          :
                                          0409 0178
                                          $ 104.00

                                          • Transport Case

                                        • Transport Case
                                          TopSafe
                                          TopSafe (protective case)
                                            :
                                            0516 0446
