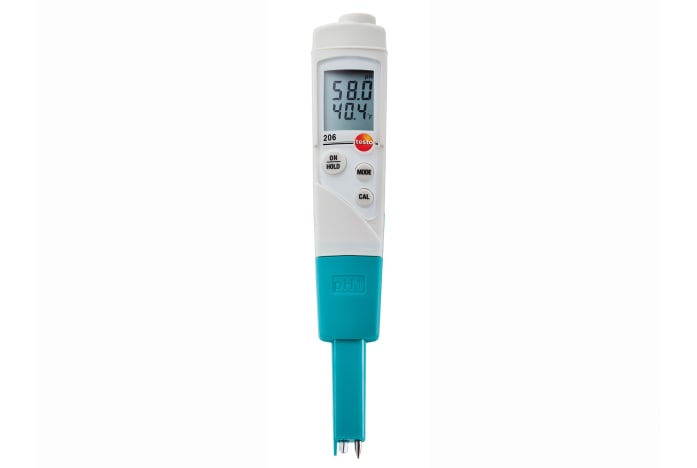

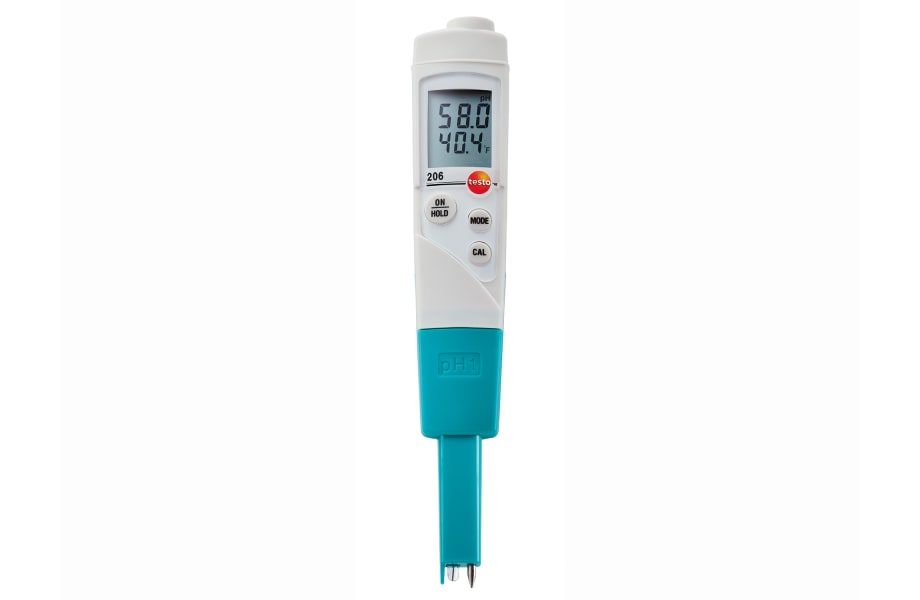

    testo 206 pH1 - Instrument kit

    0563 2061
    $ 208.25
    1
  1. Ideal for measuring the pH value of liquids
  2. The integrated temperature probe enables automatic temperature compensation
  3. Maintenance-free gel electrolyte
  4. Robust, waterproof and dishwasher-safe protective case (TopSafe, protection class IP68)
    5. Perfectly equipped for pH measurement in liquids, the universal testo 206 pH1 pH/temperature measuring instrument features innovative probe technology. Particularly suitable for use in the food sector.

    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    This is a versatile pH measuring instrument with innovative probe engineering for liquid and semi-solid food. The robust probe heads with temperature probes are interchangeable and are not affected by dirt and dust, thanks to the dual wall diaphragm.

    testo 206 pH1 pH temperature measuring instrument, pH1 probe head for liquids, incl. storage cap with gel, TopSafe and belt/wall bracket

    Temperature - NTC

    Measuring range
    32° to 140 °F (Short-term to +80 °C max. 5 min) / 0 to +60 °C (Short-term to +80 °C max. 5 min)
    Accuracy
    ±0.7 °F / ±0.4 °C
    Resolution
    0.1 °F / 0.1 °C

    pH - Electrode

    Measuring range
    0 to 14 pH
    Accuracy
    ±0.02 pH
    Resolution
    0.01 pH

    General technical data

    Weight
    2 oz. / 69 g
    Dimensions
    4.3 x 1.3 x 0.8 (without probe and TopSafe) / 110 x 33 x 20 (without probe and TopSafe)
    7.8 x 1.3 x 0.8 in. ((LxWxH)) / 197 x 33 x 20 mm ((LxWxH))
    Operating temperature
    32° to 140 °F / 0 to +60 °C
    Housing
    ABS
    Protection class
    IP68
    Product colour
    white
    Authorizations
    CE 2014/30/EU
    Length probe shaft
    1.378 in. / 35 mm
    0.138 in. / 3.5 mm
    Diameter probe shaft
    0.591 in. / 15 mm
    Battery type
    1 x CR2032
    Battery life
    80 h (Auto Off 10 min)
    Display type
    LCD
    Display size
    2 lines
    Number of channels
    2-channel
    Measuring rate
    2 measurements per second
    Temperature compensation
    automatic
    Storage temperature
    -4° to 158 °F / -20 to +70 °C

    The professional pH measuring instrument for drinking water analysis

    With the development of different, breakproof probe geometries, Testo is making available special solutions for liquid as well as for viscoplastic substances. The leakproof storage solution is also new. pH probes must be stored in moist conditions, when not in use, in order to prevent the glass membrane coating around the measurement electrode and the diaphragm from drying out.

    Pure water alone should not be used since water would release the conducting components contained in the probe electrolytes. A potassium chloride solution is usually used for this purpose. As with every liquid, it can leak which, particularly in the food branch, can lead to contamination of raw foodstuffs or products. Testo, with its new gel storage, has eliminated this disadvantage. The potassium chloride solution is available in a container in gel form. What doesn’t drip can’t leak!


    The professional pH measuring instrument for the food sector

    Measurement of the pH value plays an important role in many areas. Anywhere where

    there are chemical and biochemical reactions,the pH value has an important indicator function.

    Compact pH measuring instrument for measuring liquids. Built-in temperature probe for efficient temperature compensation. Automatic recognition of a stable reading makes it easier to measure. The "TopSafe" case included makes the instrument ideal for outdoor applications or

    for use in tough industrial conditions.

    Your benefits

    • Versatile, accurate pH measuring instrument

    • Not affected by dust or dirt thanks to the TopSafe protection case

    • Maintenance-free gel electrode

    • Built-in temperature probe

    • 2 line display

    • Automatic full scale value recognition

    • 1, 2, or 3 point calibration possible

    testo-206

    pH measurement in the cosmetics industry

    The pH value is a crucial factor when it comes to assessing the quality of cosmetic products. Cosmetic products which are too acidic can cause skin irritations or rashes. The pH value of the skin is normally between 5 and 6.5 thanks to its natural protective acid mantle. “Skin-neutral” cleansers are actually slightly acidic and can support the skin's protective acid mantle, which is particularly important for people with sensitive skin. On the other hand, alkaline cleansers could encourage the skin's process of replenishing its natural oils.

    The pH value of cosmetics must therefore be monitored, controlled and, if necessary, adjusted right from the production stage, so that the end product has the required value. The testo 206 one-hand pH measuring instrument helps you to do this through:

    - Direct measurement in process for fast assessment of the pH value

    - Three different versions of the product – depending on the medium in which the measurement is being made (e.g. liquid, paste-like, etc.)

    - Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68) to meet strict cleaning requirements in the pharmaceutical sector.

    - Built-in temperature probe for simultaneous measurement of two parameters

    - Maintenance-free gel electrolyte

    - 1, 2 or 3-point calibration possible
