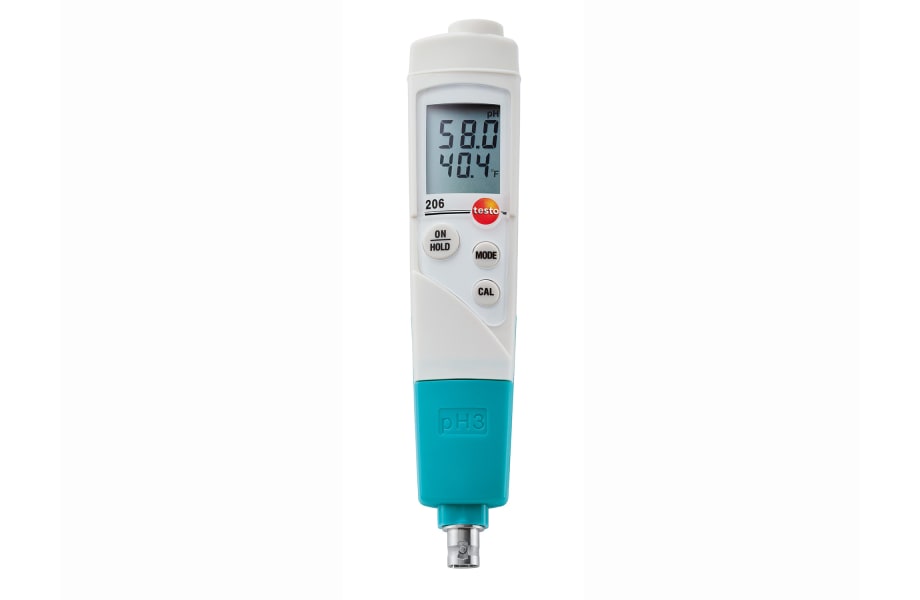

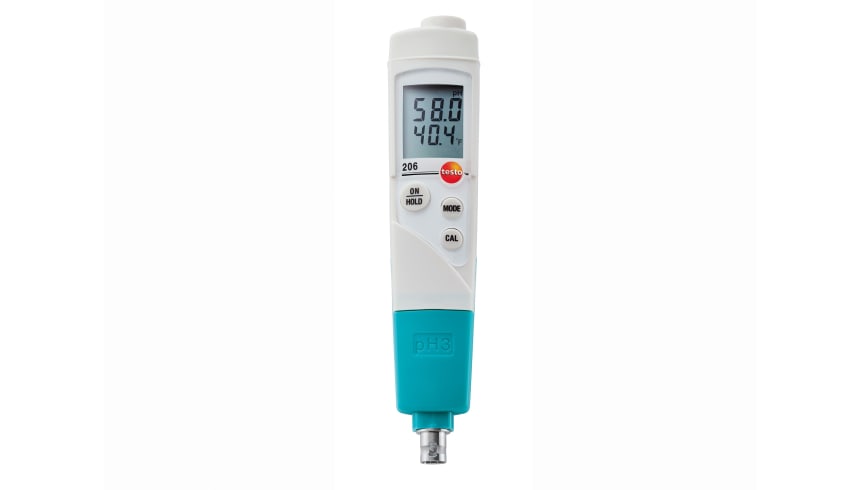

    testo 206 pH3 - One-hand pH/temperature measuring instrument for connecting external probes

    0563 2063
    $ 169.15
    1
  1. External pH probe can be connected – for flexible use
  2. Automatic final value recognition
  3. Robust and waterproof thanks to TopSafe (IP68)
  4. Automatic temperature evaluation (if a probe with temperature sensor is connected)
    5. Testo 206 pH3 set, one-hand pH/°C measuring instrument, pH3 probe head with BNC interface, incl. TopSafe and belt/wall holder
    The testo 206 pH3 is equipped with a BNC socket which makes it possible to connect all pH probes to the instrument. The temperature value supplied is automatically analysed if Testo pH probes are used with a built-in temperature sensor. The temperature can be adjusted manually in probes without a temperature sensor. Automatic recognition of a stable reading facilitates the measurement process. The instrument is ideal for outdoor use or use in tough industrial conditions thanks to the "TopSafe" protection case supplied.

    testo 206 pH3 pH measuring instrument with BNC interface, incl. TopSafe and belt/wall bracket

    Temperature - NTC

    Measuring range
    32 to 176 °F (depending on the pH probe used) / 0 to 80 °C (depending on the pH probe used)
    Accuracy
    ±0.7 °F / ±0.4 °C
    Resolution
    0.1 °F / 0.1 °C

    pH - Electrode

    Measuring range
    0 to 14 pH
    Accuracy
    ±0.02 pH
    Resolution
    0.01 pH

    General technical data

    Weight
    2.4 oz. / 69 g
    Dimensions
    4.3 x 1.3 x 0.8 in. (without probe and TopSafe) / 110 x 33 x 20 mm (without probe and TopSafe)
    7.8 x 1.3 x 0.8 in. ((LxWxH)) / 197 x 33 x 20 mm ((LxWxH))
    Operating temperature
    32° to 140 °F / 0 to +60 °C
    Housing
    ABS
    Protection class
    IP68
    Product colour
    white
    Battery type
    1 x CR2032
    Battery life
    80 h (Auto Off 10 min)
    Display type
    LCD
    Display size
    2 lines
    Interface
    BNC interface
    Number of channels
    2-channel
    Measuring rate
    2 measurements per second
    Temperature compensation
    Automatically or manually (dependant on external probe)
    Storage temperature
    -4° to 158 °F / -20 to +70 °C

    Accessories

  5. Accessories
    ph buffer solution 4.01
    pH buffer solution 4.01 in dosing bottle (250 ml)
      :
      0554 2061
      $ 34.00
      1
    • Accessories
      pH buffer solution 7.00
      pH buffer solution 7.00 in dosing bottle (250 ml)
        :
        0554 2063
        $ 34.00
        1
      • Accessories
        Sorage solution
        Storage solution; 50ml
          :
          0554 2318
          $ 62.00
          1

          • The professional pH measuring instrument for drinking water analysis

          With the development of different, breakproof probe geometries, Testo is making available special solutions for liquid as well as for viscoplastic substances. The leakproof storage solution is also new. pH probes must be stored in moist conditions, when not in use, in order to prevent the glass membrane coating around the measurement electrode and the diaphragm from drying out.

          Pure water alone should not be used since water would release the conducting components contained in the probe electrolytes. A potassium chloride solution is usually used for this purpose. As with every liquid, it can leak which, particularly in the food branch, can lead to contamination of raw foodstuffs or products. Testo, with its new gel storage, has eliminated this disadvantage. The potassium chloride solution is available in a container in gel form. What doesn’t drip can’t leak!

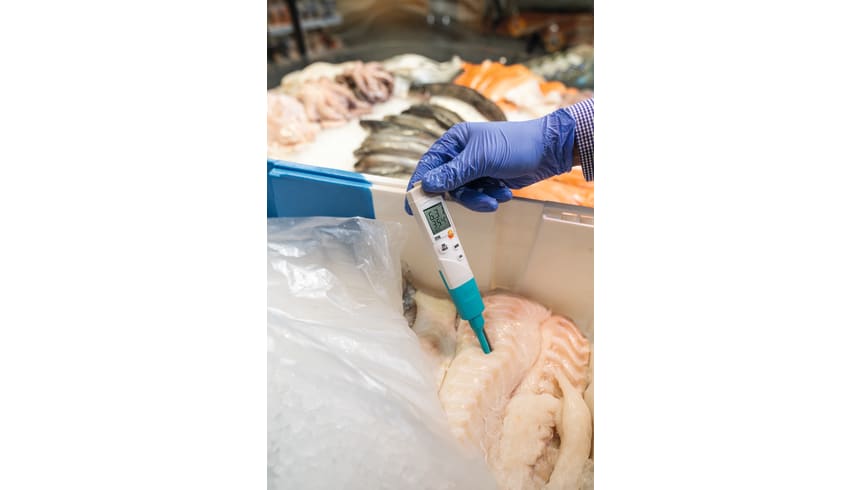

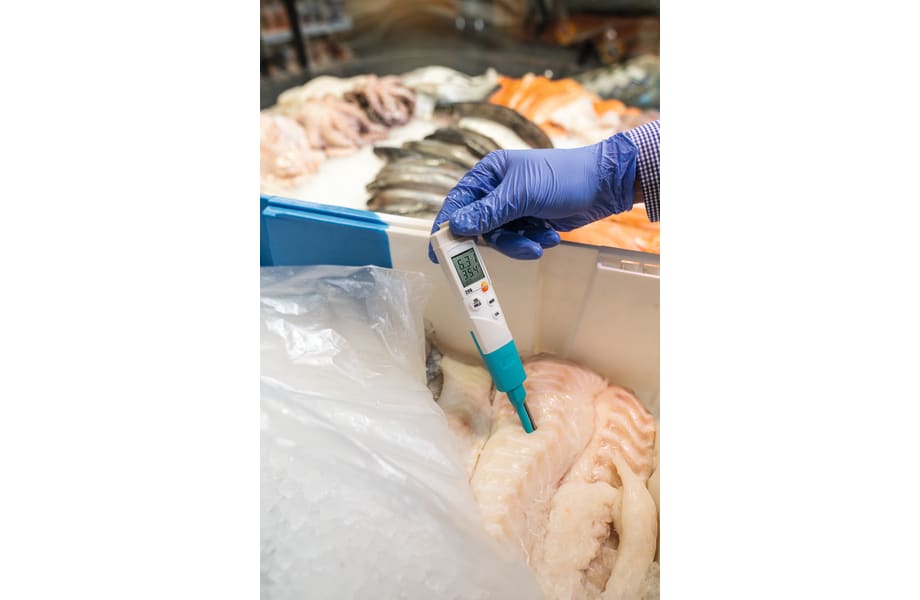

          The professional pH measuring instrument for the food sector

          Measurement of the pH value plays an important role in many areas. Anywhere where

          there are chemical and biochemical reactions,the pH value has an important indicator function.

          Compact pH measuring instrument for measuring liquids. Built-in temperature probe for efficient temperature compensation. Automatic recognition of a stable reading makes it easier to measure. The "TopSafe" case included makes the instrument ideal for outdoor applications or

          for use in tough industrial conditions.

          Your benefits

          • Versatile, accurate pH measuring instrument

          • Not affected by dust or dirt thanks to the TopSafe protection case

          • Maintenance-free gel electrode

          • Built-in temperature probe

          • 2 line display

          • Automatic full scale value recognition

          • 1, 2, or 3 point calibration possible

          testo-206

          pH measurement in the cosmetics industry

          The pH value is a crucial factor when it comes to assessing the quality of cosmetic products. Cosmetic products which are too acidic can cause skin irritations or rashes. The pH value of the skin is normally between 5 and 6.5 thanks to its natural protective acid mantle. “Skin-neutral” cleansers are actually slightly acidic and can support the skin's protective acid mantle, which is particularly important for people with sensitive skin. On the other hand, alkaline cleansers could encourage the skin's process of replenishing its natural oils.

          The pH value of cosmetics must therefore be monitored, controlled and, if necessary, adjusted right from the production stage, so that the end product has the required value. The testo 206 one-hand pH measuring instrument helps you to do this through:

          - Direct measurement in process for fast assessment of the pH value

          - Three different versions of the product – depending on the medium in which the measurement is being made (e.g. liquid, paste-like, etc.)

          - Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68) to meet strict cleaning requirements in the pharmaceutical sector.

          - Built-in temperature probe for simultaneous measurement of two parameters

          - Maintenance-free gel electrolyte

          - 1, 2 or 3-point calibration possible
