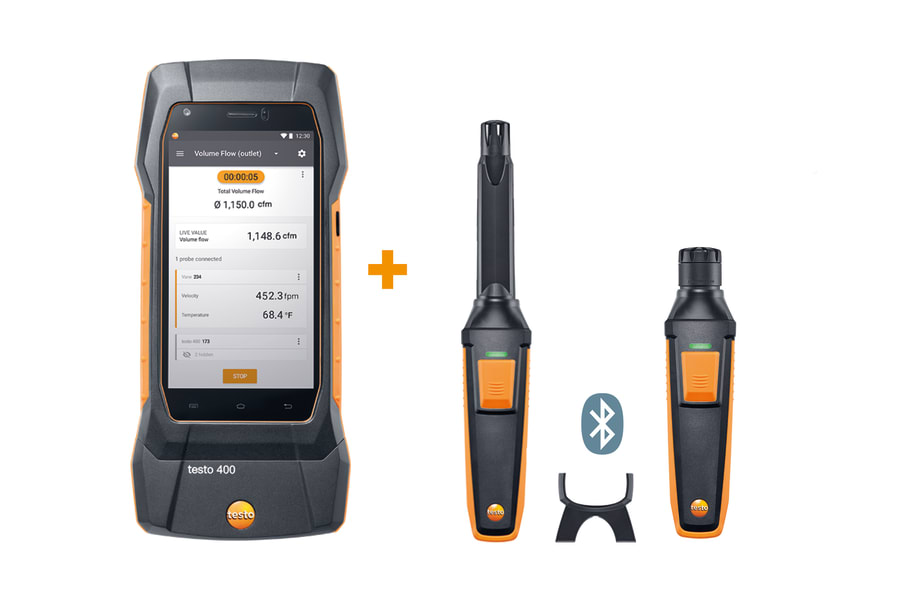

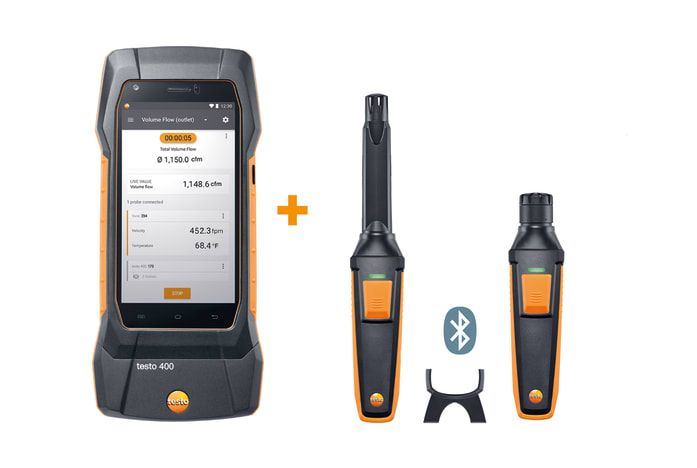

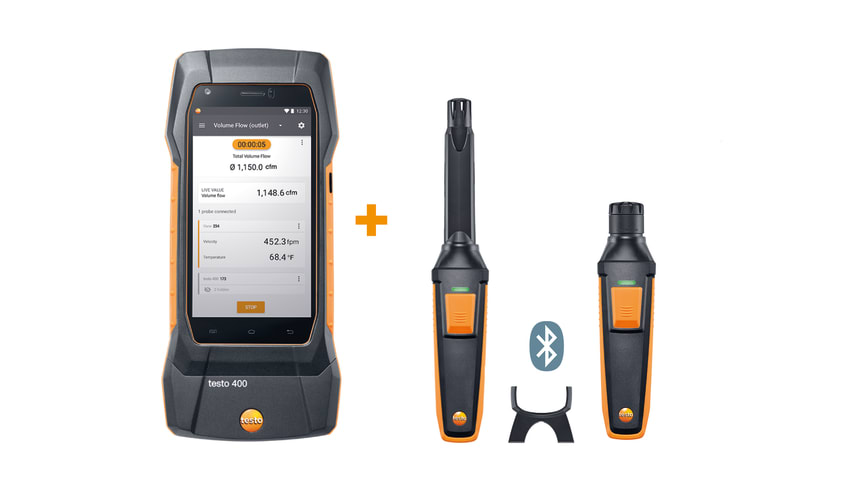

testo 400 IAQ Kit - for Commissioning and IAQ investigation professionals

Description

The testo 400 IAQ kit is the universal measuring instrument for all Commissioning and IAQ professionals, enabling them to measure, document, and analyze all IAQ parameters with just one instrument.

Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle – for error-free measurements
Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
Complete and send measuring values with full documentation, including photos, comments and your own logo directly on site – get to the next job faster
Probe heads can be changed without restarting the instrument – easy handling with no lost time
Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display – fewer downtimes and high-precision measurements

As consultants, experts, technical service providers, or service technicians in the air conditioning and ventilation sector, the testo 400 therefore supports you in the truly smart performance of your measuring tasks. Relevant quality parameters in industrial production and manufacturing processes can also be reliably and accurately checked using the testo 400.

Technical data

testo 400 – universal IAQ instrument

Product no. 0560 0400

Temperature - NTC

Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.5 % of mv ±1 Digit (Remaining Range) ±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C)
Resolution	0 °F / 0.1 °C

Temperature - Type K TC

Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Differential pressure (internal sensor) - Piezoresistive

Measuring range	0 to +80 InH₂O / 0 to +200 hPa
Accuracy	±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa) ±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa)
Resolution	0.000 InH₂O / 0.001 hPa

Absolute Pressure (internal sensor and external probe)

Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa

General technical data

Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth®; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.

Transport case for air flow measurements

Product no. 0516 1400

General technical data

Weight	98.77 oz. / 2800 g
Dimensions	20.5 x 16.1 x 6.3 in. LxWxH / 520 x 410 x 160 mm LxWxH
Housing	Plastic
Product colour	Black

CO probe (digital) with Bluetooth^®: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm

Product no. 0632 1271

Ambient CO

Measuring range	0 to 100 ppm 100.1 to 500 ppm
Accuracy	±10 % of mv (100.1 to 500 ppm) ±5 ppm (30.1 to 100 ppm) ±3 ppm (0 to 30 ppm)
Resolution	0.1 ppm

General technical data

Storage temperature	-4° to 122 °F / -20 to +50 °C (recommended: 14° to 86 °F) / (recommended: -10 to +30 °C)
Weight	5.6 oz. / 160 g
Dimensions	7.9 x 2.0 x 1.6 in. / 200 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length probe shaft	1.181 in. / 30 mm
Probe head diameter	1.181 in. / 30 mm
Product colour	black/orange
Battery type	4 x AA batteries
Battery life	70 h
Data transfer	Bluetooth®
Radio range	65.616 ft. / 20 m

CO₂ probe (digital) with Bluetooth^® including temperature and humidity sensor: for measuring the indoor air quality in offices, production areas or storage facilities – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH

Product no. 0632 1551

Temperature - NTC

Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C

Humidity - Capacitive

Measuring range	5 to 95 %rH
Accuracy	Hysteresis: ±1.0 %rH ±3 %rH (65 to 90 %rH) ±2 %rH (35 to 65 %rH) ±5 %rH (Remaining Range) long-term stability: ±1 %RH / year ±0.06 %rF/K (32° to +122 °F) / ±0.06 %RH/K (0 to +50 °C) ±3 %rH (10 to 35 %rH)
Resolution	0.1 %rH

Absolute Pressure

Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
Accuracy	±1.2 InH₂O / ±3.0 hPa
Resolution	0.1 InH₂O / 0.1 hPa

Ambient CO₂

Measuring range	0 to 10000 ppm
Accuracy	±(100 ppm + 5 % of mv) (5001 to 10000 ) ±(50 ppm + 3 % of mv) (0 to 5000 )
Resolution	1 ppm

General technical data

Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	6.9 oz. / 195 g
Dimensions	11.6 x 2.0 x 1.6 in. / 295 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length probe shaft	5.118 in. / 130 mm
Probe head diameter	1.181 in. / 30 mm
Product colour	black/orange
Battery life	21,5 h
Battery type	4 x AA batteries
Data transfer	Bluetooth®
Radio range	65.616 ft. / 20 m

Applications

IAQ measurements in the field of air conditioning and ventilation

IAQ measurements: CO2, CO, temperature and humidity, including dew point and wet bulb temperature calculations for verifying building HVAC system performance parameter.
High-precision, location-independent and built-in differential pressure sensor, smart and intuitive measurement programs for IAQ measurements in accordance with the standards, creation of documentation on site, e-mailing of reports, versatile combination options with IAQ probes.
Measurements in laboratories and cleanrooms: Flow measurements in fume cupboards, differential pressure measurements and laminar flow measurements in cleanrooms, humidity measurements in cleanrooms with additional probes.
Comfort level measurements: Measurement of indoor air quality or turbulence as per ASHRAE 55, PMV/PPD as per ASHRAE 55.
