testo 570s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and 4-piece hose filling set

0564 5703

testo 570s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and 4-piece hose filling set

0564 5703

Long-term measurement with intelligent error analysis in the testo Smart App

World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries

Suitable for use with A3 and A2L refrigerants

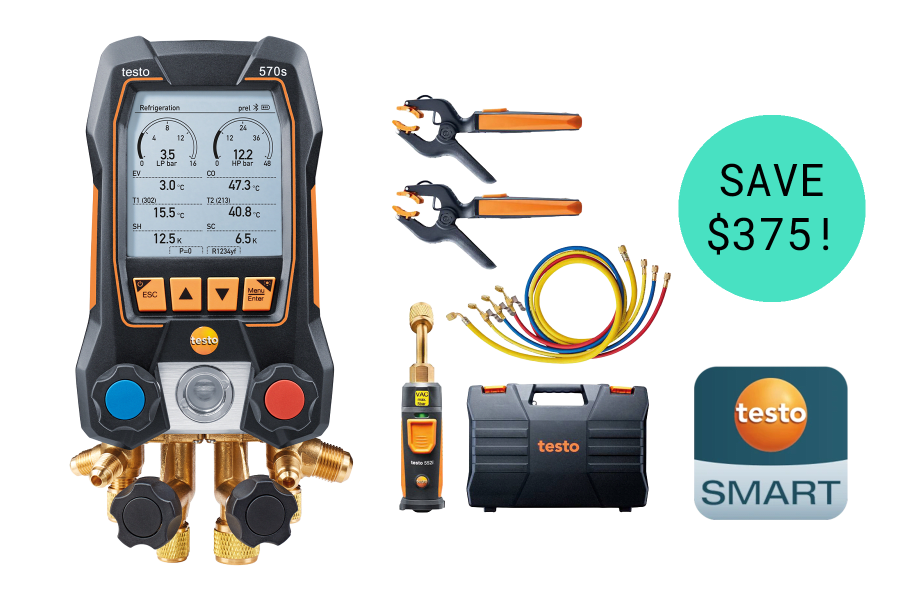

In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe, 4-piece hose filling set and case

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes plus filling hoses is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

*A2L / A2 / A3 Compliant*

Product registration
When you register your product, we will extend the regular manufacturer's warranty by one year.
Register now

testo 570s digital 4-way manifold with lithium-ion rechargeable battery
2x testo 115i wireless clamp thermometers
1x testo 552i wireless vacuum probe
4x filling hoses
Transport case
testo Smart App (free download)
Instruction manuals

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

: 0564 5701

Transport case for extensive accessories

: 0516 0012

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

0564 5701

Temperature

Measuring range	-58.0° to 302.0 °F / -50 to +150 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Probe connection	2 x Plug-in (NTC)

Pressure measurement

Measuring range	-15 to 870 psi / -1 to 60 bar
Accuracy	±0.25 % Fs
Resolution	0.14 psi / 0.01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (low pressure)	943 psi / 65 bar
Overload rel. (high pressure)	943 psi / 65 bar

General technical data

Weight	1.30 kg
Dimensions	9 x 4.4 x 3 in. / 229 x 112.5 x 71 mm
Operating temperature	-4.0° to 122.0 °F / -20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Auto-off instrument	10 min
Battery life	With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
Battery type	Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
Radio range	492.12 ft. / 150 m
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
