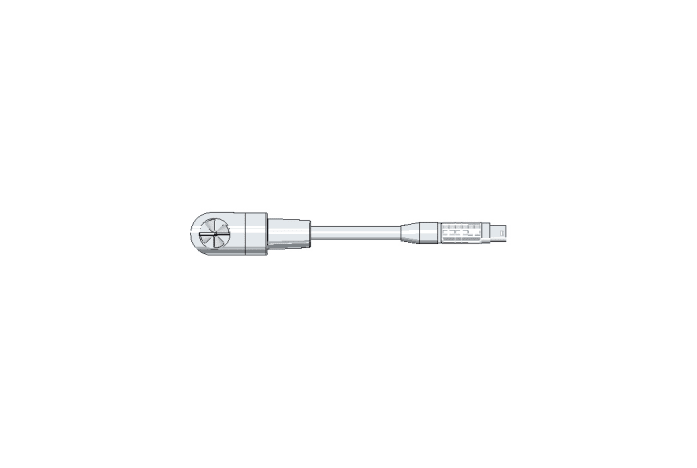

    Vane/temperature probe, Ø 1 in., can be attached to handle o... - Vane/temperature probe, Ø 0.98 in., attachable

    0635 9640
  1. Probe diameter: 25 mm
  2. Can be plugged onto handle
  3. Measuring range: 0.6 to +40 m/s
    4. Vane/temperature probe, Ø 1 in., can be attached to handle or telescopic handle
    Use the 25 mm vane probe to determine flow velocity and volume flow in ventilation ducts. It is particularly suitable for flow velocities of up to +40 m/s.

    Vane probe (Ø 25 mm).
    Note: you need a handle (0430 3545) for this probe.

    General technical data

    Length
    7.087 in. / 180 mm
    Diameter
    0.984 in. / 25 mm

    Temperature - Type K TC

    Measuring range
    -22.0° to 284.0 °F / -30 to +140 °C
    Accuracy
    Class 1

    Velocity / Volume flow

    Measuring range
    +118.1 to +7874 fpm / +0.6 to +40 m/s
    n1{#0.0}° t1 n2{#0.0} {%S1}
    Accuracy
    ±(39.4 fpm + 1 % of mv) (+118.1 to +7874 fpm / ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s

    Accessories

  4. Accessories
    Handle for plug-in vane probes
      :
      0430 3545
