To measure flow velocities in ventilation ducts or process air, you can upgrade your measuring instrument by adding a Pitot tube. Pitot tubes provide the optimum conditions, especially for higher flow velocities and dust-laden air.
This Pitot tube is 500 mm long and features integrated temperature measurement.
- Home
- Straight Pitot tube 500 mm

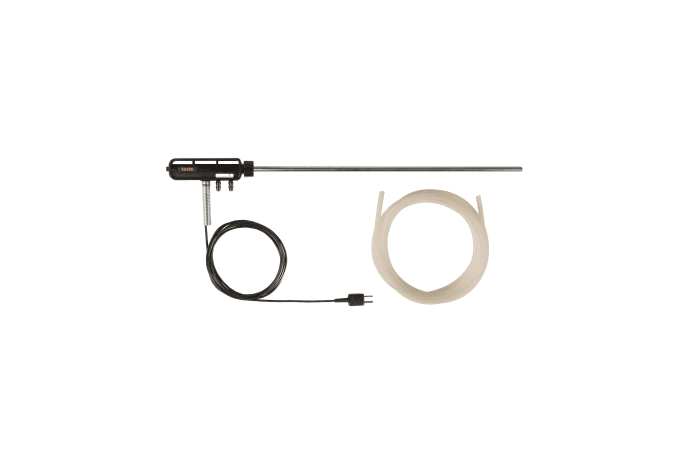

Straight Pitot tube 500 mm
0635 2143Straight Pitot tube 500 mm
0635 2143For measuring flow velocities, e.g. in ventilation ducts or process air
Length: 500 mm
Measuring range: 1 to 30 m/s
Operating temperature: 0 to +600 °C
Pitot tube; (length: 500mm)
Datos técnicos generales
| Rango de medición | +1 hasta +30 m/s |
|---|---|
| Longitud | 500 mm |
| Diámetro | 8 mm |
| Profundidad mínima de inmersión | 150 mm |
| Factor tubo Pitot | 0,67 |
Tipo K (NiCr-Ni)
| Rango | 0 hasta +600 ºC |
|---|---|
