testo 300 LL dugotrajni set 4 - Uređaj za analizu dimnih plinova (O2, CO do 15,000 ppm, NO - moguće ponovno postavljanje)
0564 3004 80testo 300 LL dugotrajni set 4 - Uređaj za analizu dimnih plinova (O2, CO do 15,000 ppm, NO - moguće ponovno postavljanje)
0564 3004 80Intuitivan, pametan, učinkovit: intuitivni mjerni izbornici, brzi odziv pametnog zaslona osjetljivog na dodir, dokumentacija na licu mjesta, slanje izvješća e-poštom
Uključujući O2, CO do 15,000 čestica u minuti, (NO senzor - moguće ponovno postavljanje)
Visokokvalitetna tehnologija senzora s radnim vijekom do 6 godina

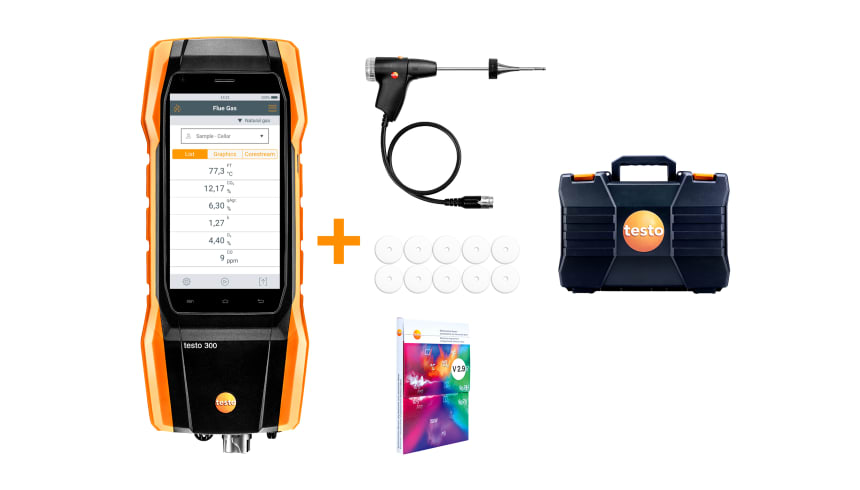

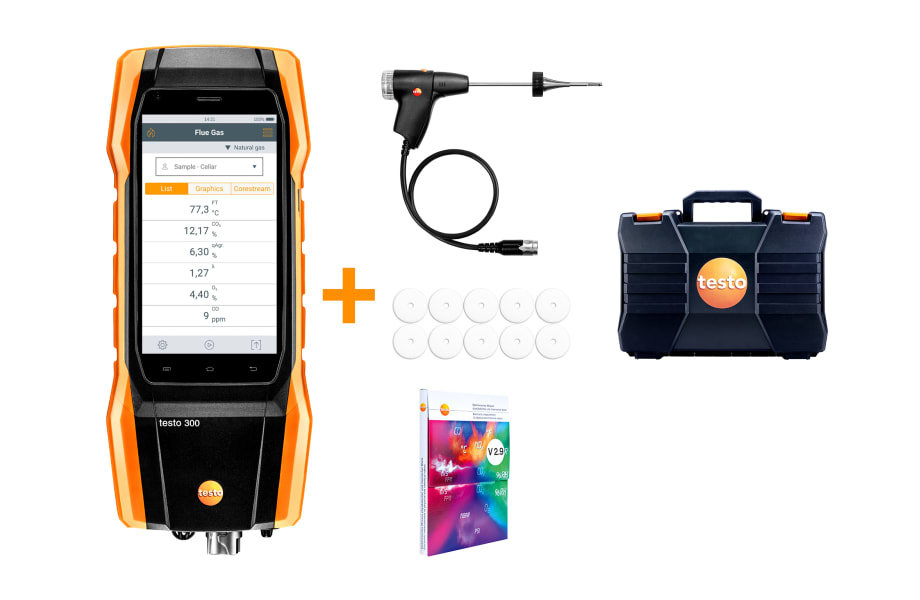

U setu: testo 300 dugotrajni uređaj za analizu dimnih plinova, uključujući O2 i CO senzor koji prepoznaje do 15.000 čestica u minuti (NO - moguće ponovno postavljanje). jedinica napajanja, osnovna sonda za dimne plinove, rezervni filtri protiv prljavštine, EasyHeat softver, testo Bluetooth® konektor, kovčeg
Radove instalacije i održavanja na sustavima grijanja obavljajte nekoliko puta dnevno koristeći uređaj za analizu dimnih plinova s dugotrajnim senzorima. TÜV-testirani testo 300 dugotrajni uređaj za analizu dimnih plinova isporučuje se sa O2 and CO senzorom koji prepoznaje do 15.000 čestica u minuti (NO - moguće ponovno postavljanje), osnovna sonda za dimne plinove, testo Bluetooth® konektor, kovčeg i praktična dodatna oprema.
Registracija proizvoda
Prijavljivanjem Vašeg proizvoda produljujemo regularno jamstvo proizvođača za dodatnih godinu dana.
- testo 300 dugotrajni uređaj za analizu dimnih plinova sa O2 i CO senzorom za do 15,000 čestica u minuti (0633 3004 82)
- USB jedinica, uključujući kabl (0554 1106)
- Kompaktna osnovna sonda za dimne plinove, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m crijevo; uključujući filtre protiv prljavštine i stožac za montažu (0600 9740)
- Rezervni filtri protiv prljavštine, kompaktna sonda; 10 off (0554 0040)
- testo Bluetooth® konektor (0554 3004)
- Besplatno za preuzimanje EasyHeat računalni softver (0554 3332)
- Torbica za instrument (visina: 130 mm) za instrument, sonde i dodatnu opremu (0516 3300)
Temperature - TC Type K (NiCr-Ni)
| Measuring range | −40 to +1200 °C |
|---|---|
| Accuracy | ±0,5 % of mv (Remaining Range) ±0,5 °C (0,0 to +100,0 °C) |
| Resolution | 0,1 °C (−40 to +999,9 °C) 1 °C (Remaining Range) |
Differential Pressure - Piezoresistive
| Measuring range | −100 to +200 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (+100,1 to +200 hPa) ±0,5 hPa (0 to +50,0 hPa) ±1 % of mv (+50,1 to +100,0 hPa) |
| Resolution | 0,01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Flue gas COlow (with H₂-compensation)
| Measuring range | 0 to 500 ppm |
|---|---|
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0,1 ppm |
CO determination (without H₂-compensation), automatic dilution
| Measuring range | 0 to 15000 ppm |
|---|---|
| Accuracy | ±200 ppm or ±20 % of mv |
| Resolution | 1 ppm |
Flue gas NO
| Measuring range | 0 to 3000 ppm |
|---|---|
| Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
| Resolution | 1 ppm |
Flue gas Nolow
| Measuring range | 0 to 300 ppm |
|---|---|
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39,9 ppm) |
| Resolution | 0,1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | −9,99 to +40 hPa |
|---|---|
| Accuracy | ±0,02 hPa (0,1 to +3,00 hPa) ±0,005 hPa (0 to 0,1 hPa) ±1,5 % of mv (+3,01 to +40 hPa) |
| Resolution | 0,001 hPa (0 to 0,1 hPa) 0,01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0,1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99,9 % |
|---|---|
| Resolution | 0,1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring range | −50 to +50 Pa |
|---|---|
| Accuracy | ±3 % of mv (Remaining Range) ±0,3 Pa (< 10 Pa) |
| Resolution | 0,1 Pa |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | −5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
| Memory | 1.000.000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | −20 to +50 °C |
| Charging temperature | 0 to +45 °C |
General technical data
| Diameter probe shaft | 6 mm |
|---|---|
| Cable length | 1,5 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 346 g |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 3880 g |
|---|---|
| Dimensions | 520 x 400 x 130 mm (LxWxH) |
| Product-/housing material | Plastic |
| Product colour | Black |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
:
0632 1272
0632 1272
€ 368,00 € 460,00
Flue gas probes
Flue gas probes
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
:
0600 9760
0600 9760
€ 255,00 € 318,75
Flue gas probes
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
:
0600 9761
0600 9761
€ 262,00 € 327,50
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9762
0600 9762
€ 254,00 € 317,50
Flue gas probes
Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
:
0600 9763
0600 9763
€ 263,00 € 328,75
Flue gas probes
Our flexible flue gas probe helps you to carry out flue gas measurements even on difficult-to-access measurement apertures. Since the probe shaft is made of very flexible plastic, you can easily bend it, allowing it to be inserted into exhaust flues which are obstructed (e.g. by sloping ceilings).
:
0600 9770
0600 9770
€ 332,00 € 415,00
Flue gas probes
Compact basic flue gas probe with 180 mm long probe shaft with thermocouple up to 500 °C and dirt filter
:
0600 9740
0600 9740
€ 165,00 € 206,25
Flue gas probes
Compact flue gas probe with 300 mm long probe shaft and Ø 6 mm, including particle filter and thermocouple up to 500 °C
:
0600 9741
0600 9741
€ 180,00 € 225,00
Further probes
Further probes
Dual wall clearance probe for O2 supply air measurement
:
0632 1260
0632 1260
€ 149,00 € 186,25
Further probes
Solid fuel kit - including probe shaft and adapter
:
0600 9765
0600 9765
€ 425,00 € 531,25
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
:
0615 5505
0615 5505
€ 54,00 € 67,50
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
:
0615 5605
0615 5605
€ 195,00 € 243,75
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
:
0615 1212
0615 1212
€ 79,00 € 98,75
Temperature probes
Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
:
0600 9799
0600 9799
€ 78,00 € 97,50
Sets
Sets
testo 300 Longlife kit 4 with printer: Flue gas analyzer (O2, CO up to 15,000 ppm, NO - can be retrofitted)
:
0564 3004 81
0564 3004 81
€ 1952,00 € 2440,00
Accessories
Accessories
BLUETOOTH®-/IRDA printer with Bluetooth® and IrDA interface for printing out measurement data and graphs from compatible Testo measuring instruments or Testo Apps
:
0554 0621
0554 0621
€ 273,00 € 341,25
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
:
0554 0307
0554 0307
€ 123,00 € 153,75
Accessories
Free download: testo EasyHeat PC software
:
0554 3332
0554 3332
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
:
0516 3300
0516 3300
€ 85,00 € 106,25
Accessories
Instrument case with double base (height: 180 mm) - for instrument, probes and accessories
:
0516 3301
0516 3301
€ 133,00 € 166,25
Accessories
Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
:
0554 1203
0554 1203
€ 48,90 € 61,13
Accessories
Pressure set for testing gas line testo 330-1/-2 LL version 2010
:
0554 1213
0554 1213
€ 99,00 € 123,75
Accessories
Instrument bag with carrying strap
:
0516 3001
0516 3001
€ 69,00 € 86,25
Measurement cells
Measurement cells
CO sensor (without H2 compensation) with 4-year warranty
:
0393 0051
0393 0051
Measurement cells
CO sensor, (H2-compensated) with 4-year warranty
:
0393 0101
0393 0101
Measurement cells
NO sensor
:
0393 0151
0393 0151
Mjerenje dimnih plinova na sustavima grijanja
Savršen alat za mjerenja koja uključuju sustave grijanje:
- visokokvalitetni dugotrajni senzori s radnim vijekom do 6 godina, rukovanje preko zaslona osjetljivog na dodir, jasno strukturirani mjerni izbornici, izrada dokumentacije na licu mjesta, slanje izvješća e-poštom, veliki HD zaslon, robusno kućište
Daljnja područja primjene:
- mjerenje tlaka protoka plina*, ispitivanje plinovoda*, diferencijalno mjerenje temperature (Temperatura protoka i povratnog toka u sustavima grijanja)*, mjerenje CO u okolini*, mjerenje dimovoda na sustavima grijanja*, integrirani sustav mjerenja do 4 Pa za opremu za izgaranje
* Imajte na umu: Za ta su mjerenja potrebna dodatna sonda ili pribor koji se moraju naručiti zasebno.
