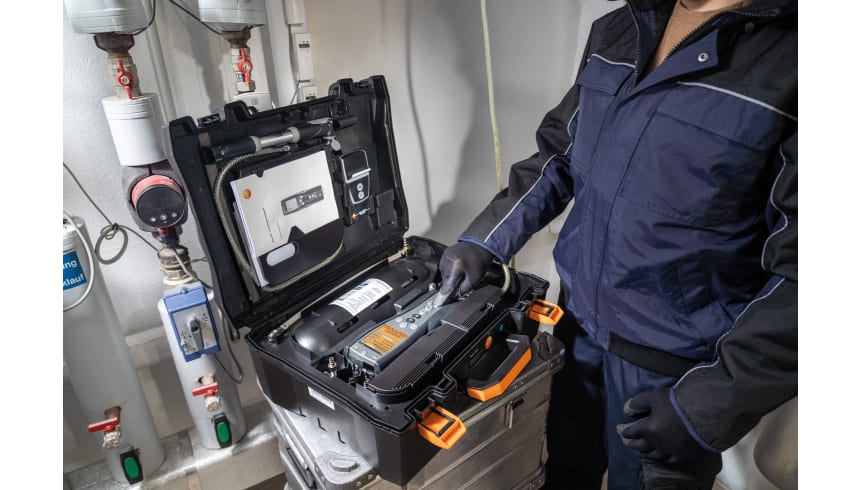

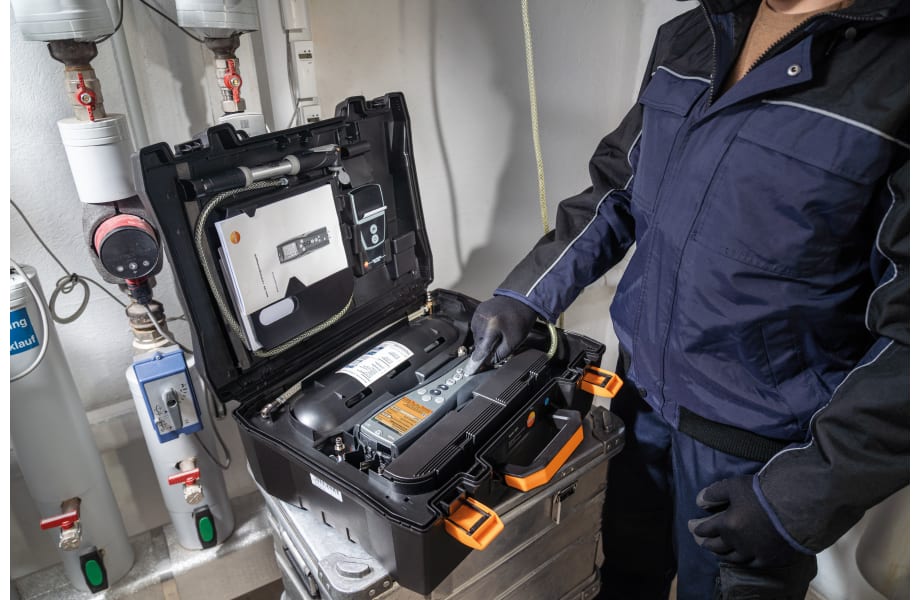

    Pro set testo 324 - Pressure and leakage measuring instrument

    0563 3240 71
  1. All the important measurements in one instrument: tightness test, load test and serviceability test
  2. Printer for documentation on site
  3. Additional gas leak detector included in the scope of delivery
  4. Automatic determination of pipe volume in gas pipes
  5. Everything the professional needs for testing gas pipes: in addition to the testo 324 leakage measuring instrument, including system case with feeding unit and other accessories, you get an infrared printer for measurement data documentation on site, along with the testo 316-2 gas leak detector.
    The testo 324 professional set is worthy of its name. Because there is no more professional way to carry out statutory tests on gas pipes. Thanks to a comprehensive range of accessories, you are equipped for every measuring task involved in testing gas pipes.


    Gas pipe tests - the applications

    • Load testing and tightness testing on gas pipes according to TRGI 2018
    • Establishing the serviceability of gas pipes according to TRGI 2018
    • Strength (pressure test), tightness and recurring tests on liquid gas pipes according to TRF 2021
    • Waste water pipe testing according to DIN EN 1610
    • Differential pressure measurement


    testo 324 professional set with leakage measuring instrument – the advantages

    • Simple: The single-hose connection makes it extremely easy to operate, while the high-resolution colour graphic display also makes it convenient to work with
    • Efficient: Measuring location and customer management: the measurement data can be stored and documented quickly and easily in previously created customer folders, along with assignment to the measuring location (memory for up to 500,000 readings)
    • Precise: Maximum precision is offered by the built-in sensors – a flow sensor, an absolute pressure sensor and two differential pressure sensors are all integrated into the testo 324 leakage measuring instrument. Optionally, up to two temperature probes or high-pressure probes of up to 25 bar can be connected to the measuring instrument
    • Efficient: The pressure pump which is integrated into the testo 324 leakage measuring instrument enables automatic pressure build-up up to 300 mbar and filling of the feeding unit. You also have the option of generating higher pressures with the manual test pump
    • Safe: Automatic serviceability test: the system case with feeding unit feeds in the gas using the gas bladder. Since the gas bladder is filled with the system's own gas, there is no possibility of a hazardous gas-air mixture developing during the serviceability test
    • Intelligent: Integrated instrument diagnosis: error diagnosis, instrument information, tightness self-test
    • Economic: Energy management: automatic instrument shutdown (Auto-Off) and switch-off of the display illumination can be set in battery operation
    • Practical: The infrared printer enables measurement data to be printed out on site in accordance with statutory directives
    • Versatile: The testo 316-2 gas detector enables reliable detection of gas leaks
    • Durable: 2-year warranty

    We recommend our optional PC software EasyHeat for the convenient presentation of measurement processes and to manage your customer data.

    - DVGW-tested testo 324 pressure and leakage measuring instrument, including rechargeable battery and calibration protocol
    - Mains unit for testo 324
    - System case including feeding unit, connection hose and connection block (instrument, pump and hose connection including overpressure valve and stopcock)
    - Manual test pump for generating the test pressure
    - Adapter for gas boiler measurement connection
    - Conical test stops ½" + ¾"
    - High-pressure stage stops ⅜ + ¾", ½ + 1 ", ¾ + 1 ¼ "
    - testo 316-2 gas leak detector
    - Basic infrared printer (including batteries)
    - Spare printer paper

    Temperature - NTC

    Measuring range
    -20 to +100 °C

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -40 to +600 °C
    Accuracy
    ±0.5 °C or ±0.5 %

    Absolute Pressure

    Measuring range
    600 to 1150 hPa
    Accuracy
    ±3 hPa
    Overload
    to 1200 hPa

    Additional accessories

  6. Additional accessories
    Connection cable
    Connection cable
      :
      0430 0143
    • Additional accessories
      Connection cable
      USB connection cable, instrument-PC
        :
        0449 0047
      • Additional accessories
        Mains unit international
        International mains unit
          :
          0554 1096
        • Additional accessories
          Test pump
          Test pump to produce test pressure
            :
            0554 3157
          • Additional accessories
            Lecksuchspray
            Leak detection spray for spraying on the gas pipe, shows leaking points where bubbles form
              :
              0554 3166
            • Additional accessories
              PC Software testo EasyHeat
              Free download: testo EasyHeat PC software
                :
                0554 3332
              • Cases

                Plugs, caps, hoses etc.

                Printer and accessories

              • Printer and accessories
                Spare thermal paper
                Spare thermal paper for printer, permanent
                  :
                  0554 0568
                • Printer and accessories
                  testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
                  testo fast printer IRDA
                    :
                    0554 0549
