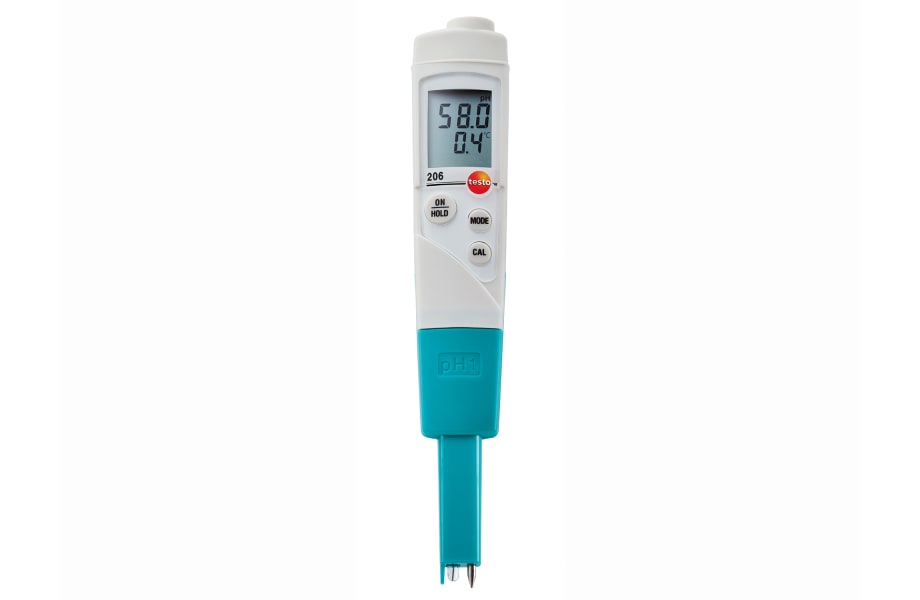

    testo 206-pH1 - pH/temperature measuring instrument for liquids

    0563 2061
  1. Ideal for measuring the pH value of liquids
  2. The integrated temperature probe enables automatic temperature compensation
  3. Maintenance-free gel electrolyte
  4. Robust, waterproof and dishwasher-safe protective case (TopSafe, protection class IP68)
    5. Perfectly equipped for pH measurement in liquids: the universal testo 206-pH1 pH/temperature measuring instrument features innovative probe technology. Particularly suitable for use in the food sector.


    pH value and temperature are key parameters for guaranteeing the quality of products in the food sector, the cosmetics industry and the sanitary and HVAC sector, etc. With the testo 206-pH1 pH temperature measuring instrument, you can reliably measure the temperature and pH value in liquids (e.g. drinking or heating water) or even in viscoplastic media.

    The advantages of the pH/temperature measuring instrument at a glance

    The testo 206-pH1 temperature and pH measuring instrument boasts the following features:
    • the pH probe is ideal for measurements in liquids (and can even be used in viscoplastic media). The temperature sensor ensures precise, fast temperature compensation, and therefore accurate pH measurement
    • The pH probe is maintenance-free, leak-proof and insensitive to dirt thanks to the gel electrolyte in the probe
    • The dual wall diaphragm of the pH probe guarantees quick, reliable pH measurement
    • Simultaneous display of pH value and temperature on the clear display
    • Automatic final value recognition (auto hold): the reading is automatically held once it is stable

    With the included accessories, you are ideally equipped for measuring pH:
    • TopSafe protective case: this is dishwasher-safe, hygienic and protects the measuring instrument from dirt, water and impact. Safely stored in the protective case, the pH measuring instrument is waterproof in accordance with protection class IP 68
    • Storage cap with gel: the storage cap, which is filled with gel electrolyte and attached to the pH probe, is used to store the probe between measurements
    • Belt/wall bracket: used for storing the measuring instrument on the wall or on a belt
    As optional accessories, we also recommend the calibration dosing bottles, which are used for calibrating the probe. Alternatively, you can order the testo 206-pH1 starter set, which includes calibration dosing bottles.

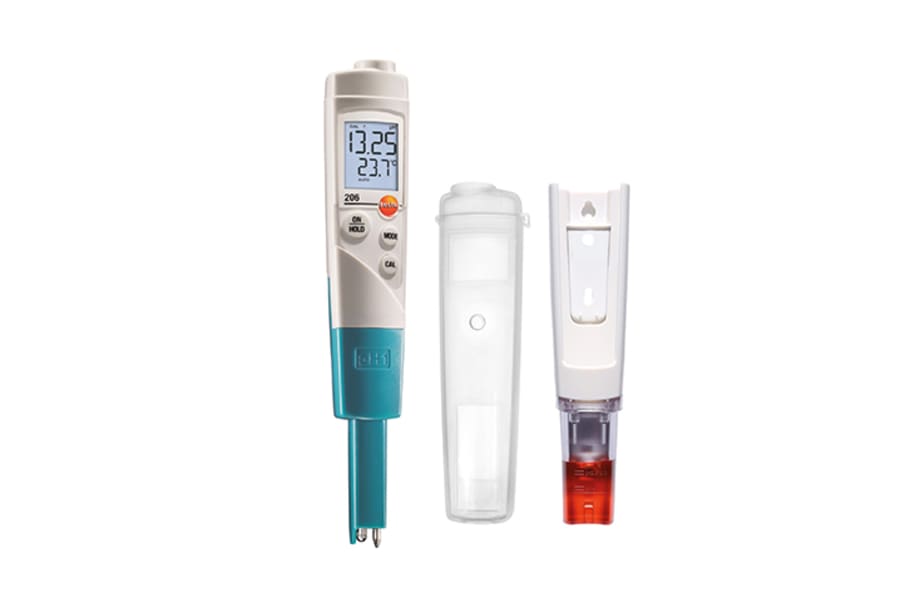

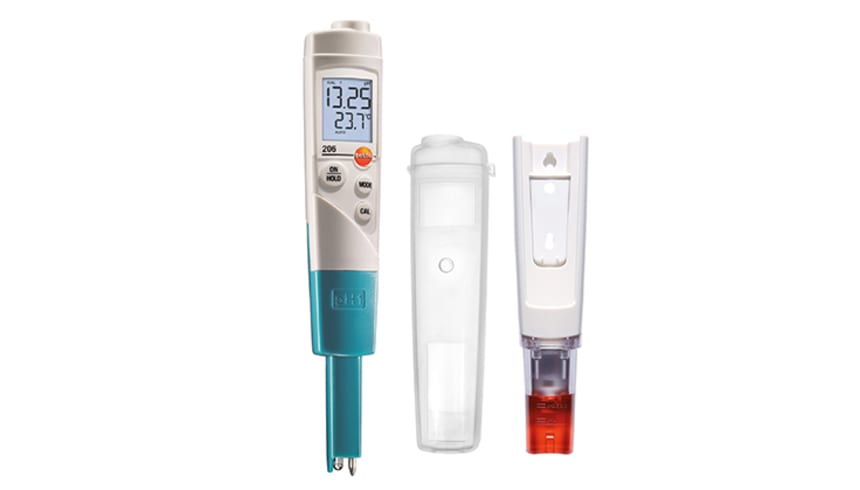

    testo 206-pH1 pH temperature measuring instrument, pH1 probe head for liquids, incl. storage cap with gel, TopSafe and belt/wall bracket.

    Temperature - NTC

    Measuring range
    0 to +60 °C (Short-term to +80 °C max. 5 min)
    Accuracy
    ±0.4 °C
    Resolution
    0.1 °C

    pH - Electrode

    Measuring range
    0 to 14 pH
    Accuracy
    ±0.02 pH
    Resolution
    0.01 pH

    General technical data

    Weight
    69 g
    Dimensions
    197 x 33 x 20 mm ((LxWxH))
    110 x 33 x 20 (without probe and TopSafe)
    Operating temperature
    0 to +60 °C
    Product-/housing material
    ABS
    Protection class
    IP68
    Product colour
    white
    Authorizations
    CE 2014/30/EU
    Length probe shaft
    3.5 mm
    35 mm
    Diameter probe shaft
    15 mm
    Battery type
    1 x CR2032
    Battery life
    80 h (Auto Off 10 min)
    Display type
    LCD (Liquid Crystal Display)
    Display size
    2 lines
    Number of channels
    2-channel
    Measuring rate
    2 measurements per second
    Temperature compensation
    automatic
    Storage temperature
    -20 to +70 °C

    Product sets

  5. Product sets
    testo 206 pH1
    testo 206-pH1 starter set: for measuring liquids
      :
      0563 2065

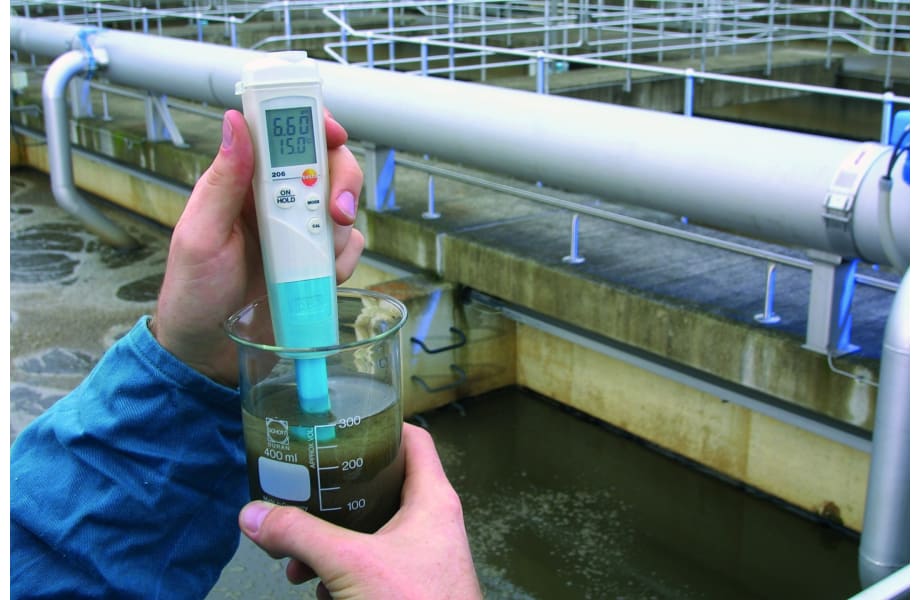

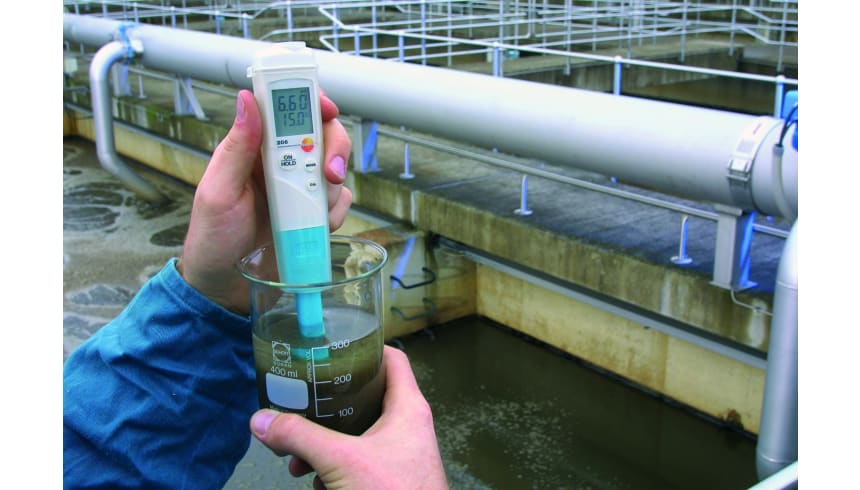

      • pH measurement for drinking water analysis

      There have been statutory European directives from as early as 1980, which have regulated the limit values of specific parameters in drinking water. The Drinking Water Ordinance of 21 May 2001 in Germany decreed that water supply companies are obliged to provide their customers with drinking water which complies with the quality laid down in the Drinking Water Ordinance. The pH value is an important parameter for determining water quality.

      The water samples taken must be checked for their pH value directly or immediately after sampling. This must not exceed the acidic limit of 6.5 or the alkaline limit of 9.5 and should normally be in the neutral range around 7.

      The advantages of the testo 206 one-hand pH measuring instrument:

      • Direct measurement on site for fast assessment of the pH value
      • Available in three different models (including a version with plug-in probes for easy remote measurement)
      • Robust, waterproof “TopSafe” protective cover (protection class IP68)
      • Built-in temperature probe for simultaneous measurement of two parameters
      • Maintenance-free gel electrolyte


      pH measurement for quality assurance in the food sector

      The pH value of foods has a direct effect on the growth of microorganisms and therefore on food quality and safety. For this reason, many companies use the pH value as a quality characteristic for evaluating their food. For example, the pH value is of great importance in the manufacture of meat, sausage, delicatessen and dairy products.

      The pH value is an important quality parameter in the food sector. It particularly affects the properties of meat and meat-based products, especially with regard to water binding capacity, taste, colour, tenderness and shelf life. In the bakery sector, the acidity of the sourdough can be determined by means of the pH value. In the case of products such as salad dressings, the pH value helps to ensure consistent quality or consistent acidity of the product.

      The advantages of the testo 206 one-hand pH measuring instrument:

      • Direct measurement in process / in the food for fast assessment of the pH value
      • Available in three different versions – depending on the medium in which the measurement is being made
      • Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68)
      • Built-in temperature probe for simultaneous measurement of pH and temperature values
      • Maintenance-free gel electrolyte
      • 1, 2 or 3-point calibration possible

      testo 206

      pH measment in the cosmetics industry

      The pH value is a crucial factor when it comes to assessing the quality of cosmetic products. Cosmetic products which are too acidic or too alkaline can cause skin irritations or rashes. The pH value of the skin is normally between 5 and 6.5 thanks to its natural protective acid mantle. “Skin-neutral” cleansers are actually slightly acidic and can support the skin's protective acid mantle, which is particularly important for people with sensitive skin. On the other hand, alkaline cleansers could encourage the skin's process of replenishing its natural oils.

      The pH value of cosmetics must therefore be monitored, controlled and, if necessary, adjusted right from the production stage, so that the end product has the required value. The testo 206 one-hand pH measuring instrument helps you to do this through:

      • Direct measurement in process for fast assessment of the pH value
      • Three different versions of the product – depending on the medium in which the measurement is being made (e.g. liquid, paste-like, etc.)
      • Robust, waterproof and dishwasher-safe “TopSafe” protective cover (protection class IP68) to meet strict cleaning requirements in the pharmaceutical sector.
      • Built-in temperature probe for simultaneous measurement of two parameters
      • Maintenance-free gel electrolyte
      • 1, 2 or 3-point calibration possible
