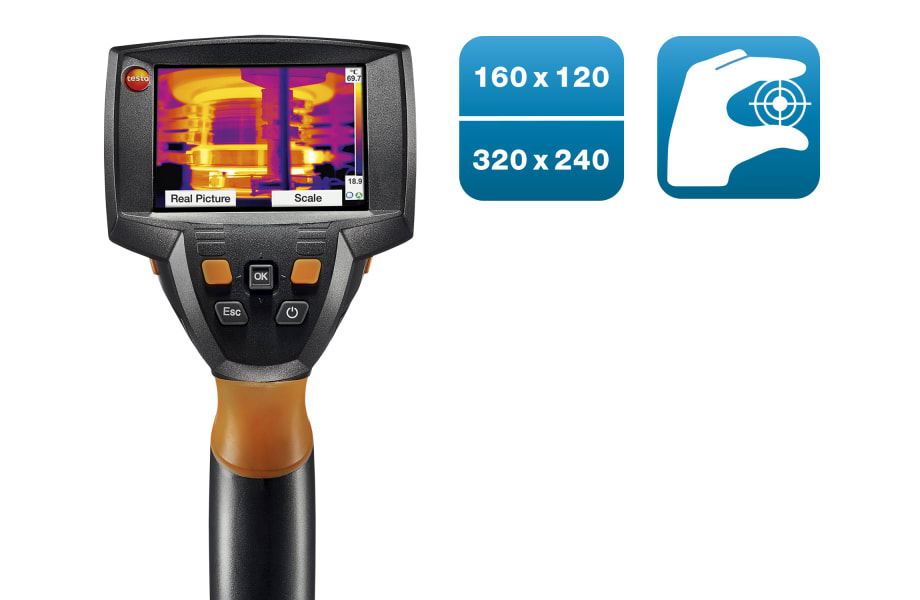

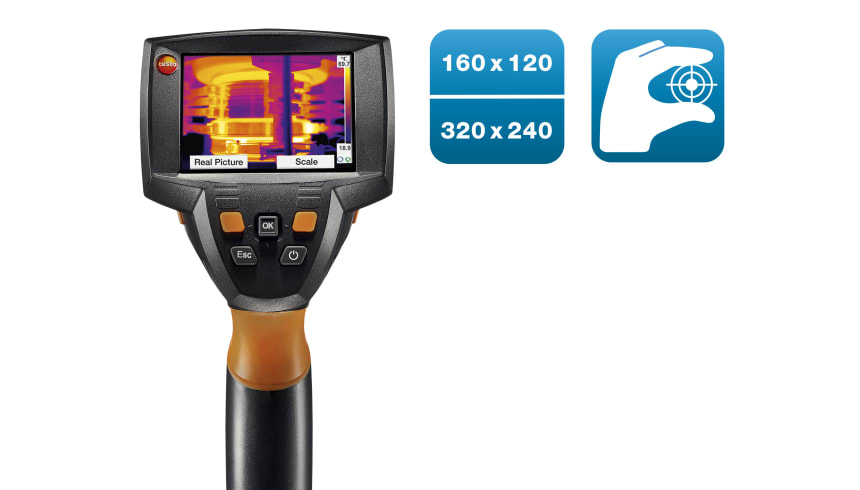

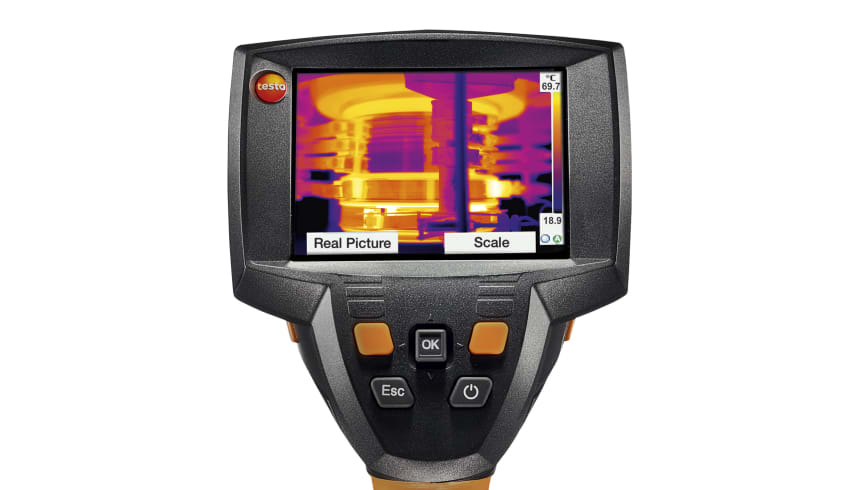

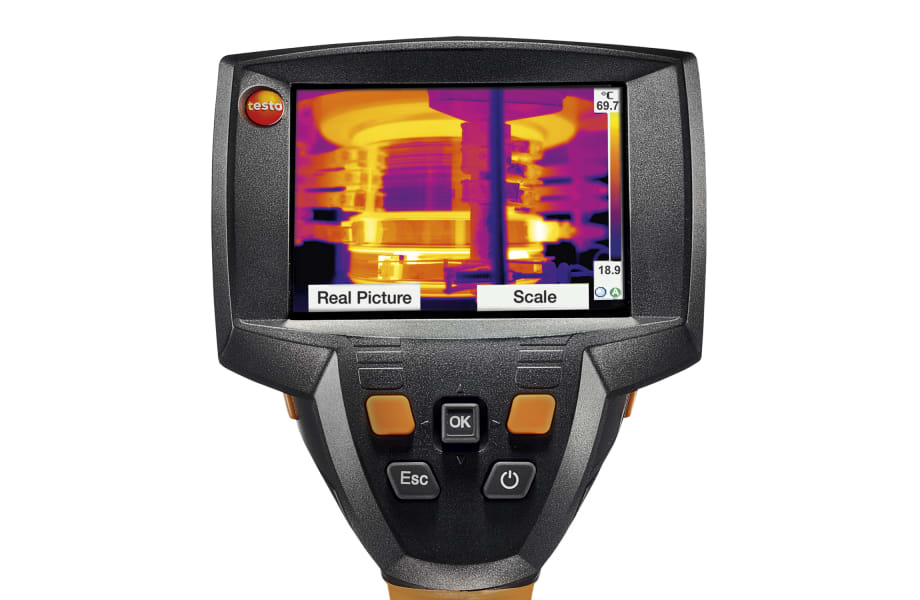

    testo 875-1i - Thermal imager (160 x 120 pixels, App, manual focus)

    0563 0875 V1
  1. Very good image quality: IR resolution 160 × 120 pixels, with SuperResolution Technology 320 × 240 pixels
  2. Precise measurement: thermal sensitivity < 50 mK, high-quality 32° × 23° lens with manual focus, automatic hot/cold spot detection
  3. Built-in digital camera creates a real image in parallel to the thermal image
  4. Comprehensive accessories, including: robust case, pro software, SD card, carrying strap, mains unit and lots more
  5. Product no longer available. Are you familiar with the alternative?
    Why not enjoy the benefits that it has to offer: >> To the product
    Make sure you get the testo 875-1i thermal imager with built-in digital camera for professional industrial and building thermography!
    You can carry out completely non-destructive tests on materials and components in industrial thermography with the testo 875-1i. This allows you to reveal problems in industrial maintenance and production monitoring before a malfunction occurs or fire risks develop. And for good measure, you can create a real image in parallel to the thermal image thanks to the built-in digital camera. This makes documentation and assignment easier for you.
    You can detect possible structural defects with the testo 875-1i thermal imager in building thermography. With the excellent thermal sensitivity of < 50 mK, you can quickly and efficiently track down energy losses and so help your customers to save expensive heating costs and plan refurbishments.
    In the “Applications” tab, you can find out more about the thermal imager's fields of application.

    The testo 875-1i infrared camera’s technical features

    The testo 875-1i thermal imager is characterised by its intuitive operation, excellent thermal sensitivity and built-in digital camera. Read all the important information here:
    • Built-in digital camera: Recording real images in parallel to each thermal image makes documentation and assignment easier
    • Resolution and image quality: Detector size 160 × 120 pixels = 19 200 temperature measuring points. SuperResolution Technology enables you to take image quality right up to the next level of 320 × 240 pixels in next to no time. Four times as many readings and a geometric resolution that has been improved by a factor of 1.6 mean you get even more detail and even greater reliability with thermographic measurements
    • Thermal sensitivity < 50 mK: Thanks to a temperature resolution of < 50 mK, even the smallest temperature differences can be seen
    • High-quality 32° × 23° lens: The lens with its manual focusing enables a wide field of view and an ideal overview of the temperature distribution, along with precise focusing on the object being measured
    • Automatic hot/cold spot detection: Critical temperature conditions are directly displayed during thermography
    • Solar mode: The solar radiation value can be input into the thermal imager and stored with each thermal image
    •  Pro software for image evaluation on the PC included. You can also choose to save the thermal images as JPEGs. Find out more about the software
    •  Measuring range: -30 to +350 °C

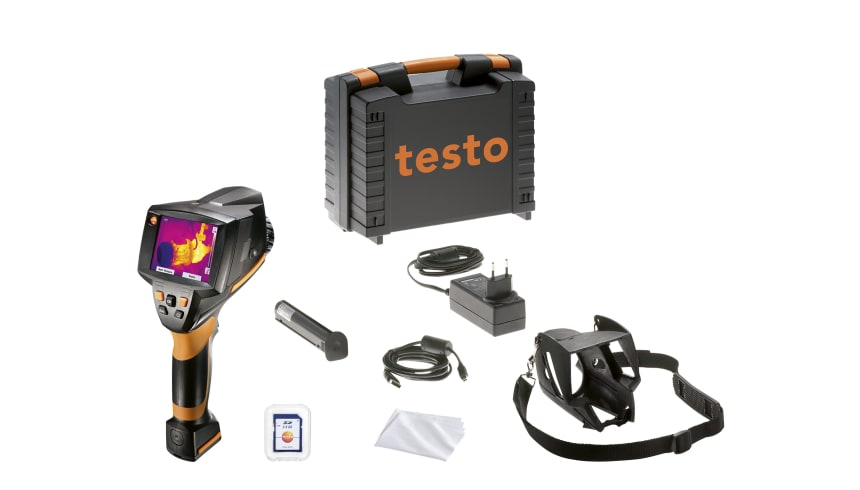

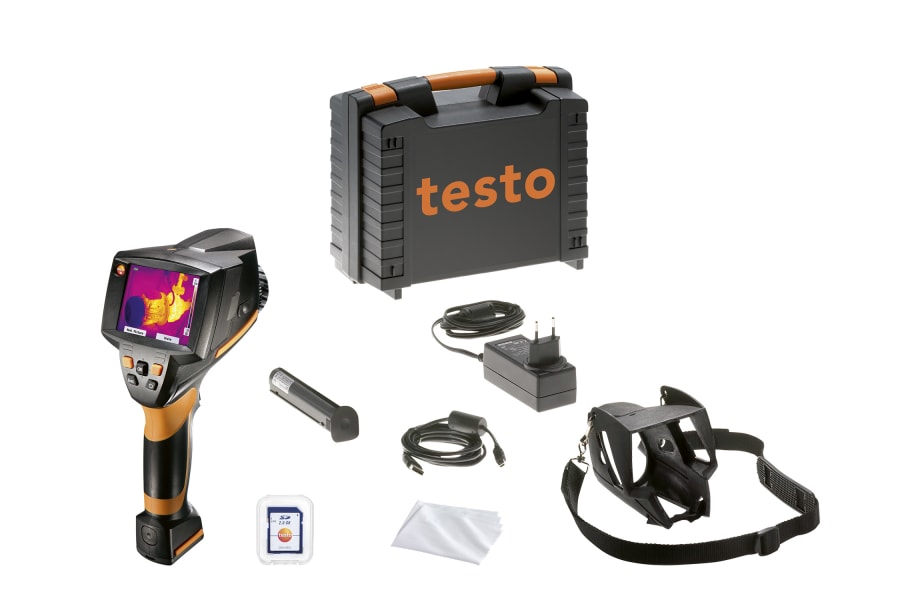

    The testo 875-1i thermal imager with SuperResolution and digital camera is supplied together with the following accessories:
    •  Robust case
    • Pro software IRSoft (free download)
    • Soft case
    • Carrying strap for the thermal imager
    • SD memory card
    • USB cable for data transfer to PC
    • Lens cleaning cloth
    • Mains unit
    •  Li-ion battery
    • Adapter for tripod mounting

    Ambient Condition

    Storage temperature
    -30 °C; 60 °C
    Operating temperature
    -15 °C; 40 °C
    Air humidity
    20 to 80 %RH non-condensing
    Housing protection class
    IP54
    Vibration
    2G

    Image output visual

    Image size
    640 x 480 pixels
    Minimum focus distance
    0.4 m

    Image presentation

    Display type
    3.5" LCD with 320 x 240 pixels
    Display option
    IR image only; real image only; IR image / real image
    Number of colours
    10
    Colours
    10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
    Video output
    USB 2.0

    Preventive maintenance

    Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

    • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
    • Avoid expensive damage, downtimes and fire risks on plants and machines
    Electrical maintenance
    • Test switching cabinets, electrical conditions, photovoltaic plants
    • Evaluate heat status in low, medium and high voltage plants
    Mechanical maintenance
    • Identify wear on machines
    • Test motors, bearings, shafts
      testo 8xx application

      Detecting structural defects and ensuring construction quality

      • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
      • Test air-tightness of windows and doors
      • Locate insulation errors and cold bridges in a building shell
      • Detect and visualize mould-risk areas
      testo 8xx application

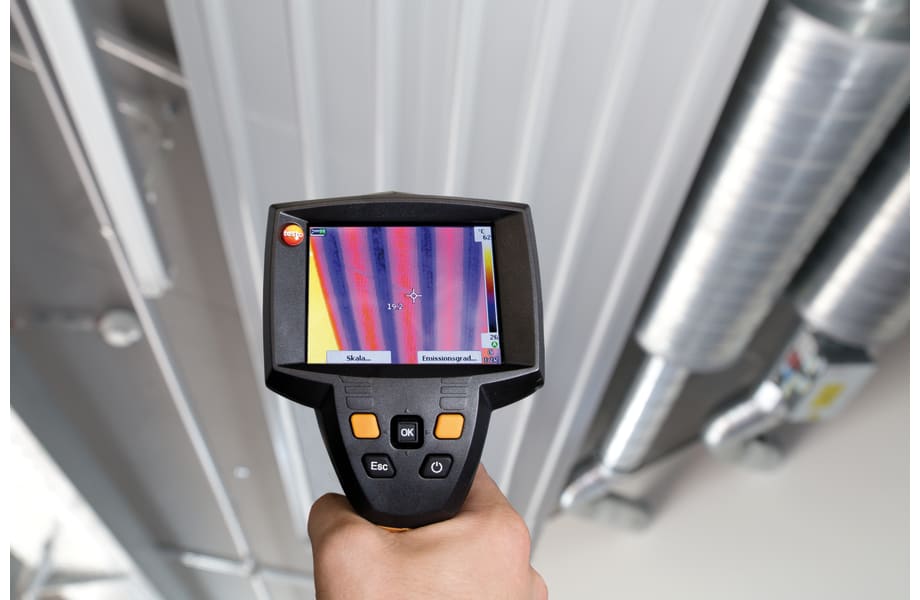

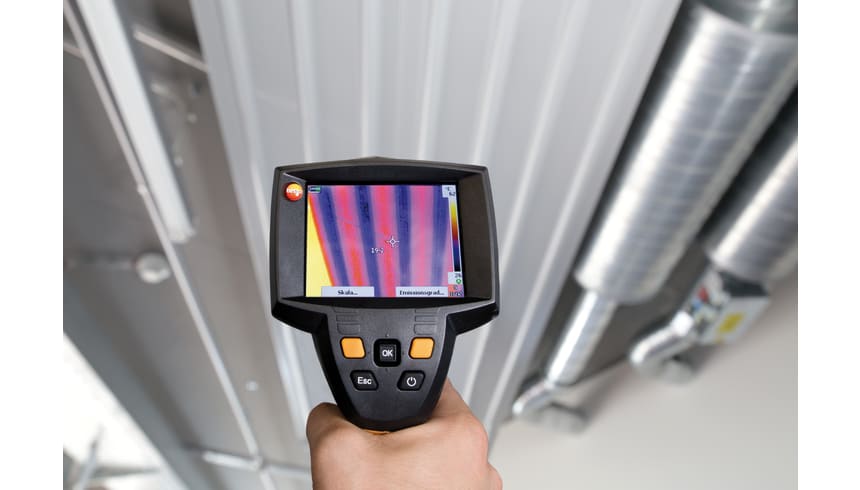

      Easy checking of heating systems and installations

      • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
      • Localization of the course of heating loops in underfloor heating systems
      • Testo radiators for silting
      • Measure flow and return temperatures
      testo 8xx application

      Localize pipe ruptures

      • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
      • Precise localization of leakages in underfloor heating and other inaccessible pipe systems
      testo 8xx application

      Locating leaks in flat roofs

      • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
      testo 8xx application

      More reliability in quality assurance and production monitoring

      • A Testo thermal imager supports in process control and product quality asurance
      • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
      • Fast and easy monitoring of filling level in closed liquid tanks
      testo 8xx application

      Research and development

      • Identify thermal anomalies and monitor cooling and heating processes in real time
      • Precisely visualize critical temperatures on circuit boards: Thanks to the finest geometric resolution of the high-quality Testo thermal imagers
      • Analyze heat occurrence and conduction in circuit boards, and optimize development processes: The process analysis package offers practical features such as video recording and image sequence storage for easy analysis of thermal processes
      testo 8xx application
