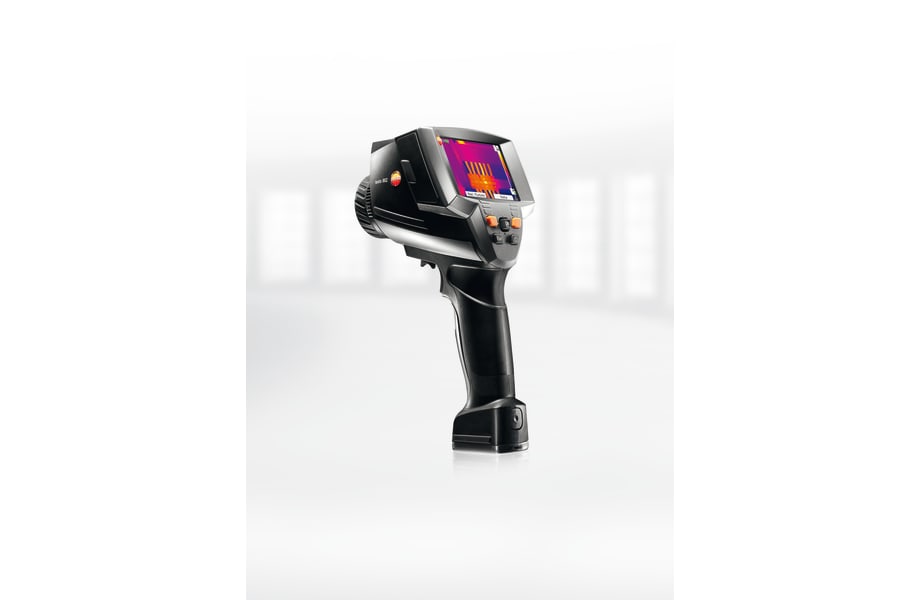

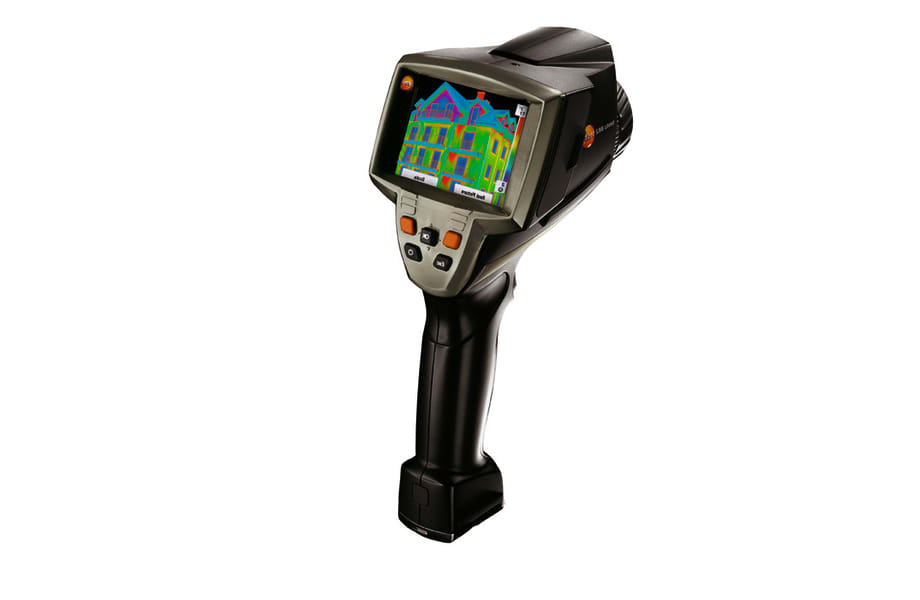

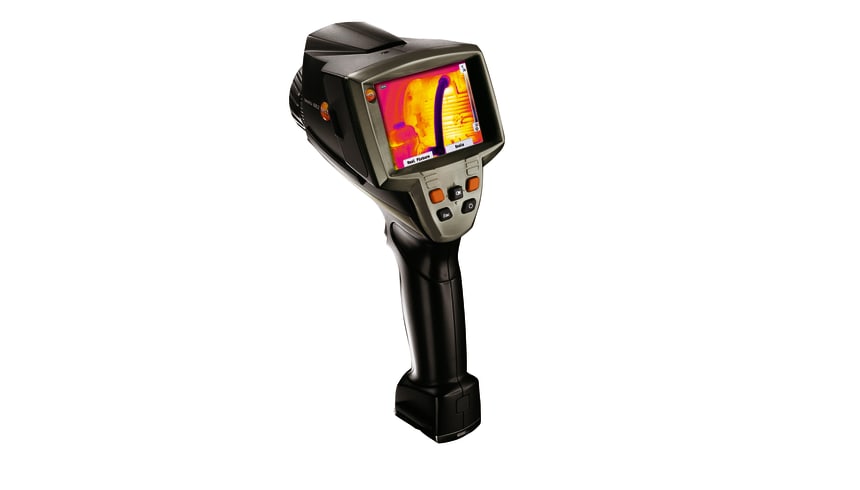

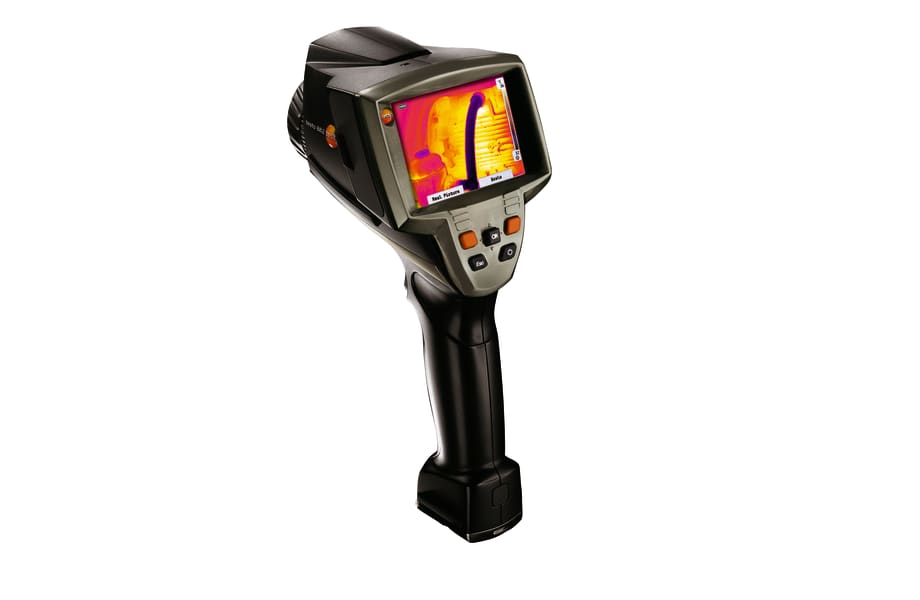

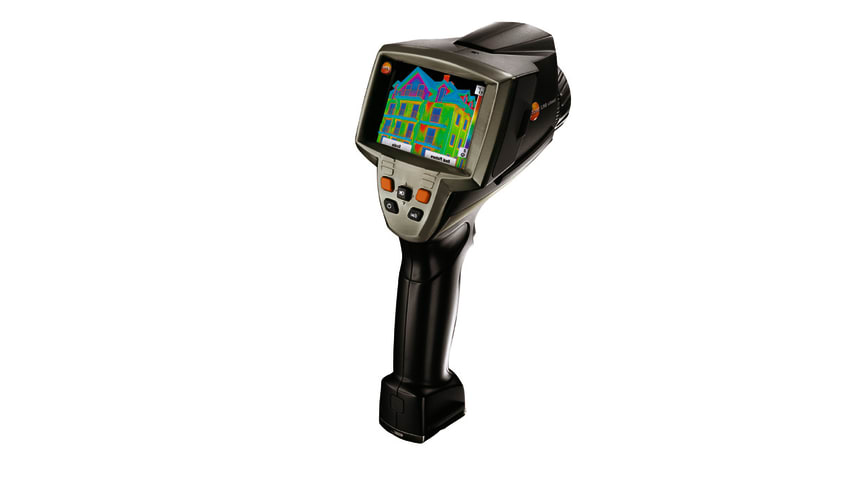

    testo 882 - Thermal imager (320 x 240 pixels, manual focus, laser)

    0560 0882
  1. Easy, one-handed operation for quick ‘n easy thermal imaging

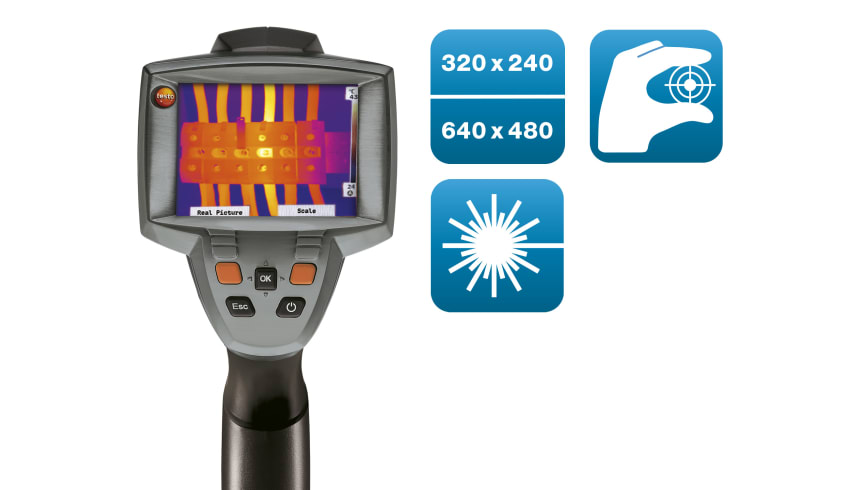

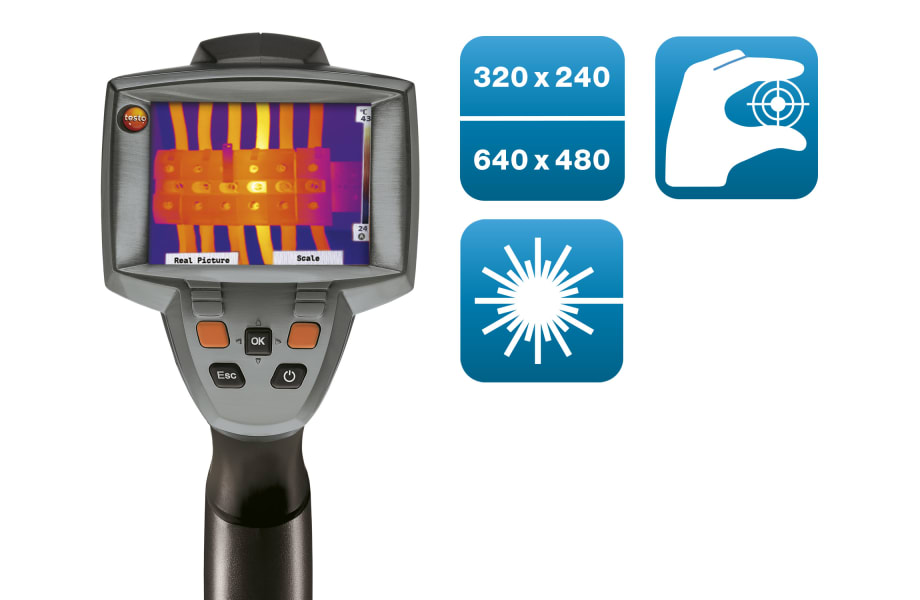

  2. Premium image quality: thermal image resolution 320 x 240 pixels, with optional SuperResolution Technology can be enhanced to 640 x 480 pixels
  3. Precise measurements: thermal sensitivity < 50 mK, 32° lens, automatic hot/cold spot recognition
  4. Built-in digital camera with power LEDs for real images with every thermal image
  5. Product no longer available. Are you familiar with the alternative?
    Why not enjoy the benefits that it has to offer: >> To the product
    Crisp, clear thermal images taken from a wide angle; parallel digital real images of the same measuring object with manual or motor-driven focusing. The testo 882 thermal imaging camera gives you this and much, much more. In fact, it gives you everything you need to take, document, and analyse the thermal images of the object you have measured.

    Areas of use for the testo 882 infrared camera

    Quality control in the building sector and water damage restoration, maintenance of mechanical and electrical installations, precise high-temperature measurements, prevention of mold, energy advice. The testo 882 infrared camera has all the features you need to carry out a wide range of different thermal imaging tasks.

    The impressive details of the testo 882 thermal imaging camera

    • 76 800 temperature measuring points for precise thermal imaging and crisp, clear images: Infrared resolution 320 x 240 pixels, thermal image quality enhanced to 640 x 480 pixels thanks to SuperResolution technology
    • Thermal sensitivity < 50 mK for measuring even the smallest temperature differences
    • 32° lens for quick ‘n easy coverage of larger image sections, can be focused manually or with motor
    • Automatic hot/cold spot recognition for instant critical temperature depiction
    • Built-in digital camera with power LEDs for parallel real and thermal images
    • Free IRSoft PC software for professional analysis of thermal images. TwinPix technology for overlapping images on your PC monitor. Ideal for allocating thermal images, documenting results and for planning further measures

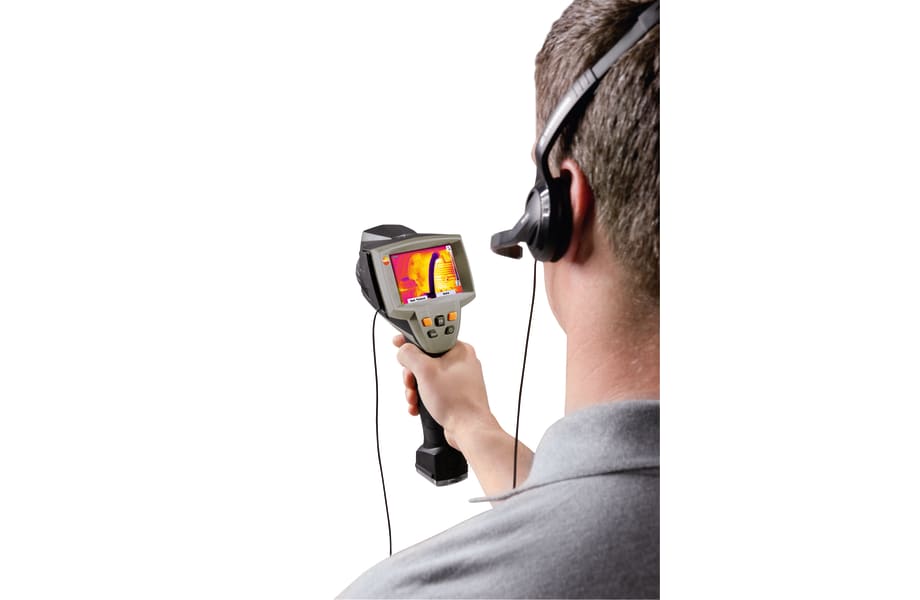

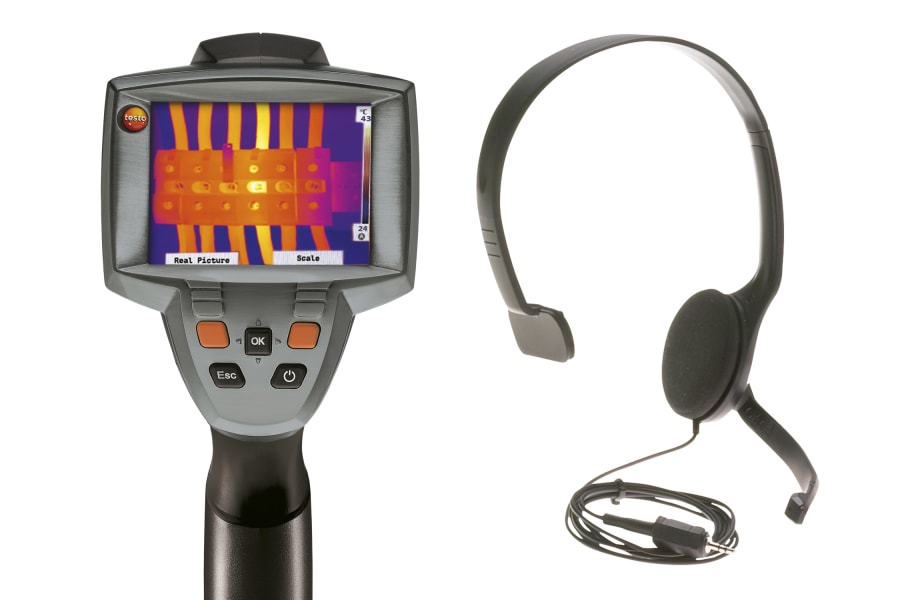

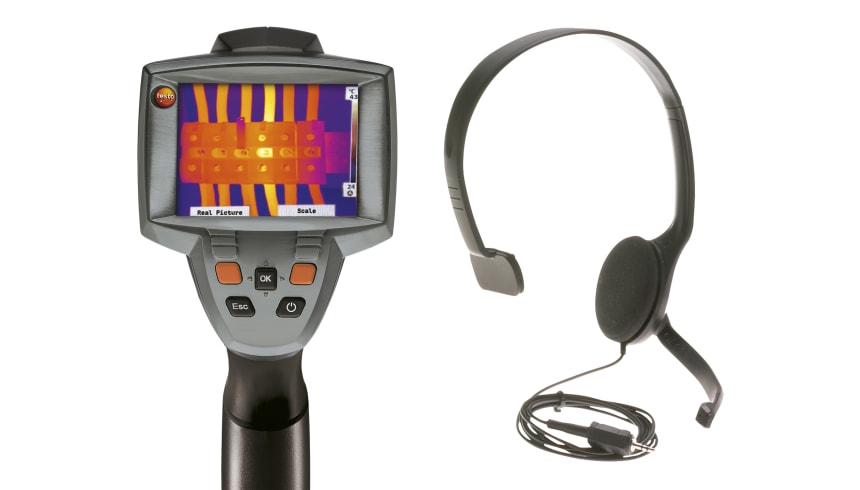

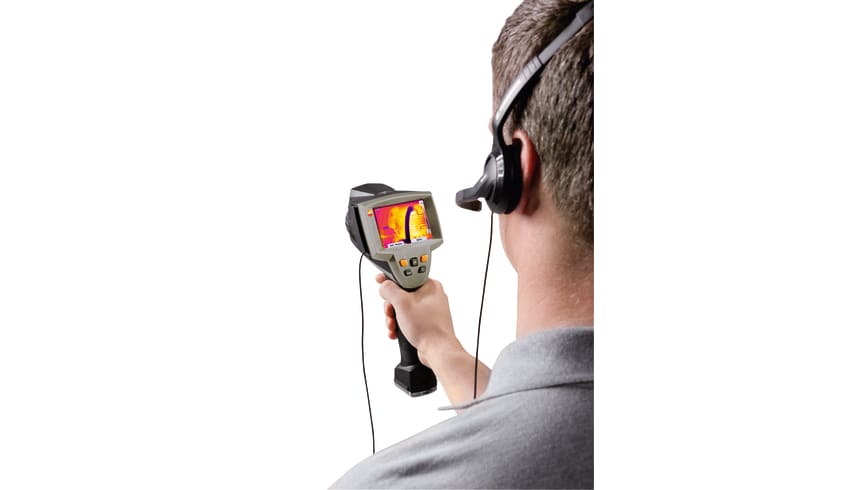

    • Voice annotations via headset
    • Intuitive, one-handed operation for quick ‘n easy thermal imaging

    Special measuring modes for even more precise thermal imaging

    Special measuring modes and functions broaden your measuring spectrum and provide even more precise measurements for faster results:
    • Solar mode for identifying faults at photovoltaic systems: enter the externally measured radiation intensity of the sun at the point in time at which the image was taken into the camera. This value is saved alongside each of the thermal images to allow correct comparisons to be made
    • Special measuring mode for detecting places where there is a risk of mold: the infrared camera can use the externally measured ambient temperature and humidity and the surface temperature to calculate the moisture value of each measuring point and depict it as a real moisture image
    • High temperature option: the measuring range can be increased to 550 °C for even more flexibility

    Thermal imaging analysis on your PC

    The thermal and digital images you have taken can be transferred from your infrared camera to your PC via SD card or USB cable. The IRSoft pro PC software included in the scope of delivery allows you to carry out a quick and reliable analysis of your images. The TwinPix Technology allows you to overlap real and thermal images to create a combined image which can be analysed more easily and efficiently.

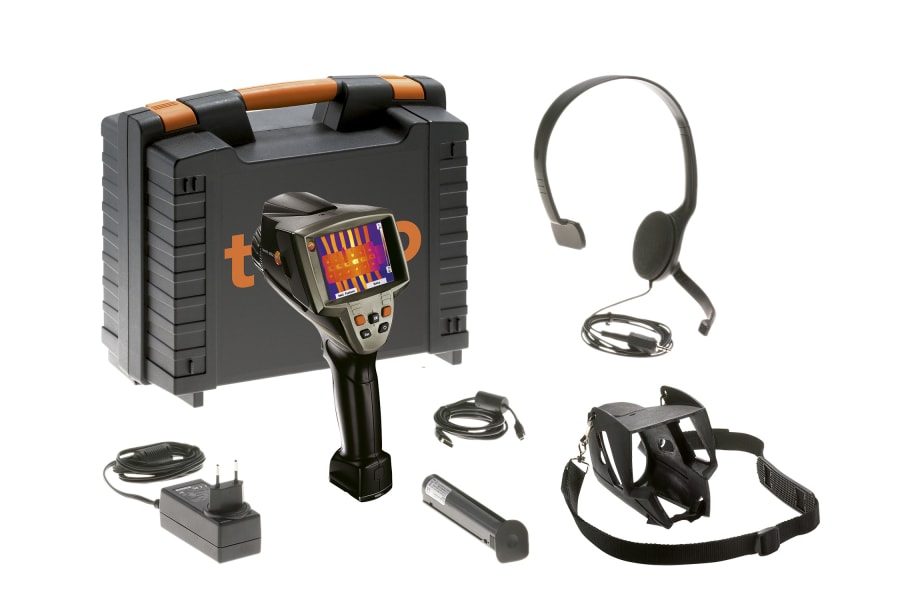

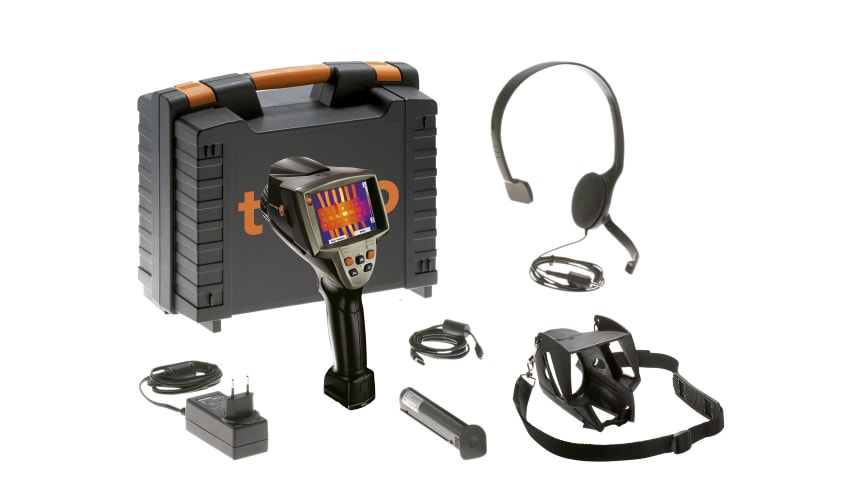

      The testo 882 thermal imager with SuperResolution and digital camera is supplied together with the following accessories:
      • Rugged case
      • Pro software IRSoft (free download)
      • Soft case
      • Shoulder strap
      • SD card
      • USB cable
      • Power adaptor
      • Li-ion battery
      • Adapter for tripod mount
      • Lens cloth
      • Headset

      Standards

      EU-/EG-guidelines
      2004/108/EG

      Infrared image output

      Field of view
      32° x 23°
      Focus
      manual and motor focus
      Minimum focus distance
      0.2 m
      Geometric resolution (IFOV)
      1.7 mrad
      Image refresh rate
      33 Hz
      Infrared resolution
      320 x 240 pixel
      SuperResolution (IFOV)
      1.1 mrad
      SuperResolution (Pixel)
      640 x 480 pixels
      Thermal sensitivity
      <50 mK at +30 °C

      Image output visual

      Minimum focus distance
      0.4 m
      Image size
      640 x 480 pixels

      Preventive maintenance

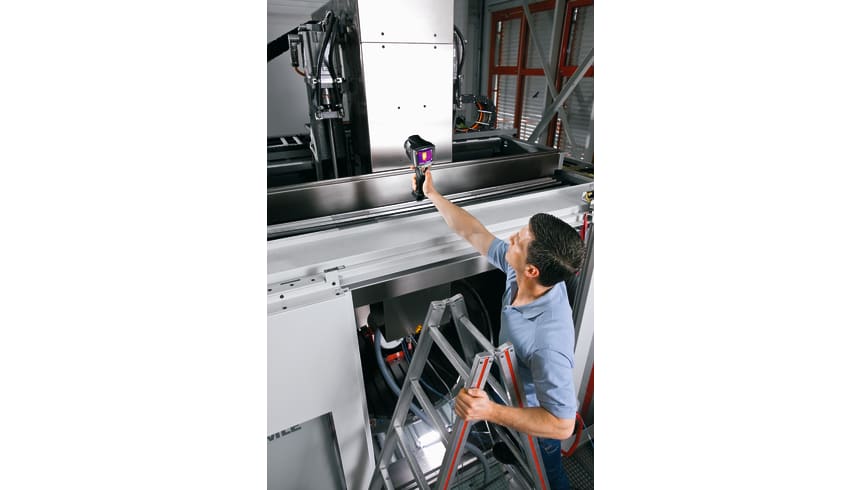

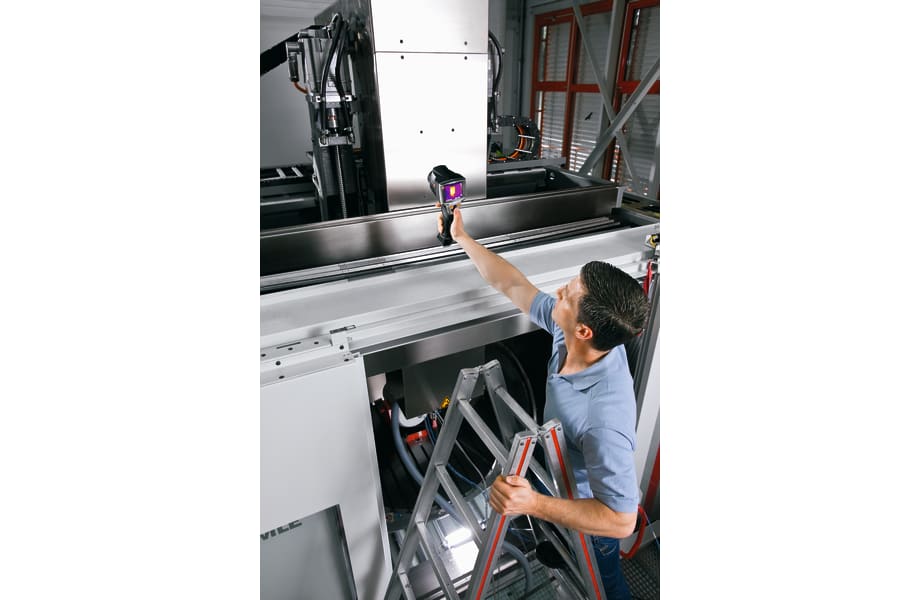

      Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.

      • Fast detection of critical thermal status (so-called HotSpots) during continuing operation
      • Avoid expensive damage, downtimes and fire risks on plants and machines
      Electrical maintenance
      • Test switching cabinets, electrical conditions, photovoltaic plants
      • Evaluate heat status in low, medium and high voltage plants
      Mechanical maintenance
      • Identify wear on machines
      • Test motors, bearings, shafts
        testo 8xx application

        Detecting structural defects and ensuring construction quality

        • Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
        • Test air-tightness of windows and doors
        • Locate insulation errors and cold bridges in a building shell
        • Detect and visualize mould-risk areas
        testo 8xx application

        Professional energy consultation

        • Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
        • Easy recording and documentation of energy loss from buildings
        • Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
        • Localize untight spots in new buildings quickly and easily in combination with Blower Door
        testo 8xx application

        Preventing mould formation

        • Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode
        testo 8xx application

        Easy checking of heating systems and installations

        • test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
        • Localization of the course of heating loops in underfloor heating systems
        • Testo radiators for silting
        • Measure flow and return temperatures
        testo 8xx application

        Localize pipe ruptures

        • Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
        • Precise localization of leakages in underfloor heating and other inaccessible pipe systems
        testo 8xx application

        More reliability in quality assurance and production monitoring

        • A Testo thermal imager supports in process control and product quality asurance
        • Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
        • Fast and easy monitoring of filling level in closed liquid tanks
        testo 8xx application

        Locating leaks in flat roofs

        • Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation
        testo 8xx application

        Safe high-temperature measurement

        • Measure high temperatures safely from a distance: Some of the thermal imager models from Testo even measure up to 1200 °C with the high-temperature option
        • Ideal for use in industrial maintenance
        • Identify wear, insulation damage and coking in furnaces and smelters
        • Thermography of large furnaces and machines on one thermal image – e.g. rotary kilns in cement production
