- testo 300 LL dolgotrajni komplet 3
testo 300 dolgotrajni komplet 3 - Naprava za analizo dimnih plinov (O2, CO H2do 8,000 ppm, NO - možna vnovična nastavitev)
Izdelek št. 0564 3004 72
testo 300 dolgotrajni komplet 3 - Naprava za analizo dimnih plinov (O2, CO H2do 8,000 ppm, NO - možna vnovična nastavitev)
Izdelek št. 0564 3004 72Vaše prednosti
Intuitiven, pameten, učinkovit: intuitivni merilni meniji, hiter odziv pametnega zaslona, občutljivega na dotik, dokumentacija na licu mesta, pošiljanje poročil po e-pošti
Vključno z O2, CO H2 senzorjem, ki prepozna do 8,000 delčkov v minuti, (NO senzor - možna vnovična nastavitev)
Visokokakovostna tehnologija senzorja z delovno dobo do 6 let

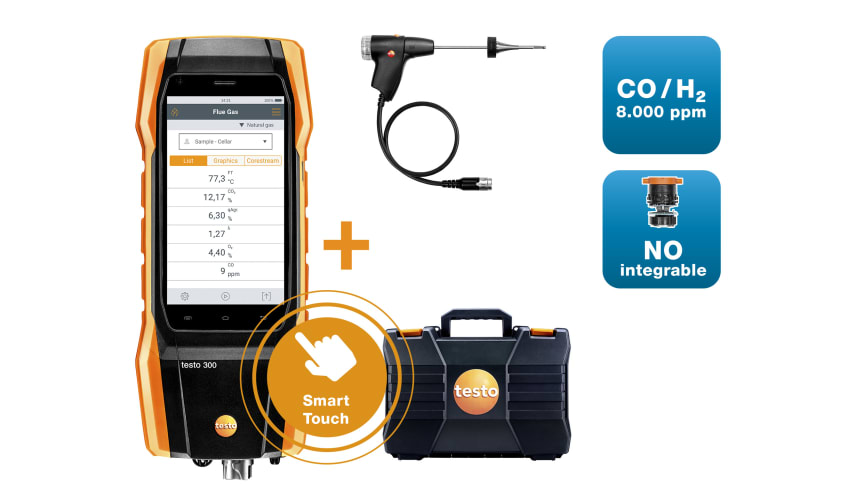

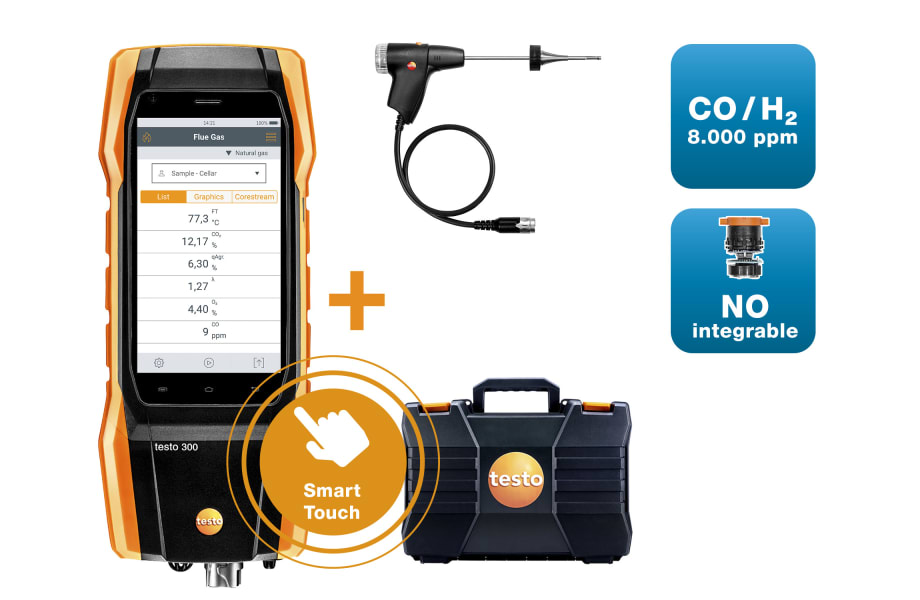

V kompletu: testo 300 dolgotrajna naprava za analizo dimnih plinov, vključno z O2 in CO H2 senzorjem, ki prepozna do 8.000 delčkov v minuti, napajalna enota, modularna sonda za dimne pline, rezervni filtri proti umazaniji, EasyHeat programska oprema, testo Bluetooth® konektor, kovček
Namestitvena in vzdrževalna dela na ogrevalnih sistemih opravljate večkrat na dan ob uporabi naprave za analizo dimnih plinov z dolgotrajnimi senzorji. TÜV-testirani testo 300 dolgotrajna naprava za analizo dimnih plinov se dostavlja z O2 in CO H2senzorjem, ki prepozna do 8.000 ppm (NO - možna vnovična nastavitev), TÜV-testirana modularna sonda za dimne pline, testo Bluetooth® konektor, kovček in praktična dodatna oprema.
Registracija izdelka
Z registracijo svojega izdelka vam podaljšamo običajno garancijo proizvajalca za leto dni.
Opis
Obseg dobave
- testo 300 LL dolgotrajna naprava za analizo dimnih plinov z O2 in CO H2 senzorjem, ki prepozna do 30.000 delčkov v minuti, NO - možna vnovična nastavitev (0633 3004 83)
- USB enot, vključno s kablom (0554 1106)
- Modularna sonda za dimne pline, 180 mm, Ø 8 mm, Tmax 500°C; TÜV-testirano; 2.2 m črevo (0600 9760)
- testo Bluetooth® konektor (0554 3004)
- Rezervni filtri proti umazaniji za modularno sondo za dimne pline; 10 off (0554 3385)
- Brezplačen prenos EasyHeat računalniška programska oprema (0554 3332)
- Kovček za instrument (višina: 130 mm) za instrument, sonde in dodatno opremo (0516 3300)
Podrobnosti o sestavnih delih kompleta
Podrobnosti o sestavnih delih kompleta
Številka izdelka: 0633 3004 73
Podrobnosti o sestavnih delih kompleta
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Številka izdelka: 0600 9760
Podrobnosti o sestavnih delih kompleta
Spare dirt filters - for probe handle (10 off)
Številka izdelka: 0554 3385
Tehnični podatki
Temperature - TC Type K (NiCr-Ni)
| Measuring range | −40 to +1200 °C |
|---|---|
| Accuracy | ±0,5 % of mv (Remaining Range) ±0,5 °C (0,0 to +100,0 °C) |
| Resolution | 0,1 °C (−40 to +999,9 °C) 1 °C (Remaining Range) |
Differential Pressure - Piezoresistive
| Measuring range | −100 to +200 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (+100,1 to +200 hPa) ±0,5 hPa (0 to +50,0 hPa) ±1 % of mv (+50,1 to +100,0 hPa) |
| Resolution | 0,01 hPa |
Flue gas O₂
| Measuring range | 0 to 21 Vol.% |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Flue gas CO (with H₂-compensation)
| Measuring range | 0 to 8000 ppm |
|---|---|
| Accuracy | ±10 ppm or ±10 % of mv (0 to 200 ppm) ±10 % of mv (2001 to 8000 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) |
| Resolution | 1 ppm |
Flue gas COlow (with H₂-compensation)
| Measuring range | 0 to 500 ppm |
|---|---|
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0,1 ppm |
Flue gas NO
| Measuring range | 0 to 3000 ppm |
|---|---|
| Accuracy | ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) |
| Resolution | 1 ppm |
Flue gas Nolow
| Measuring range | 0 to 300 ppm |
|---|---|
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39,9 ppm) |
| Resolution | 0,1 ppm |
Differential Pressure flue gas Draught - Piezoresistive
| Measuring range | −9,99 to +40 hPa |
|---|---|
| Accuracy | ±1,5 % of mv (3,01 to +40 hPa) ±0,02 hPa (+0,1 to +3,00 hPa) ±0,005 hPa (+0 to +0,1 hPa) |
| Resolution | 0,001 hPa (0 to 0,1 hPa) 0,01 hPa (Remaining Range) |
Flue gas degree of effectivity, Eta (calculated)
| Measuring range | 0 to 120 % |
|---|---|
| Resolution | 0,1 % |
Flue gas loss (calculated)
| Measuring range | 0 to 99,9 % |
|---|---|
| Resolution | 0,1 % |
Flue gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
|---|---|
| Accuracy | ±0,2 Vol.% |
| Resolution | 0,1 Vol.% |
Ambient CO
| Measuring range | 0 to 2000 ppm |
|---|---|
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
General technical data
| Operating humidity | 15 to 90 %RH non-condensing |
|---|---|
| Weight | approximately 800 g |
| Dimensions | 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | −5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; Thermocouple 12 months; rechargeable battery: 12 months |
| Memory | 1.000.000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | −20 to +50 °C |
| Charging temperature | 0 to +45 °C |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring Range | -50 to +50 Pa |
|---|---|
| Accuracy | ±3 % of mv (Remaining Range) ±0,3 Pa (< 10 Pa) |
| Resolution | 0,1 Pa |
General technical data
| Diameter probe shaft | 8 mm |
|---|---|
| Cable length | 2,2 m |
| Length probe shaft | 180 mm |
| Product colour | Black |
| Temperature maximum | 500 °C |
| Diameter | 6 mm |
| Weight | 524 g |
General technical data
| Weight | 12 g |
|---|---|
| Dimensions | height: 2,9 mm, ø: 29,7 mm |
| Product colour | white |
General technical data
| System requirements | Windows® 7; Windows® 8; Windows® 10 |
|---|---|
General technical data
| Weight | 3880 g |
|---|---|
| Dimensions | 520 x 400 x 130 mm (LxWxH) |
| Product-/housing material | Plastic |
| Product colour | Black |
General technical data
| Battery life | None, operated via testo 300 |
|---|---|
| Connection | TUC 1 or TUC 2 |
| Radio range | 100 m |
| compatible with | testo 510i, testo 115i, testo 915i |
Senzor
CO probes
CO probes
CO probe (digital), wired: for measuring carbon monoxide in indoor areas (e.g. boiler rooms) – measuring range 0 to 500 ppm
Številka izdelka:
0632 1272
0632 1272
€ 379,00z DDV € 462,38
Flue gas probes
Flue gas probes
TÜV-tested modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Številka izdelka:
0600 9760
0600 9760
€ 263,00z DDV € 320,86
Flue gas probes
TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
Številka izdelka:
0600 9761
0600 9761
€ 270,00z DDV € 329,40
Flue gas probes
Modular flue gas probe with 180 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
Številka izdelka:
0600 9762
0600 9762
€ 262,00z DDV € 319,64
Further probes
Further probes
Dual wall clearance probe for O2 supply air measurement
Številka izdelka:
0632 1260
0632 1260
€ 153,00z DDV € 186,66
Further probes
Solid fuel kit - including probe shaft and adapter
Številka izdelka:
0600 9765
0600 9765
€ 438,00z DDV € 534,36
Temperature probes
Temperature probes
Clamp probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 6-35 mm) – measuring range -40 to +125 °C
Številka izdelka:
0615 5505
0615 5505
€ 56,00z DDV € 68,32
Temperature probes
Pipe wrap probe (NTC temperature sensor) for measuring the surface temperature of pipes (Ø 5-65 mm) – measuring range -60 to +130 °C
Številka izdelka:
0615 5605
0615 5605
€ 201,00z DDV € 245,22
Temperature probes
Waterproof immersion/penetration probe (NTC temperature sensor) for temperature measurements in liquids and semi-solid media – measuring range -50 to +150 °C, accuracy ±0.2 °C (-25 to +74.9 °C)
Številka izdelka:
0615 1212
0615 1212
€ 81,00z DDV € 98,82
Kompleti
Sets
Sets
testo 300 Longlife kit 3 with printer: Flue gas analyzer (O2, CO H2-compensated up to 8,000 ppm, NO - can be retrofitted)
Številka izdelka:
0564 3004 73
0564 3004 73
€ 2.068,00z DDV € 2.522,96
Sets
testo 300 dolgotrajni komplet 3: Naprava za analizo dimnih plinov (O2, CO H2do 8,000 ppm, NO - možna vnovična nastavitev)
Številka izdelka:
0564 3004 72
0564 3004 72
€ 1.774,00z DDV € 2.164,28
Dodatki
Accessories
Accessories
Smoke tester with oil and soot sheet, for measuring soot in flue gas
Številka izdelka:
0554 0307
0554 0307
€ 127,00z DDV € 154,94
Accessories
Free download: testo EasyHeat PC software
Številka izdelka:
0554 3332
0554 3332
Accessories
Instrument case (height: 130 mm) - for instrument, probes and accessories
Številka izdelka:
0516 3300
0516 3300
€ 88,00z DDV € 107,36
Measurement cells
Measurement cells
CO sensor (without H2 compensation) with 4-year warranty
Številka izdelka:
0393 0051
0393 0051
Measurement cells
CO sensor, (H2-compensated) with 4-year warranty
Številka izdelka:
0393 0101
0393 0101
Measurement cells
NO sensor
Številka izdelka:
0393 0151
0393 0151
Aplikacije
Merjenje dimnih plinov na ogrevalnih sistemih
Popolno orodje za merjenja, ki vključujejo ogrevalne sisteme:
- visokokakovostni dolgotrajni senzorji z delovno dobo do 6 let, upravljanje preko zaslona občutljivega na dotik, jasno strukturirani merilni meniji, izdelava dokumentacije na licu mesta, pošiljanje poročil po e-pošti, veliki HD zaslon, robustno ohišje
Nadaljnja področja uporabe:
- merjenje tlaka pretoka plina*, preizkušanje plinovoda*, diferenčno merjenje temperature (Temperatura pretoka in povratnega toka v ogrevalnih sistemih)*, merjenje CO v okolici*, merjenje dimovoda na ogrevalnih sistemih*
* Imejte v mislih: Za ta merjenja so potrebni dodatna sonda ali pripomočki, ki se morajo naročiti posebej.
Prenosi
Brošure o izdelkih
- Product brochure testo 300(pdf, 9.16 MB)
- Product brochure testo 300 Industry(pdf, 22.66 MB)
- Data sheet testo 300(pdf, 3.28 MB)
- Data sheet testo Bluetooth Connector(pdf, 2.32 MB)
Navodila za uporabo
- EU declaration of conformity testo 300 Longlife(pdf, 34.43 kB)
- Instruction manual testo 300(pdf, 3.42 MB)
- Approval and Certification testo 300(pdf, 223.68 kB)
- Testo Information Safety. Environment. Cleaning. Storage(pdf, 178.65 kB)
- EU declaration of conformity testo Bluetooth Connector(pdf, 53.23 kB)
Programska oprema
- Testo ZIV driver for testo 300, testo 320 and testo 330(v2.3, 64.11 MB)The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
- Firmware / App testo 300(FW 1.10.8289, BTG 0.3.8, APP 12.7.24.18489, 43.94 MB)
- testo usb driver - for various measuring instruments(v2.9.1, 2.02 MB)USB driver for the following devices with USB port: * USB Interface testo 174 / 177 - T + H * testo 300 / 320 / 330 / 330i / 335 / 340 / 350 * testo 435 * testo 556 / 560 / 570 / 580 * testo 635 * testo 735 * testo 845
- Instruction manual EasyHeat software(pdf, 3.55 MB)
