    高效,坚固NTC空气探头

    0613 1712
  1. NTC temperature sensor
  2. High level of accuracy of up to ±0.2 °C
  3. Short response time thanks to the exposed sensor
  4. Measuring range: -50 to +125 °C
  5. 高效,坚固NTC空气探头

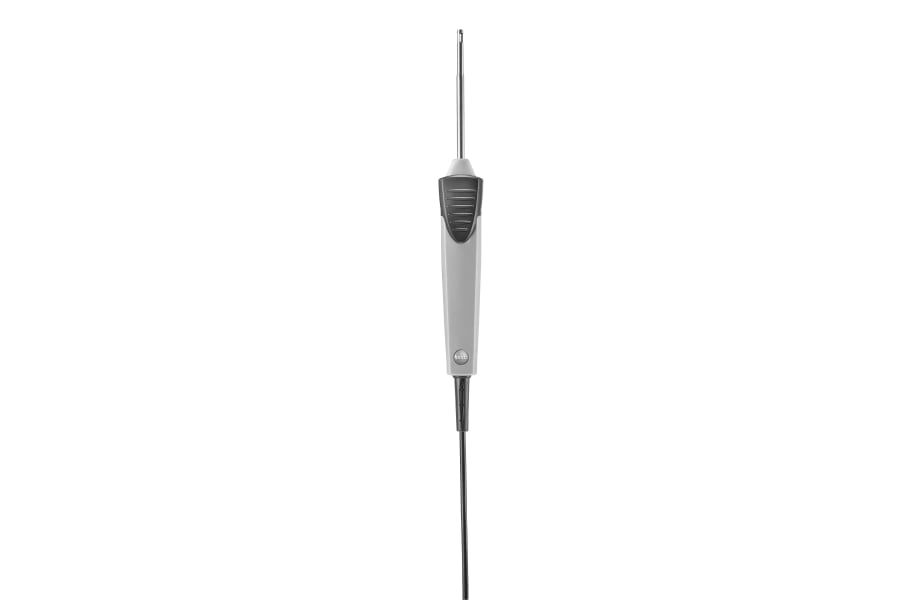

    Fast, robust and easy to use: simply hold the air temperature probe in the environment being measured – and, thanks to the exposed sensor in the probe shaft, you will obtain the air temperature value after only a short response time. The measurement result can be optimized by moving the probe through the air at approx. 1.5 m/s.

    Robust air temperature probe (NTC) with fixed cable 1.2 m.

    NTC

    測量範圍
    -50 ~ +125 °C ²⁾
    測量精度
    ±0.4 °C (其餘量程)
    ±0.2 °C (-25 ~ +80 °C)
    响應時間 t₉₀
    60 s
    1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes)

    技術參數

    重量
    104 g
    直徑
    1250 mm
    探針套管末端長度
    50 mm
    探頭杆直徑
    5 mm
    探頭頭部直徑
    4 mm
    電纜長度
    1.1 m
    固定電纜
    外殼
    ABS / TPE / PUR
    探針套管長度
    115 mm
    Product colour
    grey; Black; silver

    標定證書

  6. 標定證書
    Calibration certificate
    ISO标定证书/温度
      :
      0520 0001
    • 標定證書
      Calibration certificate
      ISO标定证书/温度
        :
        0520 0181
      • 標定證書
        Calibration certificate
        DKD标定证书/温度
          :
          0520 0211
