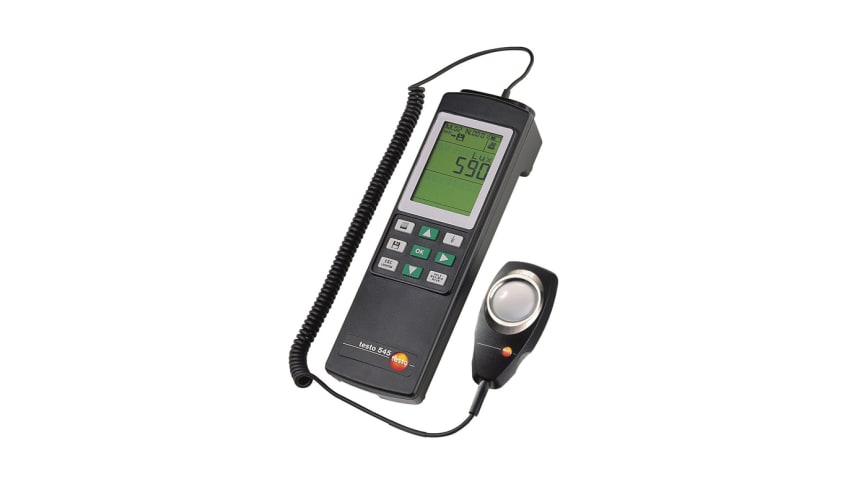

    testo 545 - Light meter

    0560 0545
  1. 仪器内部储存多达99组数据
  2. 记录功能(3000个读数)
  3. 通过testo打印机现场打印数据
  4. Measuring site management with optional software: up to 99 measuring sites available
  5. The testo 545 light meter allows you to measure the light intensity at the workplace quickly and easily – and to save the readings for future documentation and analysis.

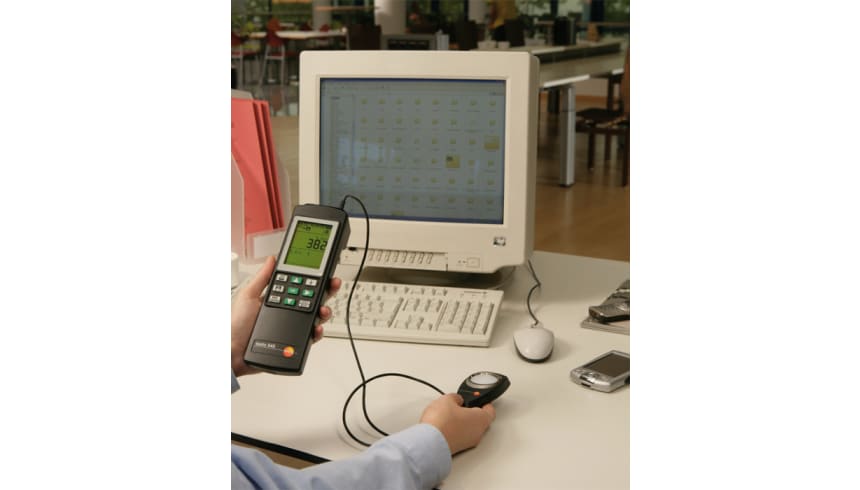

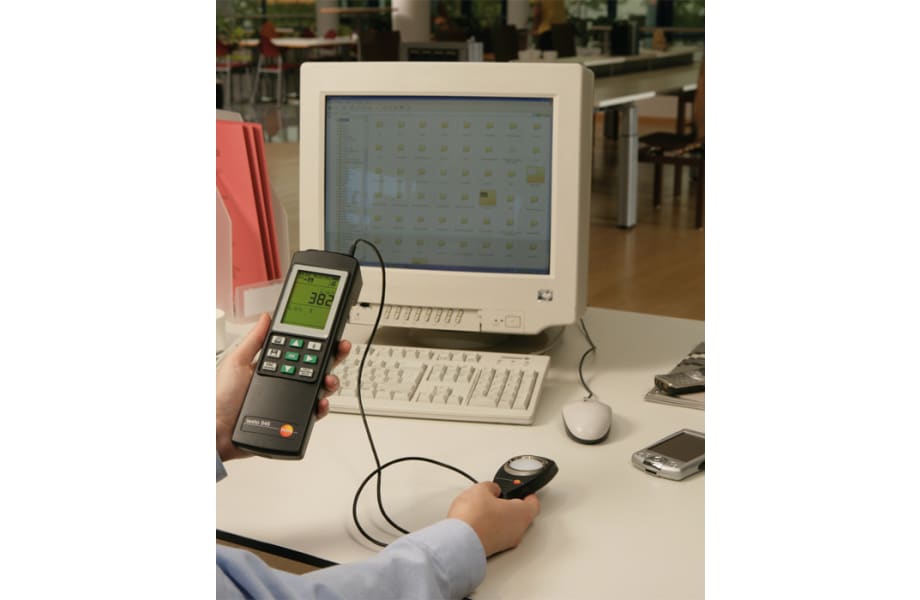

    The testo 545 lux meter for natural and artificial light comes with a permanently attached light sensor that allows you to measure the light intensity in the workplace, offices, schools and hospitals both quickly and reliably. White or warm light LEDs (K< 5,000) can be measured without any problem. The optional software can be used to compile a light profile from the light intensity readings.

    At-a-glance look at the benefits of the testo 545 light meter

    The testo 545 lux meter can be used to carry out selective as well as long-term light intensity measurements. It has a built-in data logger which can save up to 3 000 readings and can be used to perform both selective and time-based averaging. The optional testo turbo printer also allows you to print out measuring data while you are on site.
    The optional PC software allows you to set up up to 99 measuring sites, allocate the readings to the relevant measuring sites and connect individually saved readings to form a curve. The light profile obtained from such data provides you with a picture of the uniformity of the lighting.

    testo 545 light meter with permanently attached sensor, calibration certificate, batteries.

    技術參數

    重量
    500 g
    直徑
    220 x 68 x 50 mm
    操作溫度
    0 ~ +50 °C
    外殼
    ABS
    電池類型
    9V 電池
    電池使用時間
    50 h
    連接
    Fixed cable, coiled
    顯示幕類型
    LCD (Liquid Crystal Display)
    顯示幕尺寸
    2行
    資料傳送
    RS232 介面,用於連接PC與儀器 (1.8 m)
    存儲量
    3,000 個測量值
    存放溫度
    -20 ~ +70 °C

    光照度-矽光電二極體

    測量範圍
    0 ~ 100000 Lux
    測量精度
    等級 C,根據DIN 5032 - 7
    F2 = 5 % cos like rating
    Accuracy to DIN 13032-1:
    F1 = 6 % V (Lambda) adaptation
    解析度
    1 Lux (0 ~ 32000 Lux)
    10 Lux (0 ~ 100000 Lux)

    運輸和保護

  6. 運輸和保護
    Case for secure storage of measuring instrument
    仪器盒
      :
      0516 0191
    • 附件

    • 附件
      9V rech. battery for instrument
      仪器用9V充电电池
        :
        0515 0025
