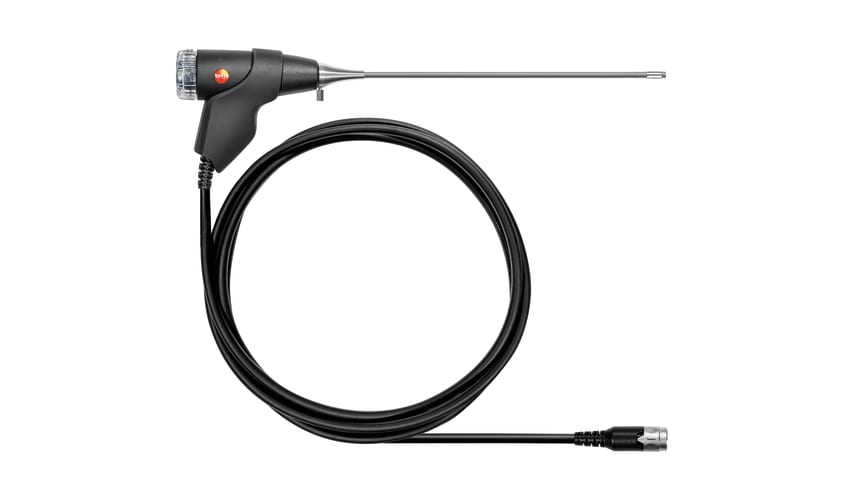

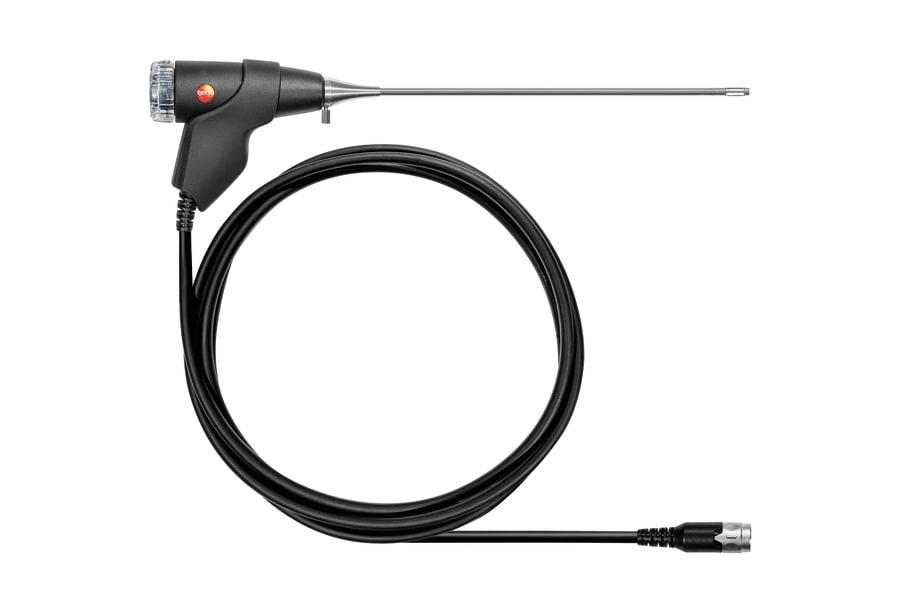

    Compact basic flue gas probe - 300 mm, Ø 6 mm, Tmax 500 °C

    0600 9741
  1. Flue gas path, draught path and temperature probe can be connected via a single probe coupling
  2. Easy-to-replace dirt filter
  3. Temperatures of up to 500 °C can be measured thanks to the thermocouple probe
  4. Includes practical cone for attachment
  5. Compact flue gas probe with 300 mm long probe shaft including particle filter and thermocouple. Bayonet lock ensures quick, easy connection to the measuring instrument.
    The compact flue gas probe can be connected to the flue gas analyzer quickly and easily. Thanks to its bayonet lock, the flue gas path, draught path and temperature probe can be connected to the measuring instrument via a single probe coupling. On the probe handle there is a particle filter, which protects the gas paths of the measuring instrument from contamination and which can also be replaced easily without any tools. The flue gas probe measures temperatures of up to 500 °C and its immersion depth of 300 mm also makes it suitable for carrying out measurements on large combustion plants.

    Compact basic flue gas probe 300 mm including dirt filter, cone for attachment, thermocouple NiCr-Ni Tmax 500 °C and hose 1.5 m.

    General technical data

    Diameter probe shaft
    6 mm
    Cable length
    1.5 m
    Length probe shaft
    300 mm
    Product colour
    Black
    Temperature maximum
    500 °C
    Diameter
    6 mm
    Weight
    364 g
