    testo 320 - Super efficient flue gas analyzer

    Product no. 0632 3220
    testo 320
    testo 320
    testo 320 basic
    testo 320 basic
    testo 320 basic
    Make a request
    Your advantages
  1. Six applications, one device: flue gas, flue draft, pressure, gas leak detection, CO ambient air and pressure difference measurements

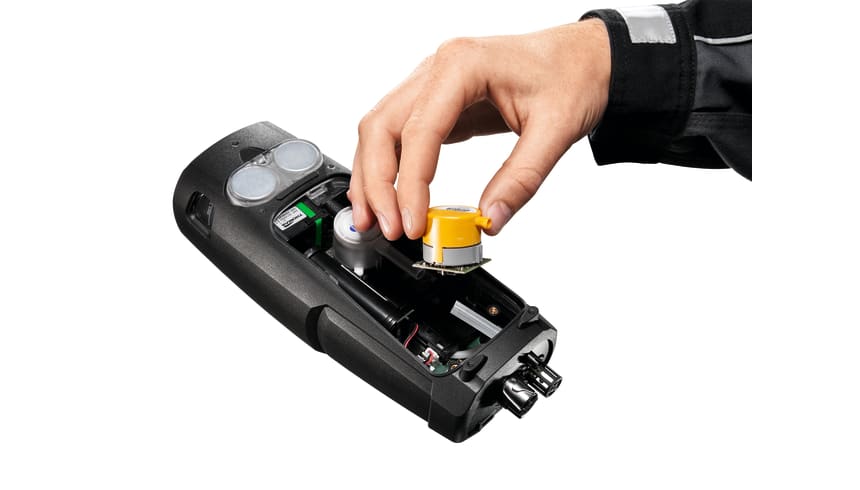

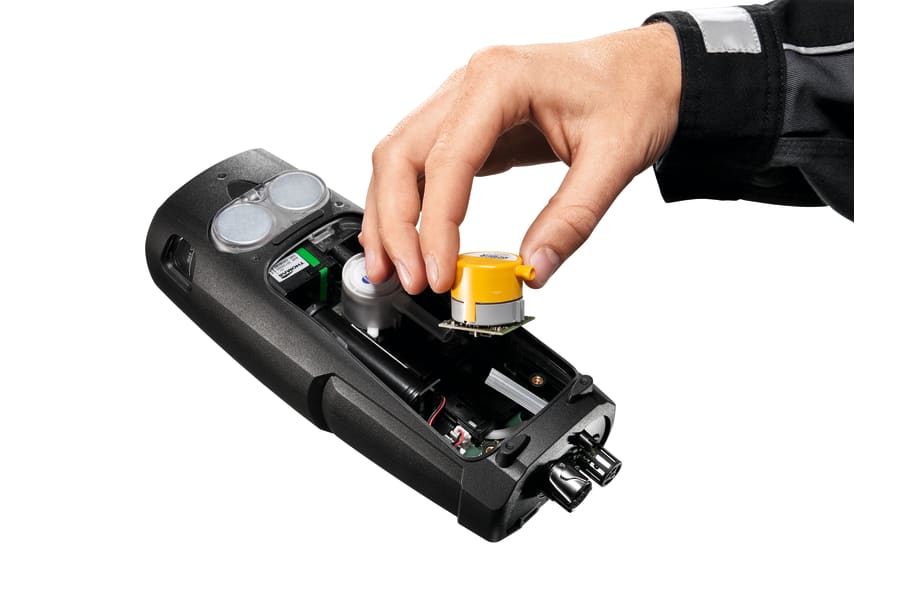

  2. Integrated flue gas sensors with temperature sensor included; ultra-fine pressure sensors and a wide range of other sensors, ports and probes optional
  3. Rugged, high-quality design, high-resolution, multi-color display, self-explanatory menu guide
  4. TÃœV-tested according to EN 50379, Parts 1-3 and 1st BImSchV
    5. Temperature measurements at radiators; flue gas parameter and pressure measurements at burners; CO measurements in the ambient air: the testo 320 allows you to carry out all measurements in and around heating systems with only one measuring device.

    Description

    The testo 320 flue gas analyzer is a trusty and reliable companion for all those people who specialise in installing, inspecting and servicing heating systems. The high-quality, professional all-rounder is easy to use and allows you to carry out all measurements in and around heating systems with only one device. The testo 320’s special rugged design means that it is excellently equipped to stand up to the rough and tumble of daily use.
    A set of easy-to-follow, self-explanatory, country-specific menus guide you safely through all the measurements. The readings are all presented graphically on a high-resolution, crisp color display for use in all lighting conditions. The user-friendly analyzer also has a memory for up to 500 readings.
    Moreover the flue gas analyzer is TÃœV-tested according to EN 50379, Parts 1-3 and 1st BImSchV.


    The testo 320 flue gas analyzer – facts and features

    The testo 320 flue analyzer comes with one sensor for O2 and additionally you can order a CO sensor (separate product). The flue gas analyzer then calculates the relevant flue gas values, i.e. CO2 value, efficiency and flue gas loss.
    There is also wide range of optional sensors for you to choose from. These include multiple-hole, edge crack and flexible flue gas sensors as well as an ultra-fine flue gas pressure sensor which allows you to perform draft and gas pressure measurements parallel to the other measurements.


    Areas of application for the testo 320 flue gas analyzer

    Six applications. One device:
    • flue gas measurements
    • flue draft measurements
    • gas flow and static gas pressure
    • gas leak detection
    • CO ambient air measurements
    • temperature difference measurements
    Allows you to monitor and check heating environments, radiators and burners easily and reliably.

    Delivery Scope

    testo 320 flue gas analyzer, O2 sensor.

    Technical data

    General technical data

    Weight
    573 g
    Dimensions
    240 x 85 x 65 mm
    Operating temperature
    -5 to +45 °C
    Display size
    240 x 320 pixels
    Display function
    Colour graphic display
    Power supply
    Battery: 3.7 V / 2,400 mAh; Mains unit: 6 V / 1.2 A
    Maximum memory
    500 Measurement values
    Storage temperature
    -20 to +50 °C

    Flue gas CO (with Hâ‚‚-compensation)

    Measuring range
    0 to 8000 ppm
    Accuracy
    ±10 ppm or ±10 % of mv (0 to 200 ppm)
    ±10 % of mv (2001 to 8000 ppm)
    ±20 ppm or ±5 % of mv (201 to 2000 ppm)
    Resolution
    1 ppm
    Reaction time t₉₀
    < 40 s

    Flue gas COlow (with Hâ‚‚-compensation)

    Measuring range
    0 to 500 ppm
    Accuracy
    ±5 % of mv (40 to 500 ppm)
    ±2 ppm (0 to 39.9 ppm)
    Resolution
    0.1 ppm
    Reaction time t₉₀
    < 40 s

    Probe

    Accessories for probes

  5. Accessories for probes
    Hose extension
    Hose extension - probe-instrument extension hose (length 2.8 m)
      Product no.:
      0554 1202
    • Accessories for probes
      Hose connection set for separate gas pressure measurement
      Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
        Product no.:
        0554 1203
      • Accessories for probes
        Differenztemperatur-Set testo
        Differential temperature set consisting of 2 Velcro probes and temperature adaper testo 327
          Product no.:
          0554 1208

          • Combustion air / temperature

        • Combustion air / temperature
          Combustion air temperatur probe
          Combustion air temperature probe, immersion depth 60 mm
            Product no.:
            0600 9797
          • Combustion air / temperature
            Combustion air temperature probe
            Combustion air temperature probe with an immersion depth of 190 mm – measuring range: 0 to +100 °C
              Product no.:
              0600 9787

              • Probes

            • Probes
              flue gas probe
              Our flexible probe shaft helps you to carry out flue gas measurements even on difficult-to-access measurement apertures. Since the probe shaft is made of very flexible plastic, you can easily bend it, allowing it to be inserted into exhaust flues which are obstructed (e.g. by sloping ceilings).
                Product no.:
                0554 9770
              • Probes
                flue gas probe
                TÜV-tested modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500 °C and quick-change click system
                  Product no.:
                  0600 9761
                • Probes
                  0600-9763-flue-gas-probe-1
                  Modular flue gas probe with 300 mm long probe shaft, cone, integrated thermocouple up to 500°C and quick-change click system
                    Product no.:
                    0600 9763

                    • Temperature probes

                  • Temperature probes
                    Connection cable
                    Connection cable
                      Product no.:
                      0430 0143
                    • Temperature probes
                      Mini ambient air probe
                      Mini ambient air probe for flue gas analyzers – measuring range: 0 to +80 °C
                        Product no.:
                        0600 3692

                        • Accessories

                        Accessories for measuring instrument

                      • Accessories for measuring instrument
                        testo 320-330 case
                        Instrument case (height: 130 mm) - for instrument, probes and accessories
                          Product no.:
                          0516 3300
                        • Accessories for measuring instrument
                          Spare particle filter
                          Spare particle filter, compact probe; 10 off
                            Product no.:
                            0554 0040
                          • Accessories for measuring instrument
                            Smoke tester with oil, soot sheet, for measuring soot in flu...
                            Smoke tester with oil and soot sheet, for measuring soot in flue gas
                              Product no.:
                              0554 0307

                              • Downloads

                              Product brochures

                              Operating instructions

                              Software

                              • Instruction manual EasyHeat software(pdf, 3.55 MB)
                              • Download testo 320 firmware(V1.12, 12.77 MB)
                                If the firmware update does not start under Windows 8.1 or Windows 10, a new bootloader must be installed on the measuring device once.
                                A description and all necessary files can be found under the search term: Update-Kit / Bootloader
                              • Testo ZIV driver ZIV 2000 for testo 320 and testo 330(v2.1, 2.22 MB)
                                Testo ZIV driver in the 2000 version. The Testo ZIV driver is used to connect the testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface Version 2.0 defined by the Zentralverband des Schornsteinfegerhandwerks (Central Association of Chimney Sweeps, ZIV). Please check with the manufacturer of your application program as to whether this interface is supported. If Microsoft .NET Framework 4.0 has not been installed on the computer, it must be downloaded from the Microsoft website and installed on the system.
                              • Testo ZIV driver for testo 300, testo 320 and testo 330(v2.3, 64.11 MB)
                                The Testo ZIV driver is used to connect the testo 300, testo 320 and testo 330 measuring instruments to an application program (sweeping district administration program) according to the interface defined by the Zentralverband des Schornsteinfegerhandwerks (ZIV, Central Association of Chimney Sweeps) in version 1.0 of 01. August 2012, in version 2.0 of 13. February 2017 as well as version 3.0 from 02. July 2021. Please check with the manufacturer of your application program as to whether this interface is supported.
                              • testo 320 Bootloader(v1.18, 384.0 kB)
                              • Manual firmware testo 320(pdf, 47.3 kB)
                              • Manual for firmware-update(v1.06, pdf, 348.21 kB)
                              • Update-Kit / Bootloader(V1.22, 1.24 MB)
                                (testo 330 LL | testo 330i | testo 350 Control Unit + Analysis Box | testo 320)
                                If the firmware update does not start under Windows 8.1 or Windows 10, a new bootloader must be installed on the measuring device once.
