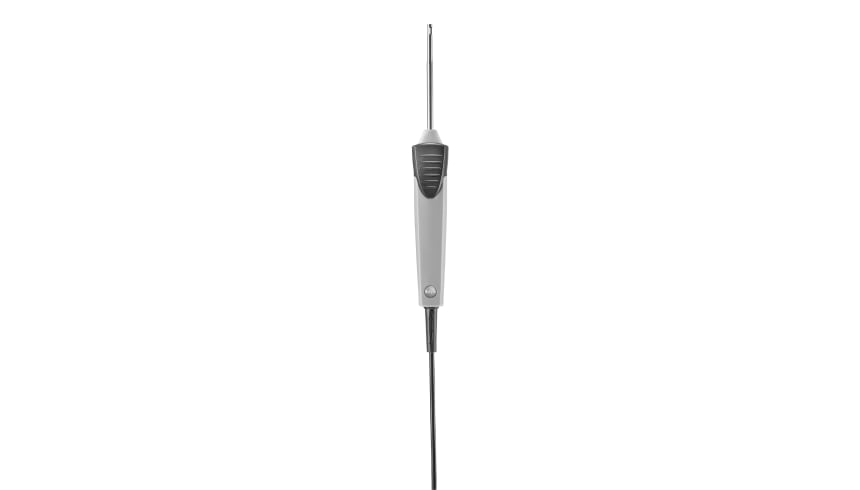

Robust air temperature probe (NTC)
0613 1712Robust air temperature probe (NTC)
0613 1712NTC temperature sensor
High level of accuracy of up to ±0.2 °C
Short response time thanks to the exposed sensor
Measuring range: -50 to +125 °C
Use the robust air temperature probe with exposed sensor (NTC) to measure air temperature with a short response time. It can be connected to a wide range of measuring instruments.
Robust air temperature probe (NTC) with fixed cable 1.2 m.
Temperature - NTC
| Measuring range | -50 to +125 °C ²⁾ |
|---|---|
| Accuracy | ±0.2 °C (-25 to +80 °C) ±0.4 °C (Remaining Range) |
| Reaction time | 60 s |
| 1) Long-term measurement range +125°C, short-term +150°C or +140°C (2 minutes) | |
General technical data
| Weight | 104 g |
|---|---|
| Dimensions | 1250 mm |
| Length probe shaft tip | 50 mm |
| Diameter probe shaft | 5 mm |
| Diameter probe shaft tip | 4 mm |
| Cable length | 1.1 m |
| Fixed cable | yes |
| Product-/housing material | ABS / TPE / PUR |
| Length probe shaft | 115 mm |
| Product colour | grey; Black; silver |
