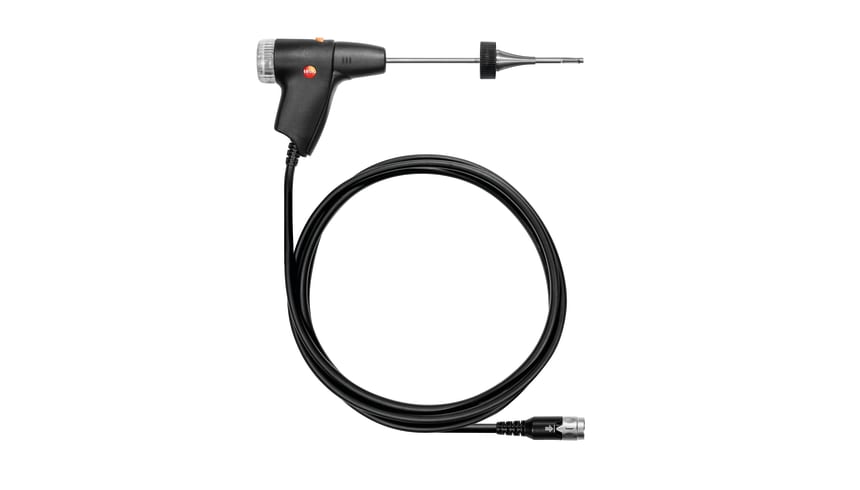

    Modular flue gas probe, 180 mm, Ø 8 mm, Tmax 500 °C, TÜV-tested

    0600 9760
    AED 1,192.35
  1. Easy probe shaft replacement via quick-change click system
  2. Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
  3. Integrated dirt filter protects instrument and sensors
  4. Integrated thermocouple probe for temperature measurements up to 500 °C
    5. TÜV-tested modular flue gas probe with 180 mm long probe shaft including dirt filter and thermocouple. The quick-change click system enables quick, flexible replacement of the probe shaft.
    On the TÜV-tested modular flue gas probe with 180 mm long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500 °C. In addition, a dirt filter protects the instrument and its sensors from contamination.

    Modular flue gas probe 180 mm including dirt filter, cone for attachment, thermocouple NiCr-Ni Tmax 500 °C and hose 2.2 m.

    General technical data

    Diameter probe shaft
    8 mm
    Cable length
    2.2 m
    Length probe shaft
    180 mm
    Product colour
    Black
    Temperature maximum
    500 °C
    Diameter
    6 mm
    Weight
    524 g
