    Refrigerant valve with Bluetooth - for digital refrigerant scale testo 560i

    Product no. 0560 5600

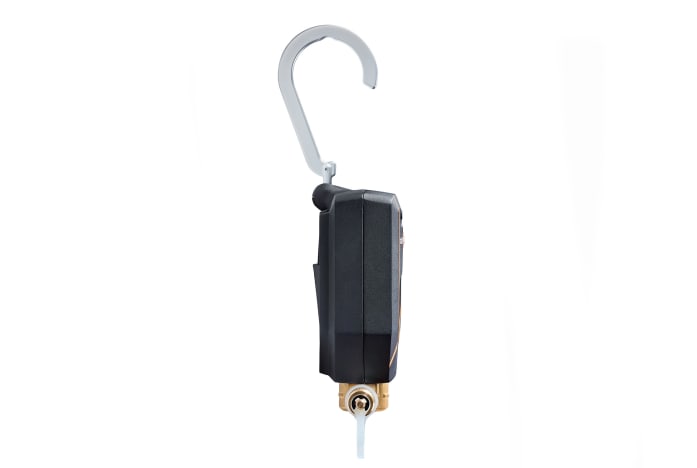

    testo refrigerant valve

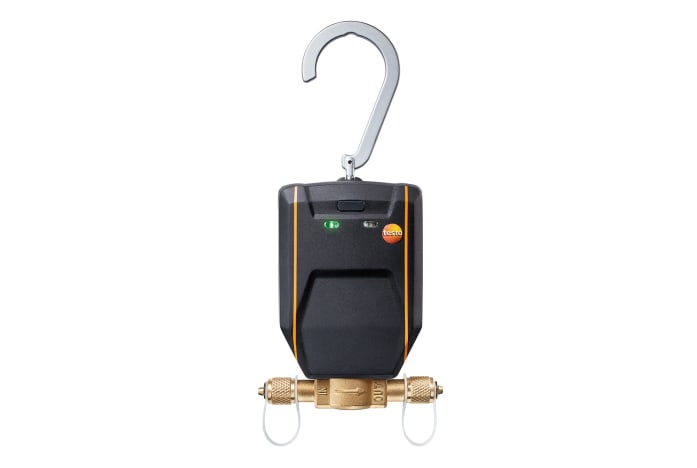

    testo refrigerant valve

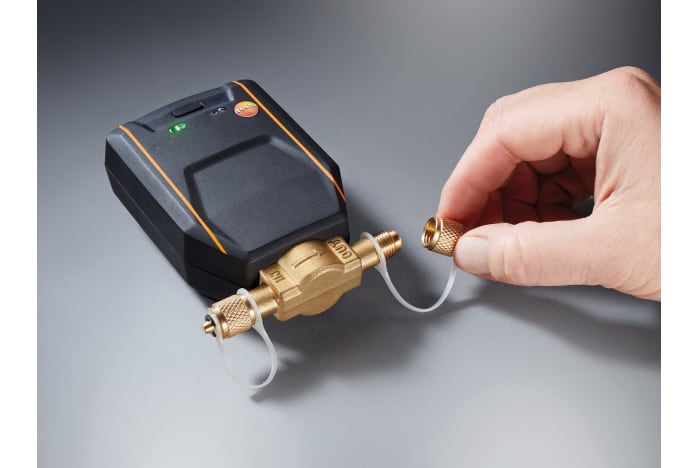

    testo refrigerant valve
    testo refrigerant valve

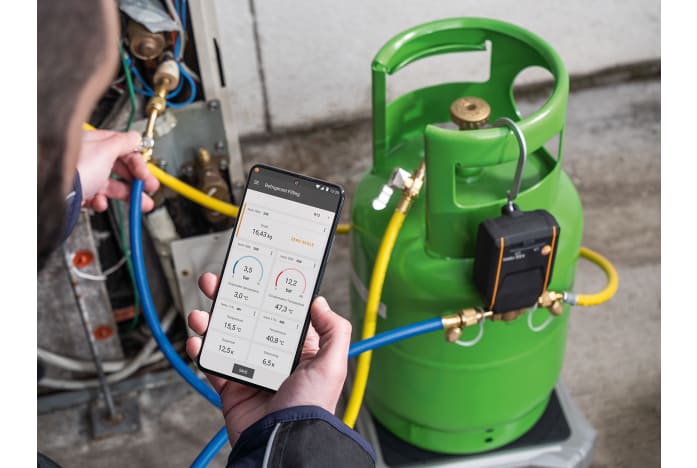

    application testo 560i
    testo 560i
    testo 560i
    Your advantages
  1. Automatic and precise refrigerant charging according to target superheat, subcooling and weight in combination with the digital refrigerant scale testo 560i (available separately or as a kit)
  2. Wireless connection and operation with Testo manifolds and testo Smart App via Bluetooth®.
  3. All measured values for the charging process at a glance in the manifold and App – with storage of the measured data in the App
  4. Robust, handy and compact
  5. Charge refrigeration systems and heat pumps faster and more precisely: automatically with the testo 560i wireless refrigerant scale, the intelligent refrigerant valve, a digital manifold from Testo and the testo Smart App. So opt for the practical kit consisting of refrigerant valve and refrigerant scale testo 560i right away - and benefit from time savings and maximum precision.

    Description

    Fully automatic and precise charging of refrigeration systems and heat pumps: The intelligent refrigerant valve makes it possible - together with the separately available testo 560i refrigerant scale, a Testo manifold, Testo Smart Probes and the testo Smart App.

    • Intelligent Bluetooth valve for digital refrigerant scale testo 560i (available separately or as a kit) for automatic and precise refrigerant charging of refrigeration systems/heat pumps.
    • Easy operation via Testo manifold or testo Smart App with automatic charging programs according to target value superheat, subcooling or refrigerant weight.
    • Flexible in confined environments: Valve and scale automatically connect via Bluetooth to the manifold and App on your smartphone/tablet.
    • All measured values for the charging process at a glance in the manifold and App with storage of the measured data in the App.
    • Compatible with testo 560i, manifolds testo 557s/550s/550i as well as testo 557 /550, Smart Probes testo 115i/549 i/605i and testo Smart App for Android and iOS.

    Advantages of the refrigerant valve

    • Especially robust thanks to IP54
    • High Bluetooth range of up to 150 m together with a Testo manifold (alone up to 50 m).
    • Long battery life of over 60 hours and replaceable 9 V block battery.

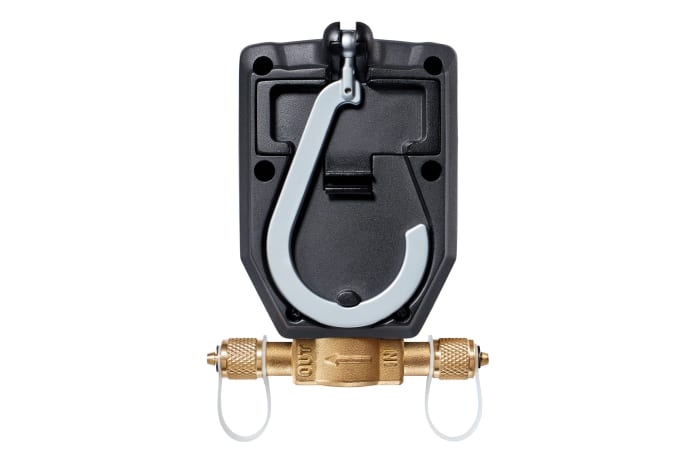

    • Very practical due to sturdy hook.

    Delivery Scope

    • Refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
    • 1 x 9V (6LR61) battery
    • Instruction manual

    Related Products

  6. testo 550s - Heat pump entry-level kit
      Product no.:
      0564 5000
      AED 4,232.30
    • testo 557s - Heat pump all-purpose kit
        Product no.:
        0564 5001
        AED 4,739.44
      • testo 558s heat pump professional kit
        testo 558s heat pump professional kit
          Product no.:
          0564 5010
          AED 5,297.29
        • Technical data

          General technical data

          Operating humidity
          0 to 80 %RH
          Weight
          570 g (incl. batteries)
          Dimensions
          95 x 119 x 47 mm (LxWxH)
          Operating temperature
          -10 to +50 °C
          Protection class
          IP54
          Product colour
          black/orange; silver
          Maximum working pressure
          35 bar
          Battery type
          9 V (6LR61)
          Battery life
          >60 hrs + 3000 valve operations
          Interface
          Bluetooth® 4.2
          Radio range
          50 m
          Storage temperature
          -10 to +50 °C
